MLX90609
Angular Rate Sensor (Standard version)
390109060901
Page 19 of 22
Data Sheet
Rev 008
February/08
9. Package Information
The MLX90609 is packaged in a 32 pin JESD30C compliant Ceramic Quad Flat None leaded -
CQFN32 -ceramic housing. The CQFN32 is commonly called CLCC32 or LCCC32.
Note: All dimensions are given in mm (inch).

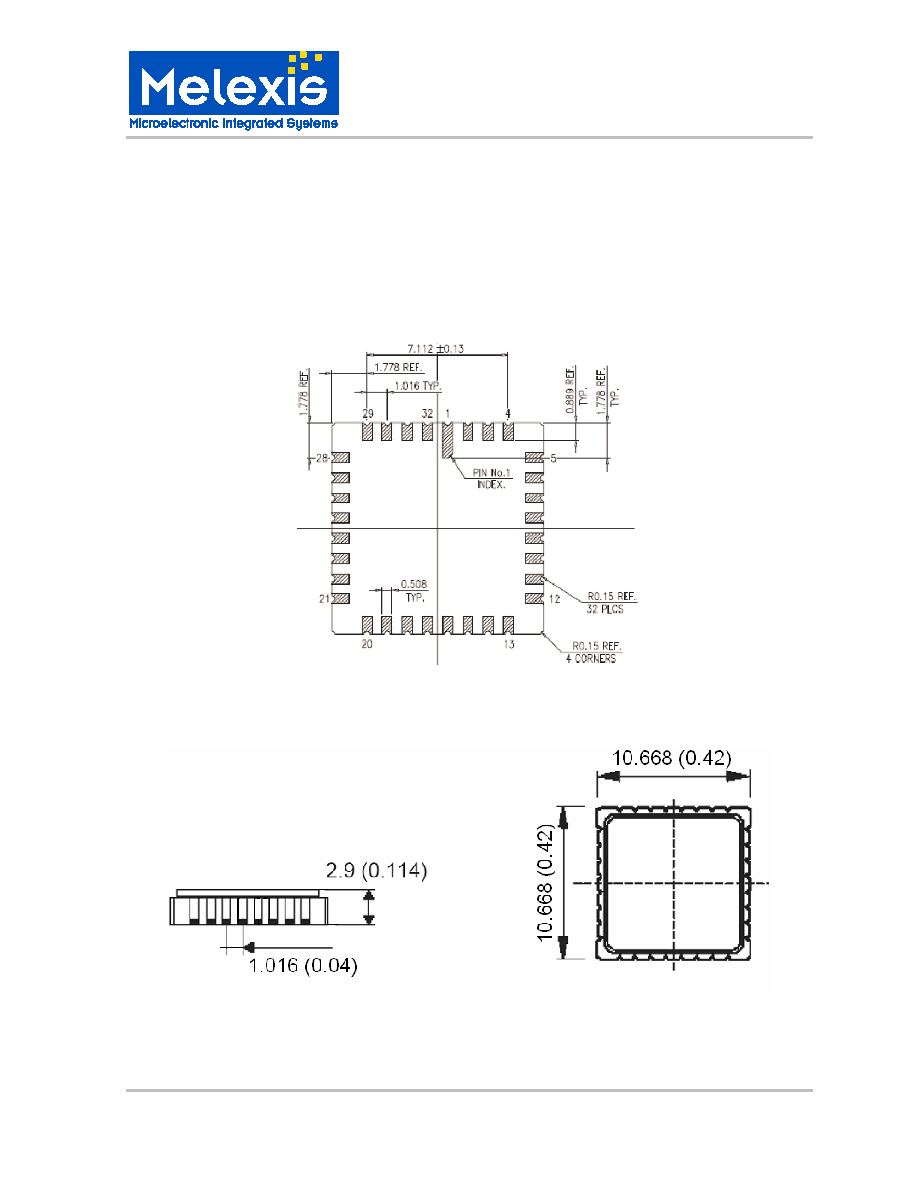

Figure 9-1. Package Dimensions, Bottom View
Figure 9-2. Side and Top View of the MLX90609
