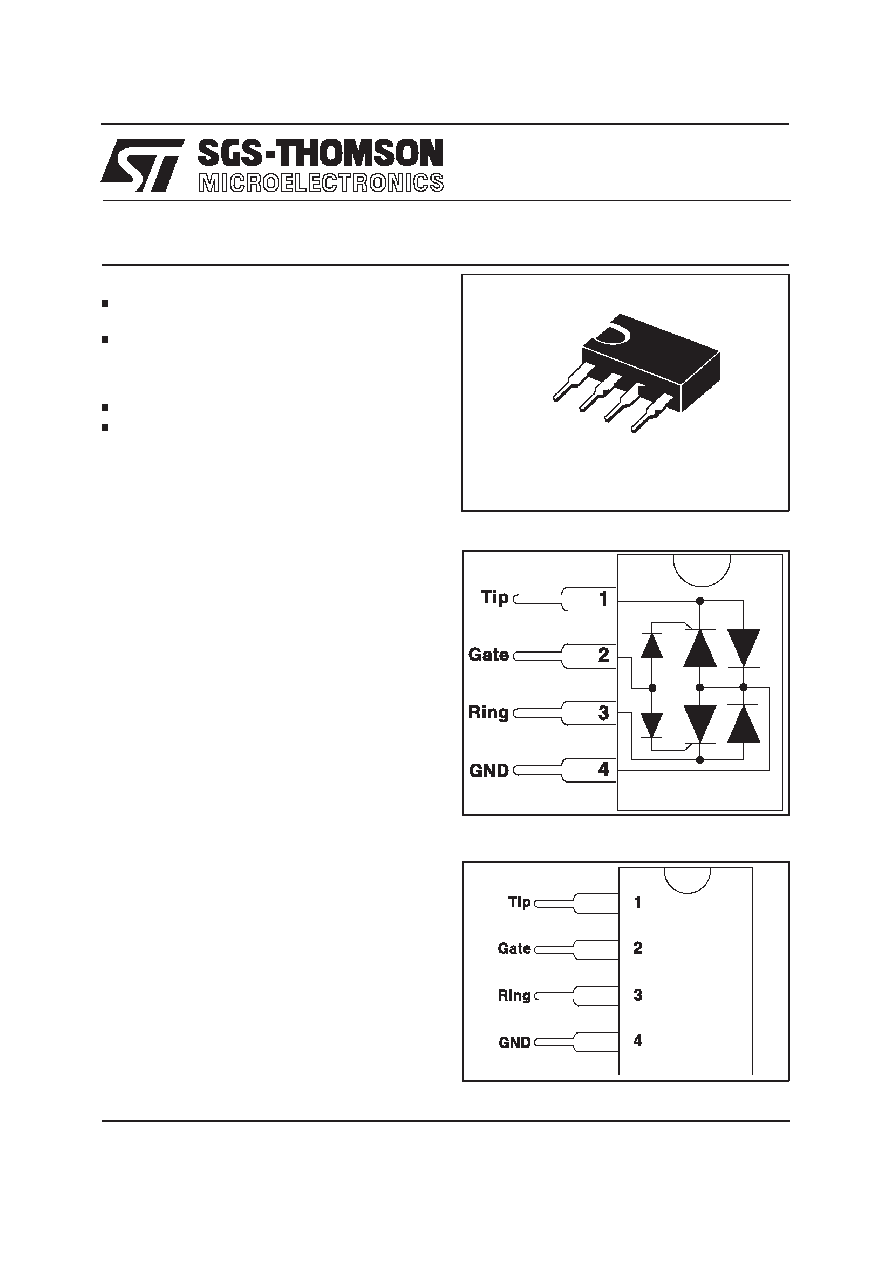

LCP150S

®

PROGRAMMABLE TRANSIENT VOLTAGE

SUPPRESSOR FOR SLIC PROTECTION

Application Specific Discretes

A.S.D.

™

February 1998 - Ed: 3

DUAL PROGRAMMABLE TRANSIENT

SUPPRESSOR

HIGH SURGE CURRENT CAPABILITY.

µs.

µs.

HOLDING CURRENT = 150 mA min.

LOW GATE TRIGGERING CURRENT :

FEATURES

This device has been especially designed to

protect a subscriber line card interface (SLIC)

against transient overvoltage.

Positive overloads are clipped with two diodes,

while negative surges are suppressed by two

protection thyristors, their breakdown voltage

being is referenced to the -Vbat.

This component presents a very low gate

current consumption on the PC board during the

firing phase.

DESCRIPTION

CONNECTION DIAGRAM

SIP 4

CCITT - K20

10/700

µs

1kV

5/310

µs

25A

VDE 0433

10/700

µs

2kV

5/200

µs

50A

VDE 0878

1.2/50

µs

1.5kV

1/20

µs

40A

FCC part 68

2/10

µs

2.5kV

2/10

µs

150A(*)

BELLCORE

TR-NWT-001089 : 2/10

µs

2.5kV

2/10

µs

150A(*)

10/1000

µs

1kV

10/1000

µs

50A(*)

CNET

0.5/700

µs

1kV

0.2/310

µs

25A

(*) with series resistors or PTC.

COMPLIES WITH THE FOLLOWING STANDARDS:

SCHEMATIC DIAGRAM

TM: ASD is trademarks of SGS-THOMSON Microelectronics.

1/6
