M54HC280 Datasheet(PDF) 2 Page - STMicroelectronics

Part # M54HC280
Description  9 BIT PARITY GENERATOR
PDF  10 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  STMICROELECTRONICS [STMicroelectronics]
Direct Link  http://www.st.com
Logo STMICROELECTRONICS - STMicroelectronics

M54HC280 Datasheet(HTML) 2 Page - STMicroelectronics

  M54HC280 Datasheet HTML 1Page - STMicroelectronics M54HC280 Datasheet HTML 2Page - STMicroelectronics M54HC280 Datasheet HTML 3Page - STMicroelectronics M54HC280 Datasheet HTML 4Page - STMicroelectronics M54HC280 Datasheet HTML 5Page - STMicroelectronics M54HC280 Datasheet HTML 6Page - STMicroelectronics M54HC280 Datasheet HTML 7Page - STMicroelectronics M54HC280 Datasheet HTML 8Page - STMicroelectronics M54HC280 Datasheet HTML 9Page - STMicroelectronics Next Button
Zoom Inzoom in Zoom Outzoom out

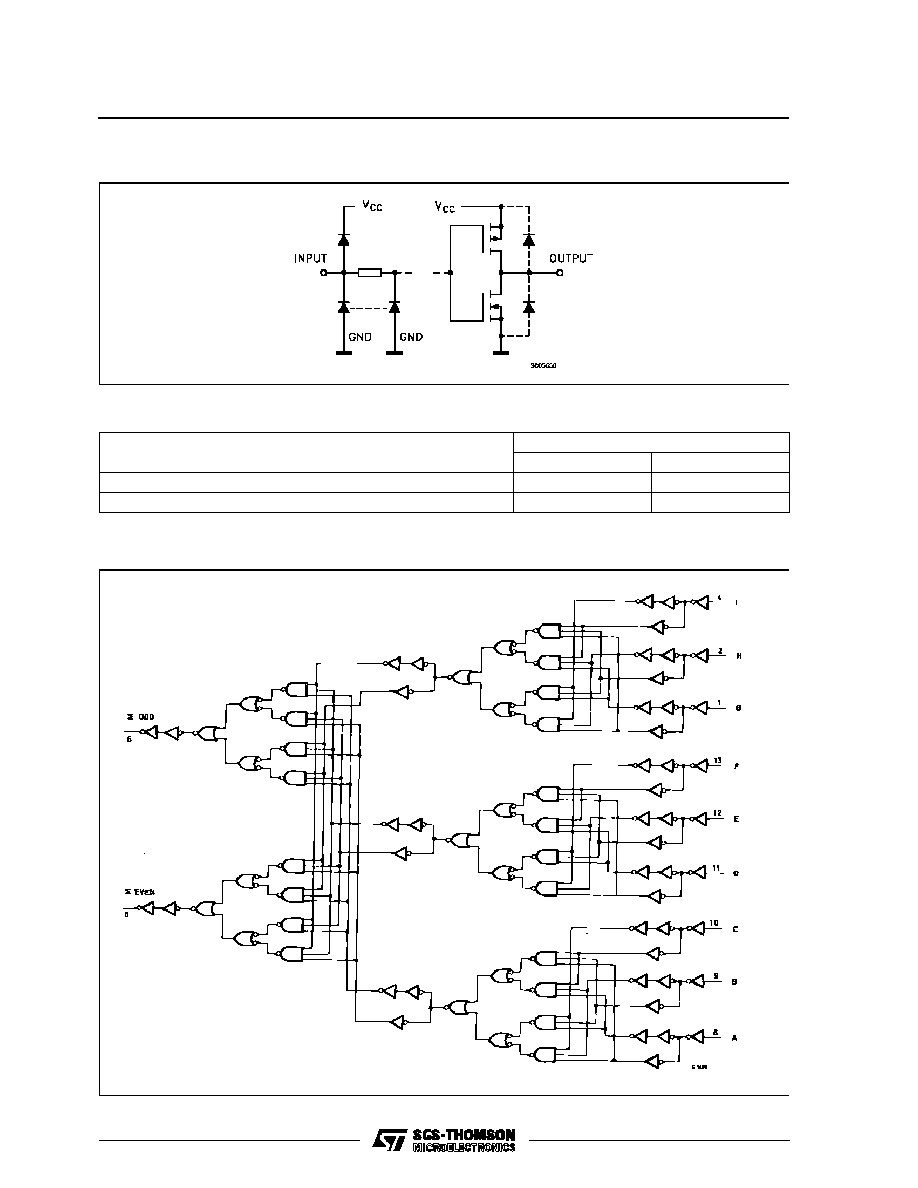

 2 / 10 page
background image
INPUT AND OUTPUT EQUIVALENT CIRCUIT
TRUTH TABLE
NUMBER OF INPUTS A THRU I THAT ARE HIGH
OUTPUT
Σ EVEN
Σ ODD
0, 2, 4, 6, 8
H
L
1, 3, 5, 7, 9
L
H
LOGIC DIAGRAM
M54/M74HC280
2/10
