INTRODUCTION

This is a standard LED Current Meter 50A. The biggest feature is that the LED

Current Meter have reversed connection protection to prevent from being

burnted out. It measures 0-50A with 2% error. Best suitable for current display

in the circuit. Just apply four wires without any extra circuit or components,

you will get the readings displayed straight away. Easy to use, and good

company with robot applications. It has two color LED display to select,

green/red.

Warnings: Please carefully follow the instructions for wiring. The power

supply terminal and measurement terminal of this Current Meter are using the

same common-ground connect. So, the measurement terminal of current

meter must be cascaded after load. The measurement terminal must be link

to the ground side, Do NOT link it to positive side, it will damage the meter

permently.

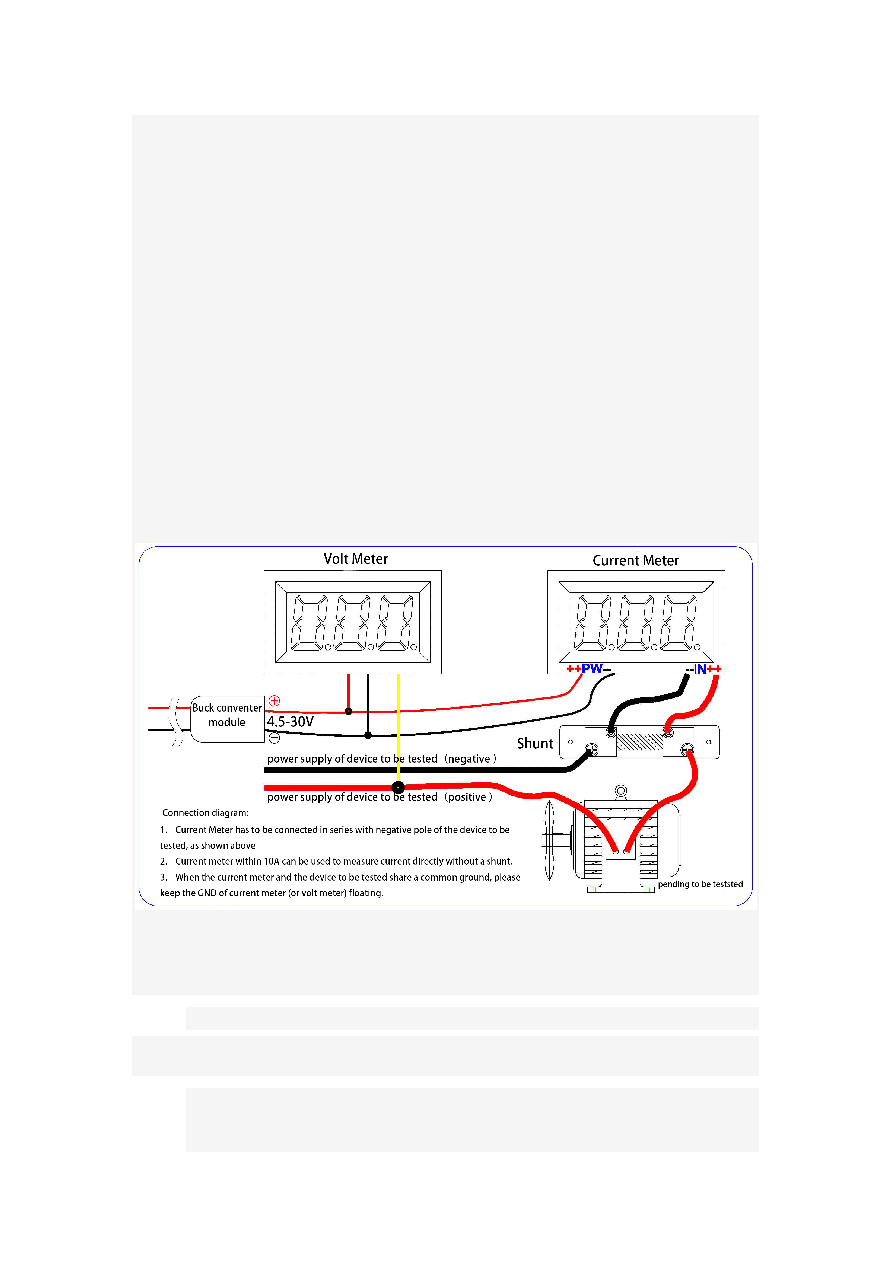

Connection Diagram

APPLICATIONS

•

Various circuits

SPECIFICATION

•

Measure Current: 0-50A DC

•

Power supply voltage: 4-30V DC
