ST3222E
Application circuits
7/15
4
Application circuits

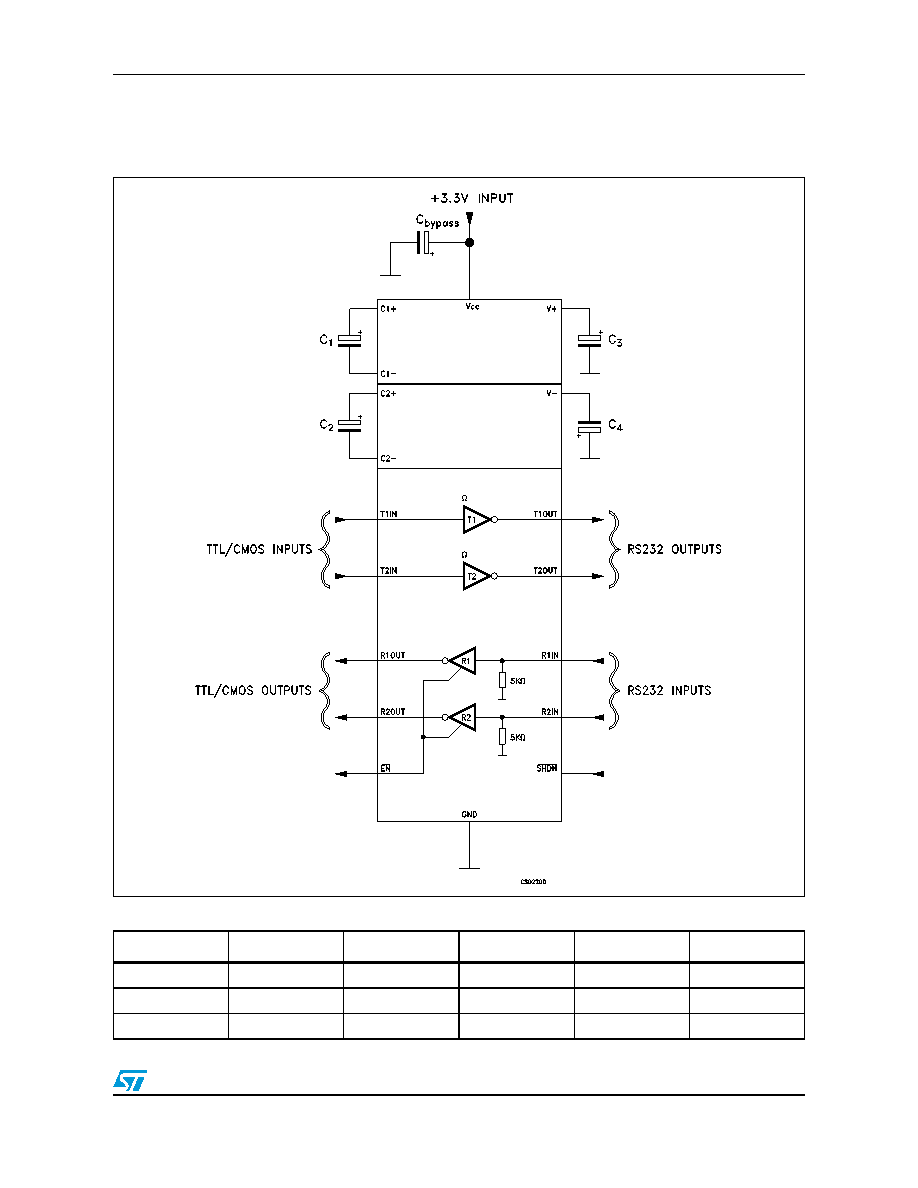

Figure 2.
Application schematic
Table 11.
Capacitance value (µF)
VCC
C1
C2
C3
C4
Cbypass
3.0 to 3.6
0.1
0.1
0.1
0.1
0.1
4.5 to 5.5
0.047
0.33
0.33
0.33
0.33
3.0 to 5.5
0.22
0.1
0.1
0.1
0.22
