Section 18 A/D Converter

Rev.1.00 Jun. 07, 2006 Page 857 of 1102

REJ09B0294-0100

ADIE

ADST

ADF

ADDRA

ADDRB

ADDRC

ADDRD

Channel 0 (AN0)

operation state

Channel 1 (AN1)

operation state

Channel 2 (AN2)

operation state

Channel 3 (AN3)

operation state

Set*

A/D conversion start

Clear*

Waiting for conversion

Reading A/D conversion result

A/D conversion 1

A/D conversion 2

A/D conversion result 1

A/D conversion result 2

Waiting for

conversion

Note: *

↓ indicates the timing of instruction execution by software.

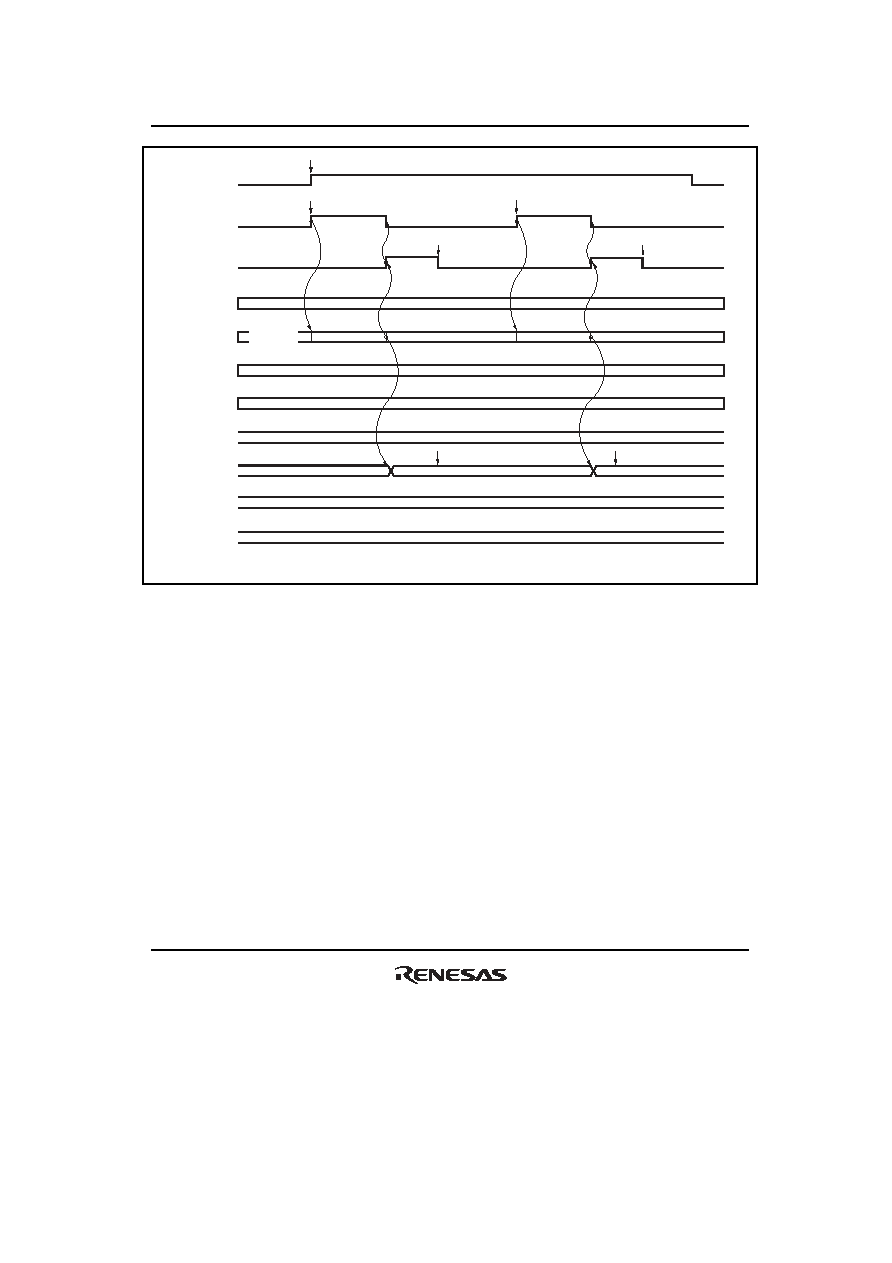

Figure 18.2 Example of A/D Converter Operation (Single Mode, Channel 1 Selected)

18.4.2

Scan Mode

In scan mode, A/D conversion is to be performed sequentially on the analog inputs of the specified

channels up to four or eight channels.

1. When the ADST bit in ADCSR is set to 1 by software, TPU, TMR, or an external trigger

input, A/D conversion starts on the first channel in the group. Consecutive A/D conversion on

a maximum of four channels (SCANE and SCANS = B'10) or on a maximum of eight

channels (SCANE and SCANS = B'11) can be selected. When consecutive A/D conversion is

performed on four channels, A/D conversion starts on AN4 when CH3 and CH2 = B'01. When

consecutive A/D conversion is performed on eight channels, A/D conversion starts on AN0

when CH3 = B'0.

2. When A/D conversion for each channel is completed, the A/D conversion result is sequentially

transferred to the corresponding ADDR of each channel.
