Section 19 D/A Converter

Rev.1.00 Jun. 07, 2006 Page 871 of 1102

REJ09B0294-0100

19.4

Operation

The D/A converter includes D/A conversion circuits for two channels, each of which can operate

independently. When the DAOE bit in DACR01 is set to 1, D/A conversion is enabled and the

conversion result is output.

An operation example of D/A conversion on channel 0 is shown below. Figure 19.2 shows the

timing of this operation.

1. Write the conversion data to DADR0.

2. Set the DAOE0 bit in DACR01 to 1 to start D/A conversion. The conversion result is output

from the analog output pin DA0 after the conversion time t

DCONV has elapsed. The conversion

result continues to be output until DADR0 is written to again or the DAOE0 bit is cleared to 0.

The output value is expressed by the following formula:

Contents of DADR/256

× V

ref

3. If DADR0 is written to again, the conversion is immediately started. The conversion result is

output after the conversion time t

DCONV has elapsed.

4. If the DAOE0 bit is cleared to 0, analog output is disabled.

Conversion data 1

Conversion

result 1

High-impedance state

tDCONV

DADR0

write cycle

DA0

DAOE0

DADR0

Address

DACR01

write cycle

Conversion data 2

Conversion

result 2

tDCONV

[Legend]

tDCONV: D/A conversion time

DADR0

write cycle

DACR01

write cycle

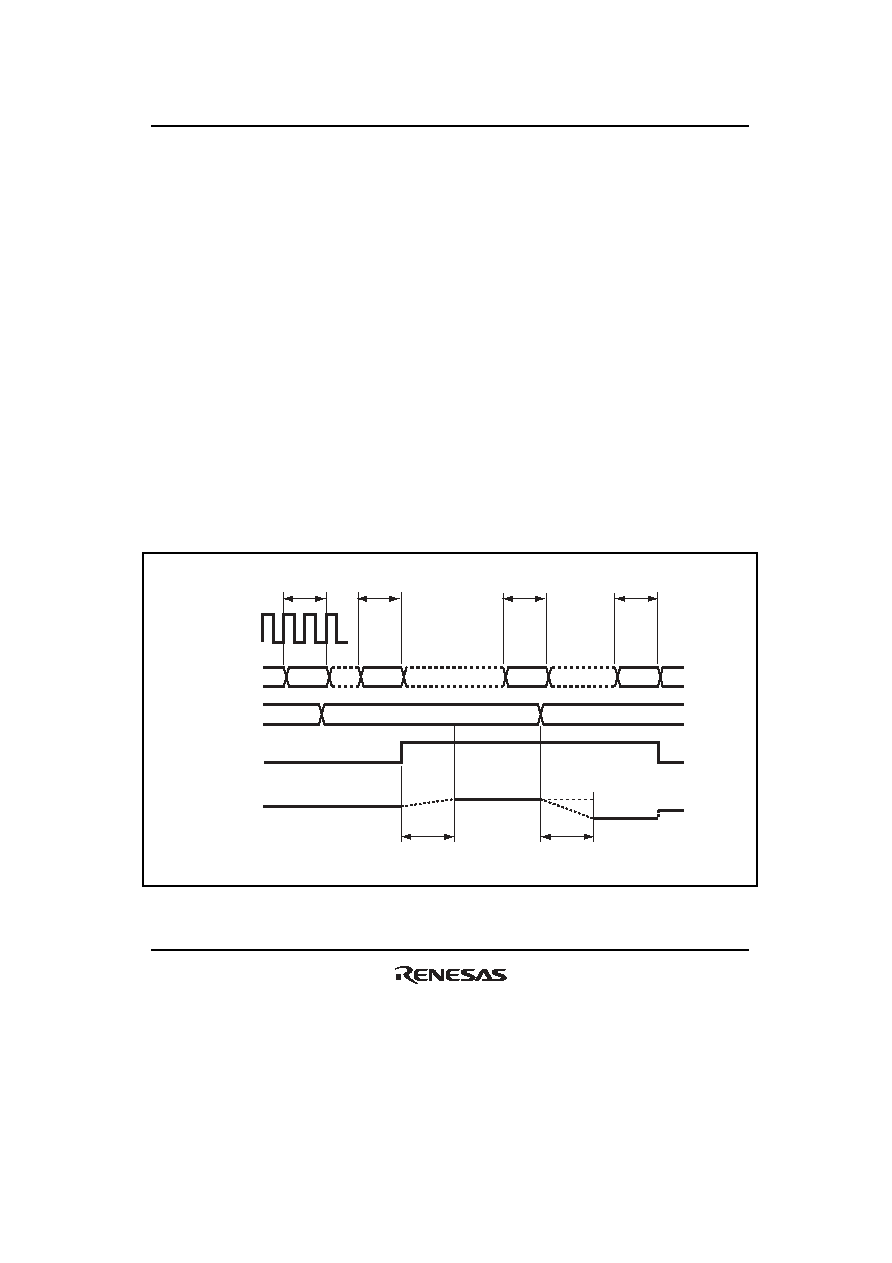

Figure 19.2 Example of D/A Converter Operation
