Section 19 Serial Communication Interface (SCI, IrDA, CRC)

Rev. 2.00 Sep. 24, 2008 Page 933 of 1468

REJ09B0412-0200

19.6.4

Serial Data Reception (Clocked Synchronous Mode) (SCI_0, 1, 2, and 4 only)

Figure 19.21 shows an example of SCI operation for reception in clocked synchronous mode. In

serial reception, the SCI operates as described below.

1. The SCI performs internal initialization in synchronization with a synchronization clock input

or output, starts receiving data, and stores the receive data in RSR.

2. If an overrun error (when reception of the next data is completed while the RDRF flag in SSR

is still set to 1) occurs, the ORER bit in SSR is set to 1. If the RIE bit in SCR is set to 1 at this

time, an ERI interrupt request is generated. Receive data is not transferred to RDR. The RDRF

flag remains to be set to 1.

3. If reception finishes successfully, the RDRF bit in SSR is set to 1, and receive data is

transferred to RDR. If the RIE bit in SCR is set to 1 at this time, an RXI interrupt request is

generated. Because the RXI interrupt processing routine reads the receive data transferred to

RDR before reception of the next receive data has finished, continuous reception can be

enabled.

Bit 7

Serial data

Synchronization

clock

1 frame

RDRF

ORER

ERI interrupt request

generated by overrun

error

RXI interrupt

request generated

RDR data read and

RDRF flag cleared

to 0 in RXI interrupt

processing routine

RXI interrupt

request

generated

Bit 0

Bit 7

Bit 0

Bit 1

Bit 6

Bit 7

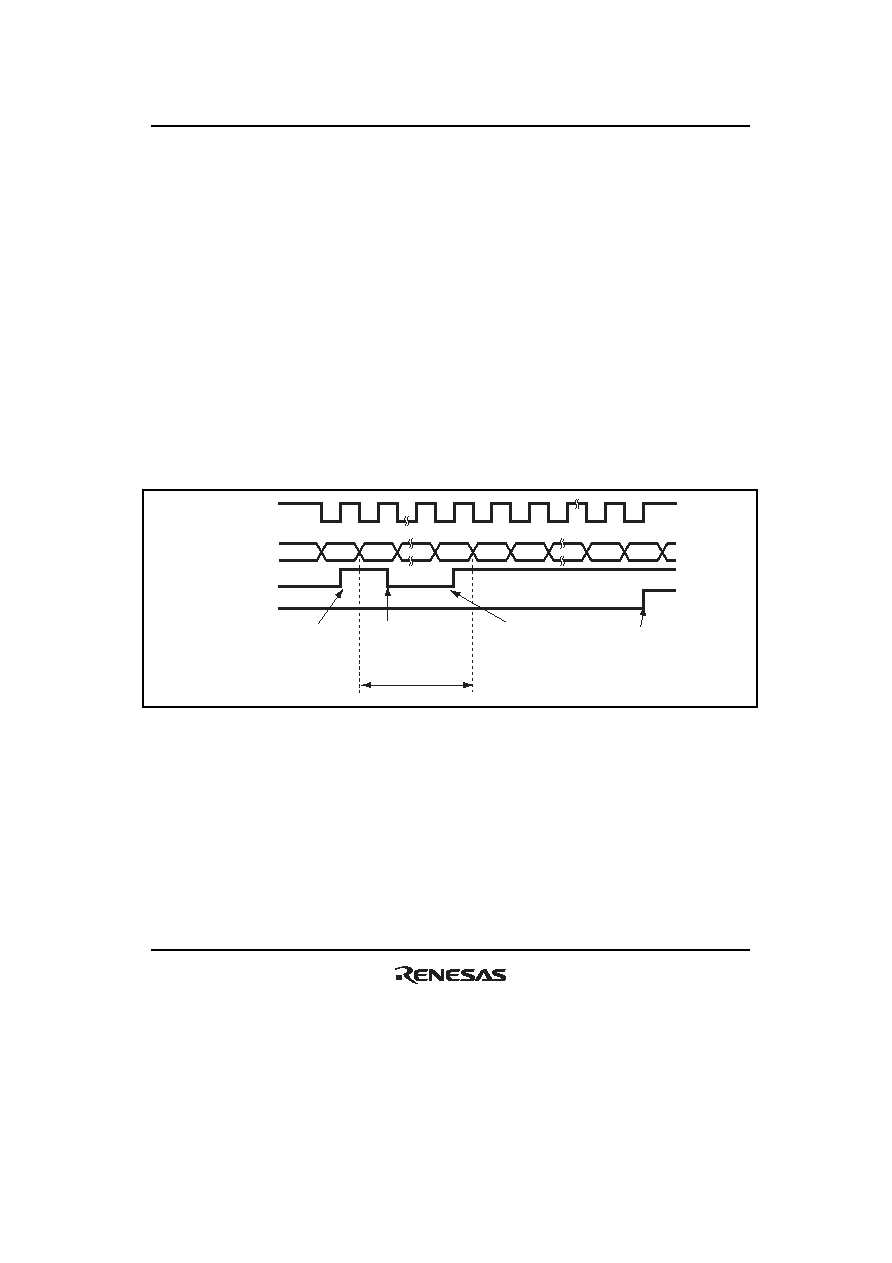

Figure 19.21 Example of Operation for Reception in Clocked Synchronous Mode

Transfer cannot be resumed while a receive error flag is set to 1. Accordingly, clear the ORER,

FER, PER, and RDRF bits to 0 before resuming reception. Figure 19.22 shows a sample flowchart

for serial data reception.
