Section 20 USB Function Module (USB)

Rev. 2.00 Sep. 24, 2008 Page 1021 of 1468

REJ09B0412-0200

20.5.7

EP3 Interrupt-In Transfer

USB function

Application

IN token reception

Data transmission to host

Set EP3 transmission

complete flag

(IFR1.EP3 TS = 1)

Write data to EP3 data

Write 1 to EP3 packet

enable bit

(TRG.EP3 PKTE = 1)

Clear EP3 transmission

complete flag

(IFR1.EP3 TS = 0)

Write data to EP3 data

Write 1 to EP3 packet

enable bit

(TRG.EP3 PKTE = 1)

Valid data

in EP3FIFO?

Is there data

for transmission

to host?

Is there data

for transmission

to host?

Yes

NACK

ACK

Note: This flowchart shows just one example of interrupt transfer processing. Other possibilities include an

operation flow in which, if there is data to be transferred, the EP3 DE bit in the data status register is

referenced to confirm that the FIFO is empty, and then data is written to the FIFO.

Interrupt request

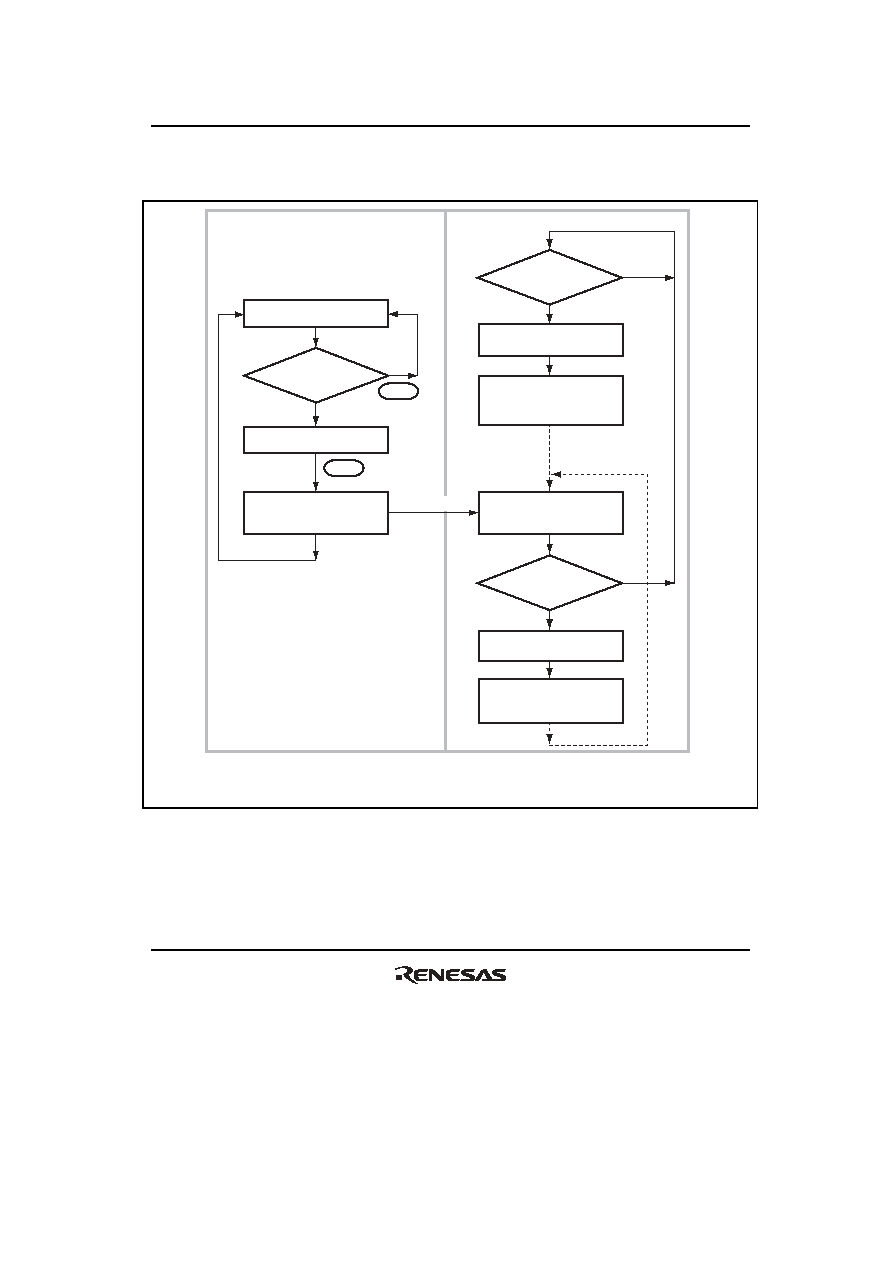

Figure 20.19 Operation of EP3 Interrupt-In Transfer
