H8SX/1663R Datasheet(PDF) 1139 Page - Renesas Technology Corp |
|
|
|||||||||||||||||||||||||||||
H8SX/1663R Datasheet(HTML) 1139 Page - Renesas Technology Corp |
|
|

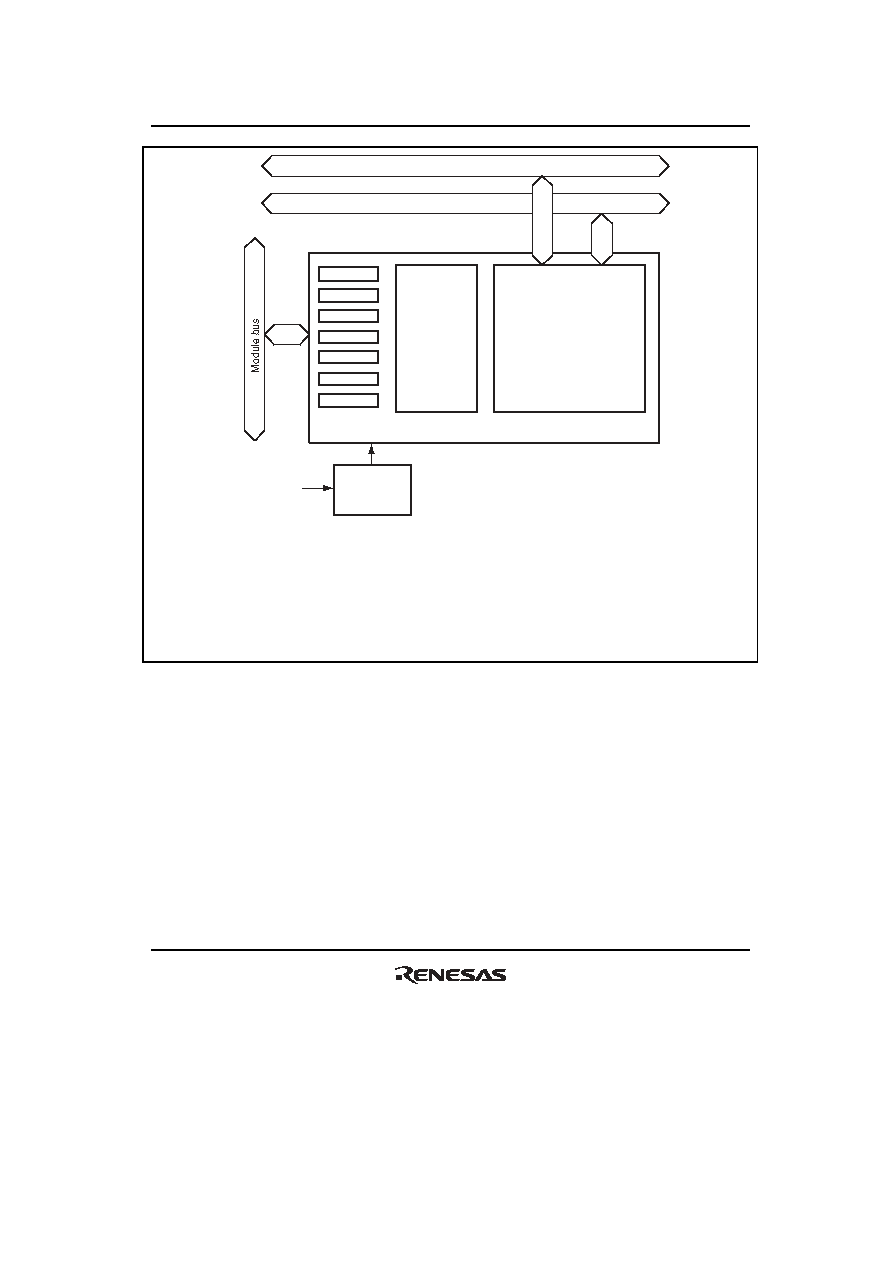

1139 / 1504 page  Section 25 Flash Memory Rev. 2.00 Sep. 24, 2008 Page 1107 of 1468 REJ09B0412-0200 FCCS FPCS FECS FKEY FMATS FTDAR RAMER Control unit Memory MAT unit Flash memory User MAT: 384 Kbytes (H8SX/1663) 512 Kbytes (H8SX/1664) 1 Mbyte (H8SX/1668) User boot MAT: 16 Kbytes Operating mode Mode pins Internal data bus (32 bits) Internal address bus [Legend] FCCS: Flash code control/status register FPCS: Flash program code select register FECS: Flash erase code select register FKEY: Flash key code register FMATS: Flash MAT select register FTDAR: Flash transfer destination address register RAMER: RAM emulation register Figure 25.1 Block Diagram of Flash Memory |
|
