Section 27 Clock Pulse Generator
Rev. 2.00 Sep. 24, 2008 Page 1232 of 1468
REJ09B0412-0200
External
clock
One cycle (worst case)
after the bus cycle completion
Operating clock
specified in SCKCR
Operating clock changed
I
φ
CPU
CPU
CPU
Bus master

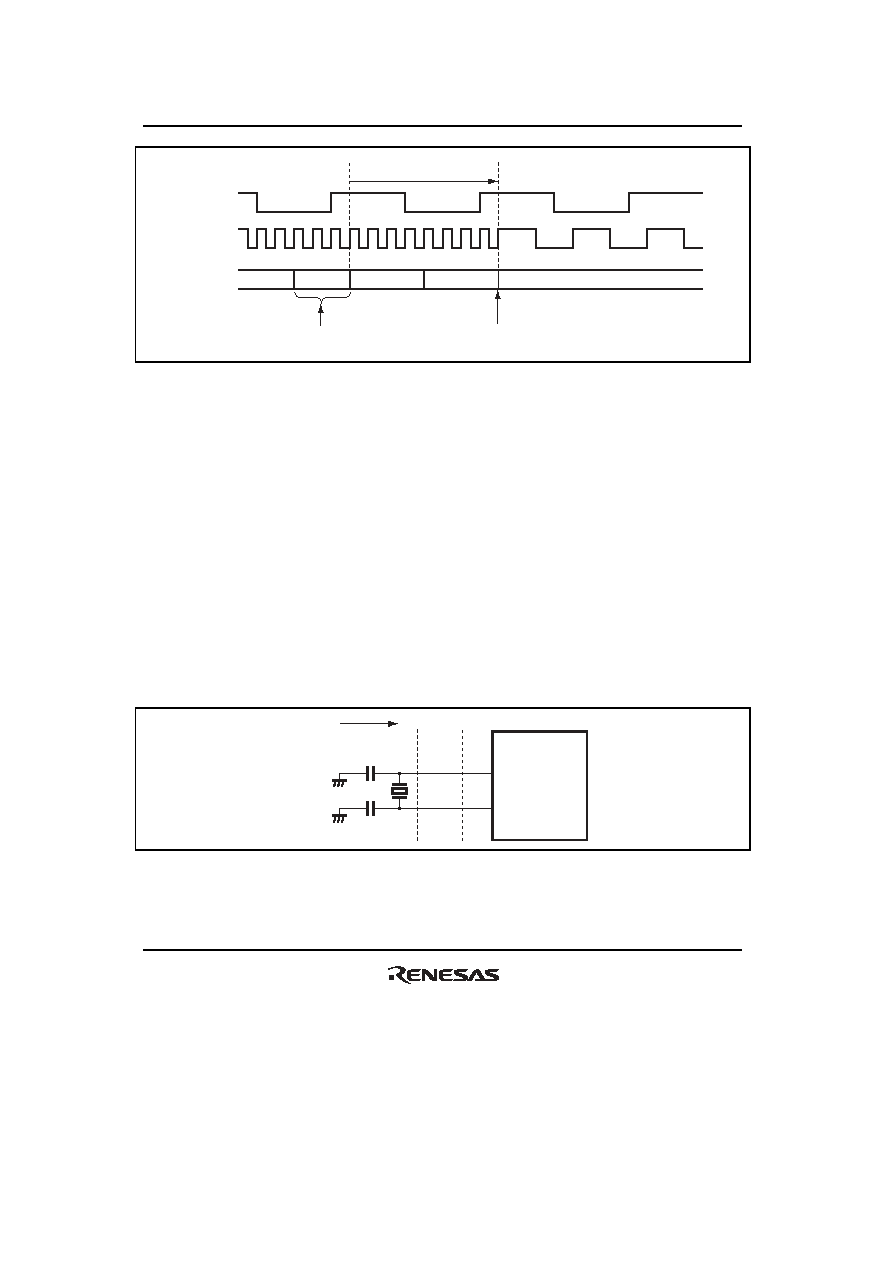

Figure 27.9 Clock Modification Timing
27.6.2
Notes on Resonator
Since various characteristics related to the resonator are closely linked to the user's board design,
thorough evaluation is necessary on the user's part, using the resonator connection examples
shown in this section as a reference. As the parameters for the resonator will depend on the
floating capacitance of the resonator and the mounting circuit, the parameters should be
determined in consultation with the resonator manufacturer. The design must ensure that a voltage
exceeding the maximum rating is not applied to the resonator pin.
27.6.3
Notes on Board Design
When using the crystal resonator, place the crystal resonator and its load capacitors as close to the
XTAL and EXTAL pins as possible. Other signal lines should be routed away from the oscillation
circuit as shown in Figure 27.10 to prevent induction from interfering with correct oscillation.
CL2
Signal A Signal B
CL1
This LSI
XTAL
EXTAL
Inhibited
Figure 27.10 Note on Board Design for Oscillation Circuit
