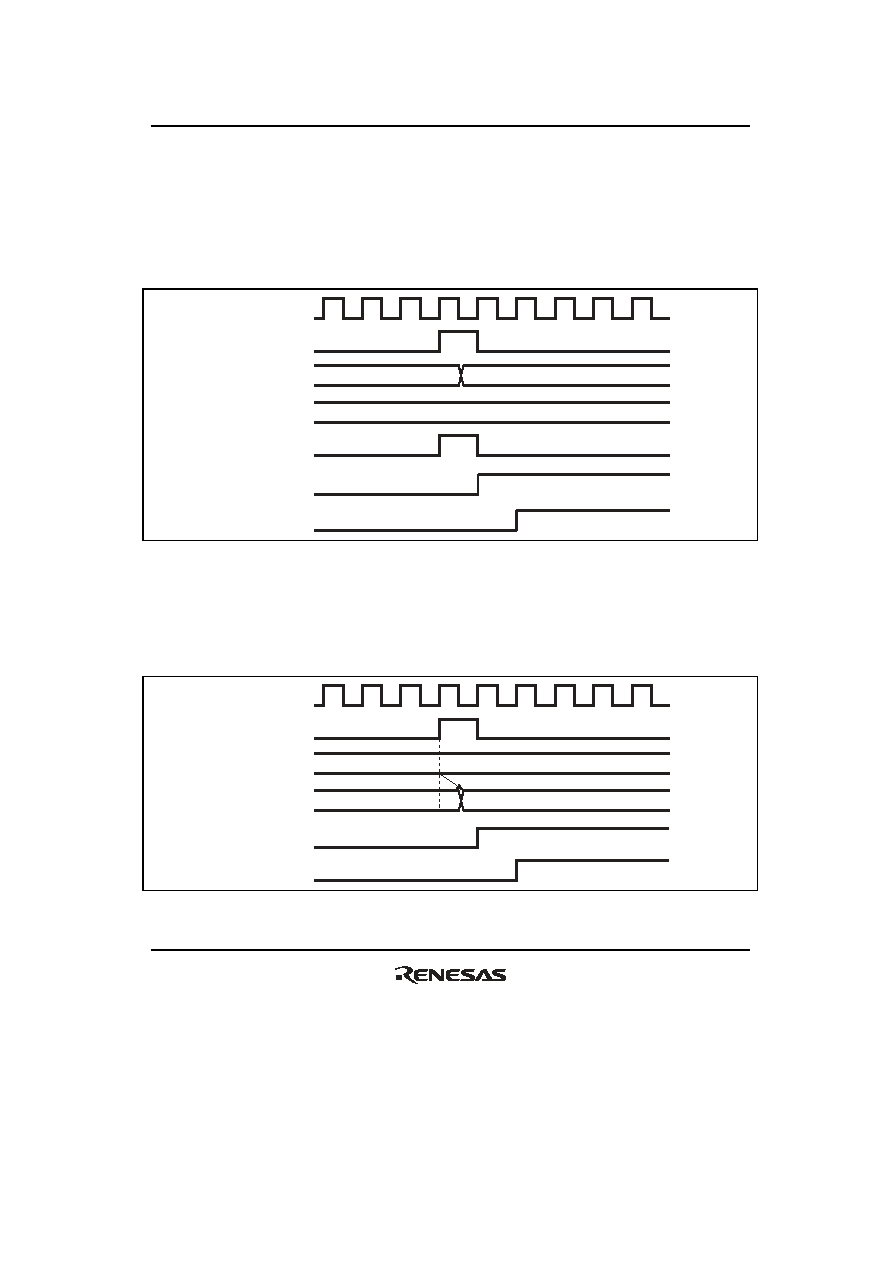

background image
Section 14 16-Bit Timer Pulse Unit (TPU)
Rev. 2.00 Sep. 24, 2008 Page 763 of 1468
REJ09B0412-0200
14.9.2
Interrupt Signal Timing
(1)
TGF Flag Setting Timing in Case of Compare Match
Figure 14.39 shows the timing for setting of the TGF flag in TSR by compare match occurrence,
and the TGI interrupt request signal timing.
TGR
Compare match
signal
P
φ
TCNT input
clock
TCNT
N
+ 1
N
N
TGF flag
TGI interrupt
Figure 14.39 TGI Interrupt Timing (Compare Match)
(2)
TGF Flag Setting Timing in Case of Input Capture
Figure 14.40 shows the timing for setting of the TGF flag in TSR by input capture occurrence, and
the TGI interrupt request signal timing.
TGR
P
φ
TCNT
N
Input capture
signal
TGF flag
TGI interrupt
N
Figure 14.40 TGI Interrupt Timing (Input Capture)
