Section 14 16-Bit Timer Pulse Unit (TPU)
Rev. 2.00 Sep. 24, 2008 Page 764 of 1468
REJ09B0412-0200
(3)
TCFV Flag/TCFU Flag Setting Timing

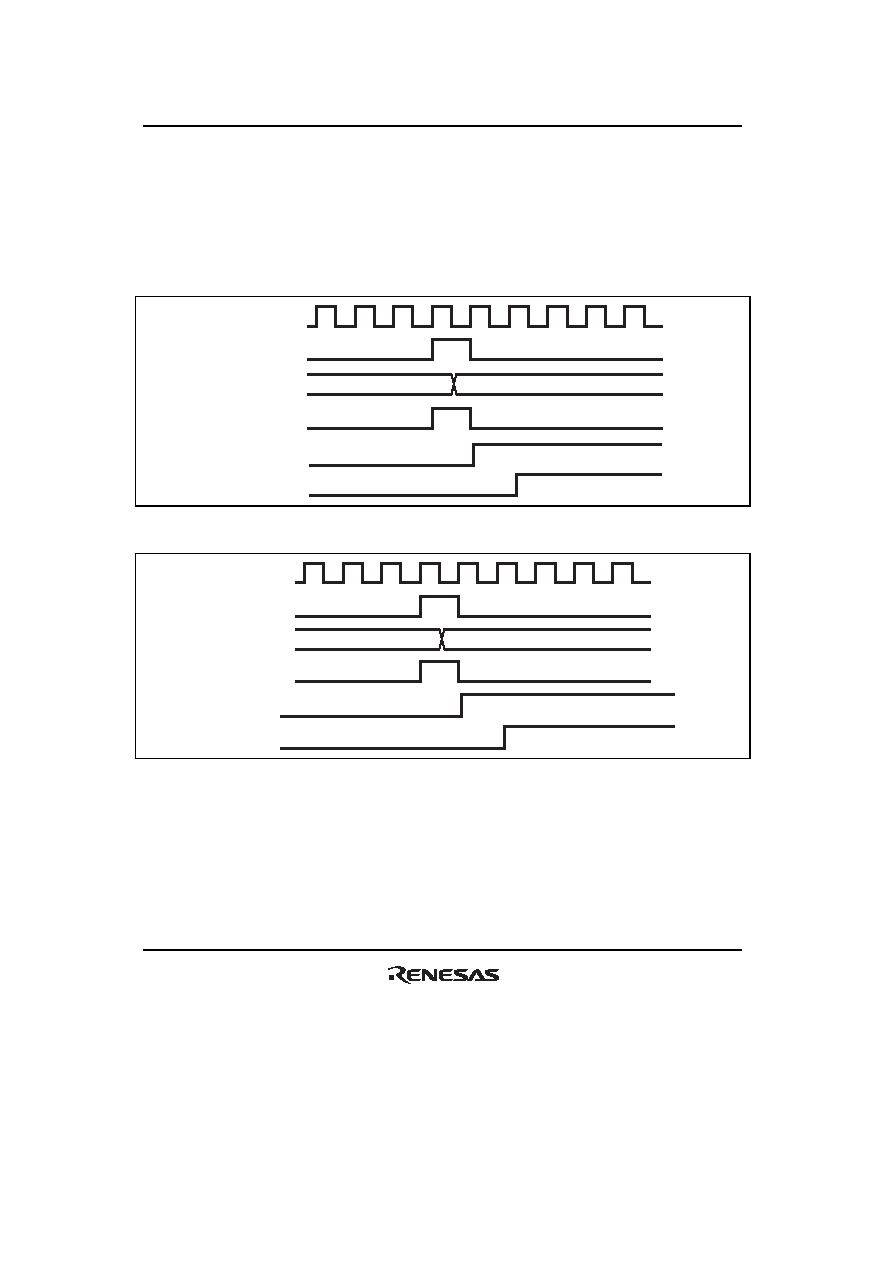

Figure 14.41 shows the timing for setting of the TCFV flag in TSR by overflow occurrence, and
the TCIV interrupt request signal timing.
Figure 14.42 shows the timing for setting of the TCFU flag in TSR by underflow occurrence, and
the TCIU interrupt request signal timing.
H'FFFF
P
φ
TCNT input
clock
TCNT
(overflow)
Overflow signal
TCFV flag
TCIV interrupt
H'0000
Figure 14.41 TCIV Interrupt Setting Timing
H'0000
P
φ
TCNT input
clock
TCNT
(underflow)
Underflow signal
TCFU flag
TCIU interrupt
H'FFFF
Figure 14.42 TCIU Interrupt Setting Timing
