Section 19 Serial Communication Interface (SCI, IrDA, CRC)

Rev. 2.00 Sep. 24, 2008 Page 917 of 1468

REJ09B0412-0200

19.4.5

Serial Data Transmission (Asynchronous Mode)

Figure 19.9 shows an example of the operation for transmission in asynchronous mode. In

transmission, the SCI operates as described below.

1. The SCI monitors the TDRE flag in SSR, and if it is cleared to 0, recognizes that data has been

written to TDR, and transfers the data from TDR to TSR.

2. After transferring data from TDR to TSR, the SCI sets the TDRE flag to 1 and starts

transmission. If the TIE bit in SCR is set to 1 at this time, a TXI interrupt request is generated.

Because the TXI interrupt processing routine writes the next transmit data to TDR before

transmission of the current transmit data has finished, continuous transmission can be enabled.

3. Data is sent from the TxD pin in the following order: start bit, transmit data, parity bit or

multiprocessor bit (may be omitted depending on the format), and stop bit.

4. The SCI checks the TDRE flag at the timing for sending the stop bit.

5. If the TDRE flag is 0, the next transmit data is transferred from TDR to TSR, the stop bit is

sent, and then serial transmission of the next frame is started.

6. If the TDRE flag is 1, the TEND flag in SSR is set to 1, the stop bit is sent, and then the mark

state is entered in which 1 is output. If the TEIE bit in SCR is set to 1 at this time, a TEI

interrupt request is generated.

Figure 19.10 shows a sample flowchart for transmission in asynchronous mode.

TDRE

TEND

1 frame

0/1

Data

Start

bit

Parity

bit

Stop

bit

Start

bit

Data

Parity

bit

Stop

bit

TXI interrupt

request generated

Data written to TDR and

TDRE flag cleared to 0 in

TXI interrupt processing

routine

TEI interrupt

request generated

Idle state

(mark state)

TXI interrupt

request generated

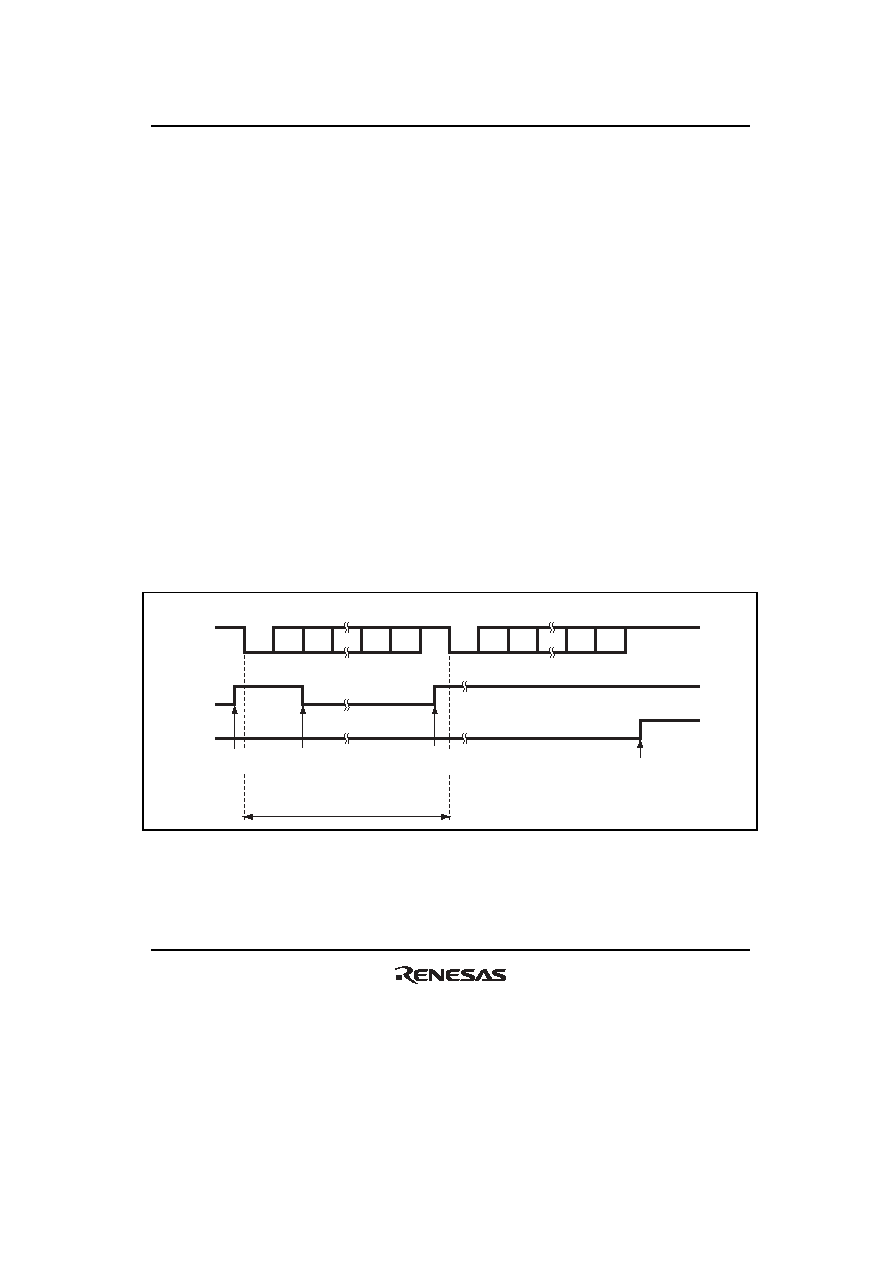

Figure 19.9 Example of Operation for Transmission in Asynchronous Mode

(Example with 8-Bit Data, Parity, One Stop Bit)
