Section 23 D/A Converter
Rev. 2.00 Sep. 24, 2008 Page 1097 of 1468
REJ09B0412-0200
Section 23 D/A Converter
23.1
Features
• 8-bit resolution
• Two output channels
• Maximum conversion time of 10 µs (with 20 pF load)
• Output voltage of 0 V to V
ref
• D/A output hold function in software standby mode
• Module stop state specifiable
Module data bus
Internal data
bus
Vref
AVCC
DA1
DA0
AVSS
8-bit
D/A
Control circuit
[Legend]
DADR0: D/A data register 0
DADR1: D/A data register 1
DACR01: D/A control register 01

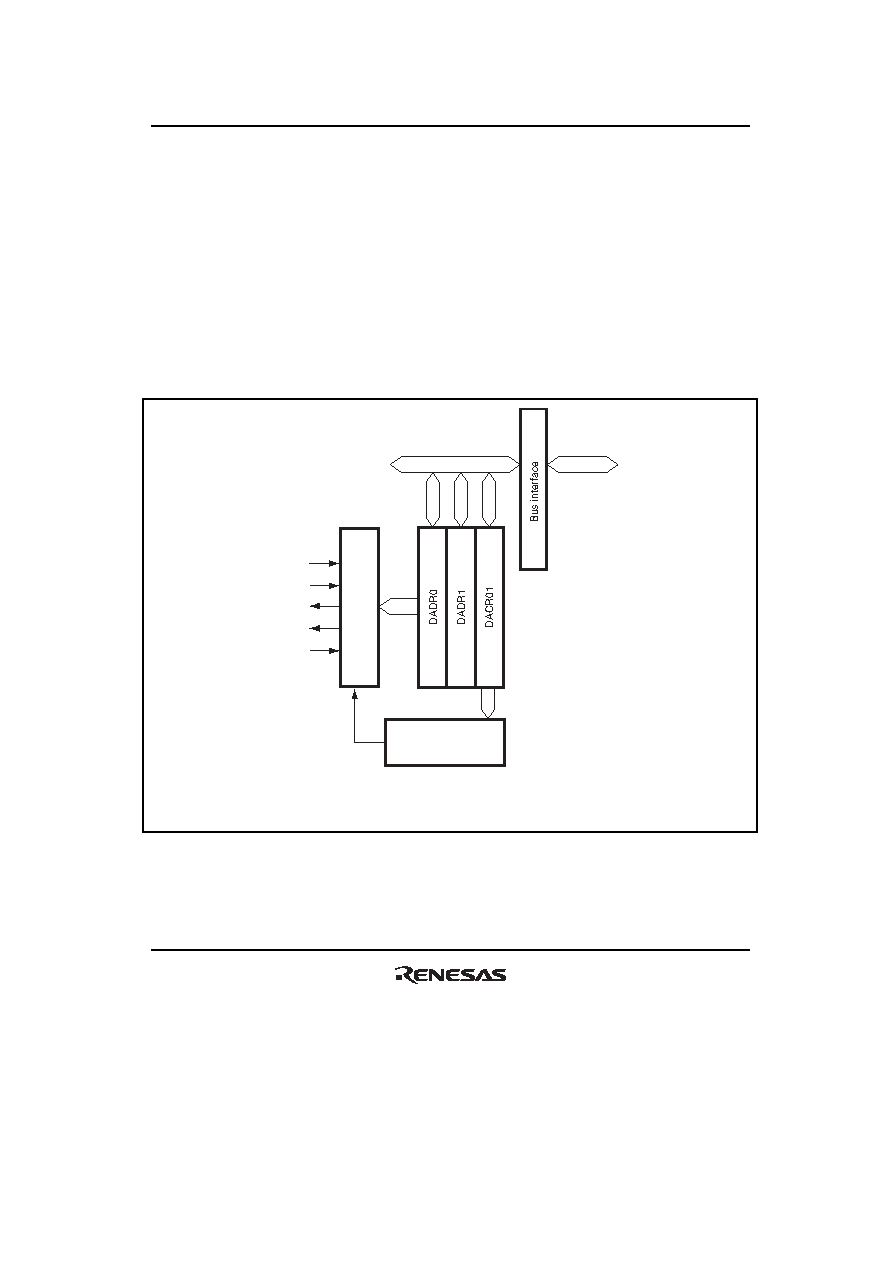

Figure 23.1 Block Diagram of D/A Converter
