2SC3392 Datasheet(PDF) 1 Page - Guangdong Kexin Industrial Co.,Ltd |
|
|
|||||||||||||||||||||||||||||
2SC3392 Datasheet(HTML) 1 Page - Guangdong Kexin Industrial Co.,Ltd |
|
|

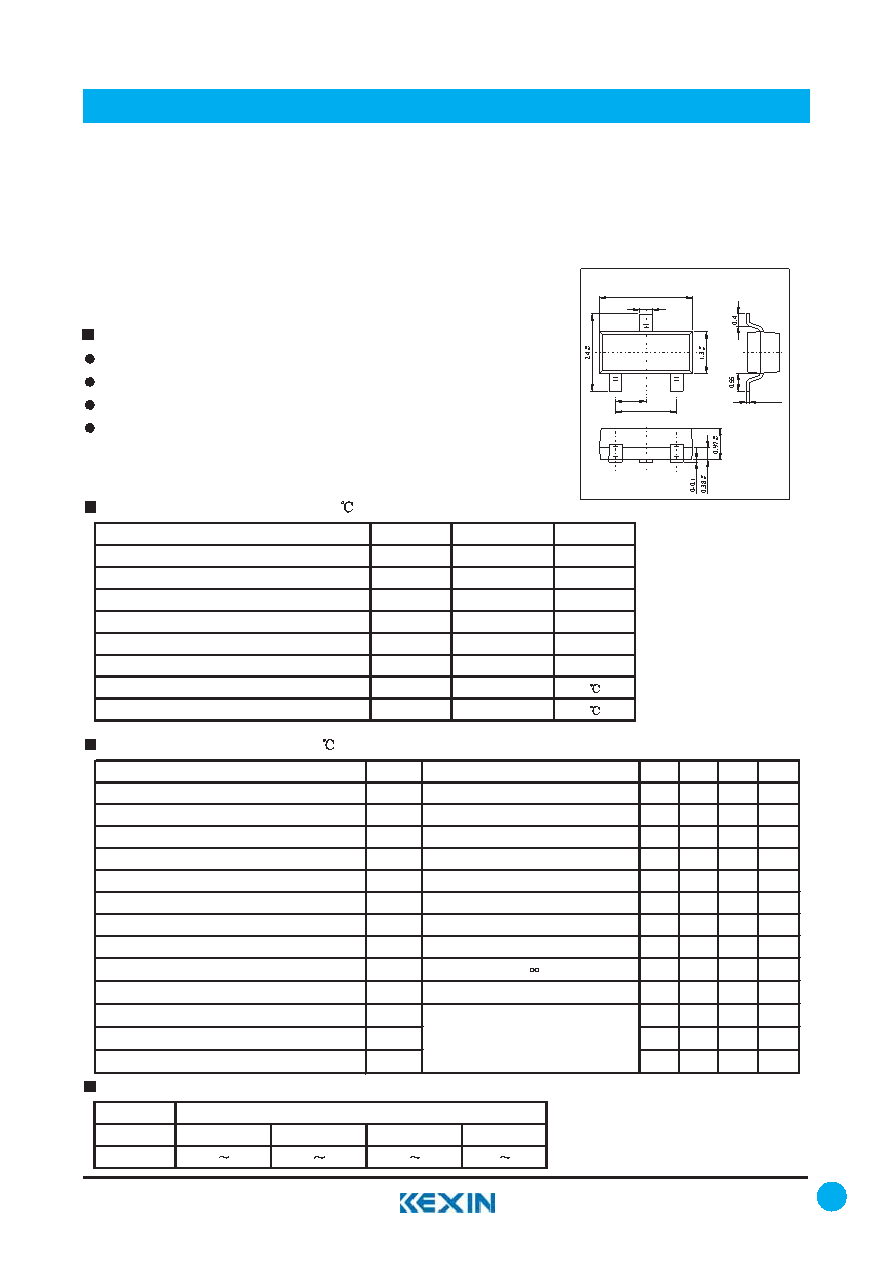

1 / 1 page  SMD Type IC www.kexin.com.cn 1 SMD Type Transistors 0.4+0.1 -0.1 2.9+0.1 -0.1 0.95+0.1 -0.1 1.9+0.1 -0.1 1.Base 2.Emitter 3.collector 12 3 Unit: mm SOT-23 0.1+0.05 -0.01 NPN Epitaxial Planar Silicon Transistors 2SC3392 Features Adoption of FBET process. High breakdown voltage : VCEO=50V. Large current capacitiy and high fT. Ultrasmall-sized package permitting sets to be smallsized, slim. Absolute Maximum Ratings Ta = 25 Parameter Symbol Rating Unit Collector-base voltage VCBO 60 V Collector-emitter voltage VCEO 50 V Emitter-base voltage VEBO 5V Collector current IC 500 mA Collector current (pulse) ICP 800 mA Collector dissipation PC 200 mW Jumction temperature Tj 150 Storage temperature Tstg -55to+150 Electrical Characteristics Ta = 25 Parameter Symbol Testconditons Min Typ Max Unit Collector cutoff current IcBO VCB =40V , IE =0 0.1 ìA Emitter cutoff current IEBO VEB =4V , IC =0 0.1 ìA DC current Gain hFE VCE =5V , IC = 10mA 100 560 Gain bandwidth product fT VCE =10V , IC = 50mA 300 MHz Common base output capacitance Cob VCB = 10V , f = 1MHz 3.7 pF Collector-to-emitter saturation voltage VCE(sat) IC =100mA , IB =10mA 0.1 0.3 V Base-to-emitter saturation voltage VBE(sat) IC =100mA , IB =10mA 0.8 1.2 V Collector-to-base breakdown voltage V(BR)CBO IC =10ìA , IE =0 60 V Collector-to-emitter breakdown voltage V(BR)CEO IC =100ìA , RBE = 50 V Emitter-to-base breakdown voltage V(BR)EBO IE =10ìA , IC =0 5 V Turn-on time ton 70 ns Storage time tstg VCC = 20V, IC =10IB1 =-10IB2 = 100mA 400 ns Fall time tf 70 ns hFE Classification Marking Rank 4 5 6 7 hFE 100 200 140 280 200 400 280 560 AY |
