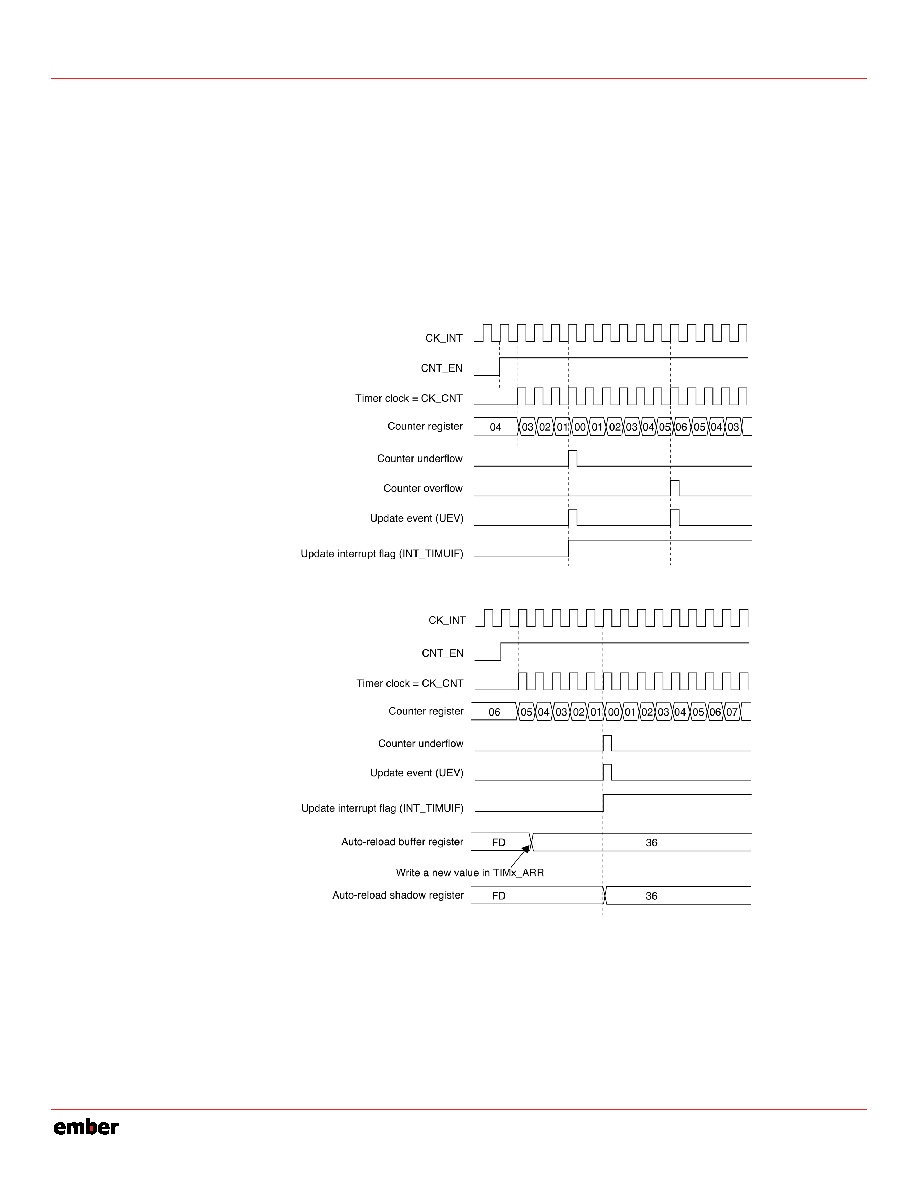

128 / 240 page  EM351 / EM357 When a UEV occurs, the update flag (the INT_TIMUIF bit in the INT_TIMxFLAG register) is set (unless TIM_USR is 1) and the following registers are updated: The prescaler shadow register is reloaded with the buffer value (contents of the TIMx_PSC register). The auto-reload active register is updated with the buffer value (contents of the TIMx_ARR register). If the update source is a counter overflow, the auto-reload is updated before the counter is reloaded, so that the next period is the expected one. The counter is loaded with the new value. Figure 9-9, Figure 9-10, and Figure 9-11 show some examples of the counter behavior for different clock frequencies. Figure 9-9. Counter Timing Diagram, Internal Clock Divided by 1, TIMx_ARR = 0x6 Figure 9-10. Counter Timing Diagram, Update Event with TIM_ARBE = 1 (counter underflow) 9-8 120-035X-000D Preliminary |
|
