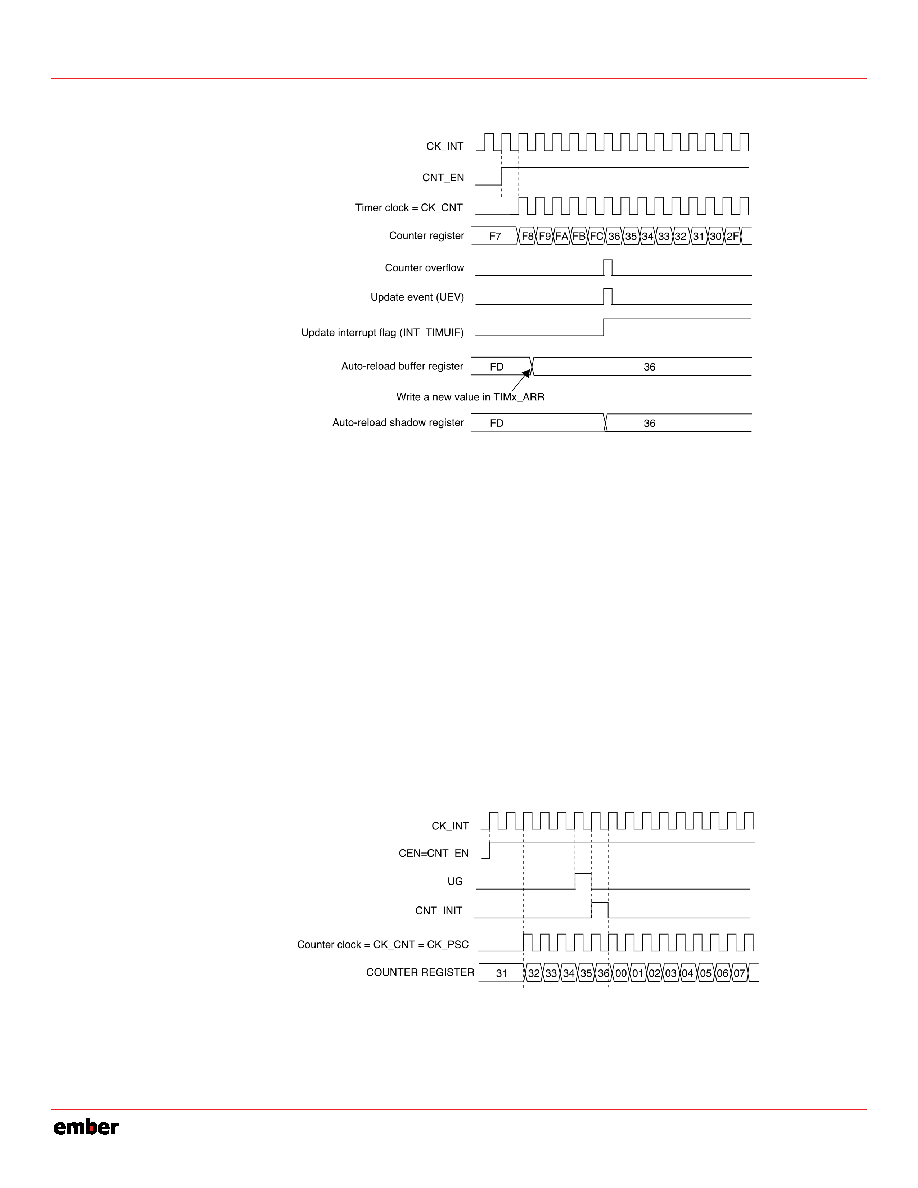

129 / 240 page  EM351 / EM357 Figure 9-11. Counter Timing Diagram, Update Event with TIM_ARBE = 1 (counter overflow) 9.3.3 Clock Selection The counter clock can be provided by the following clock sources: Internal clock (PCLK) External clock mode 1: external input pin (TIy) External clock mode 2: external trigger input (ETR) Internal trigger input (ITR0): using the other timer as prescaler. Refer to the section Using One Timer as Prescaler for the Other Timer for more details. 9.3.3.1 Internal Clock Source (CK_INT) The internal clock is selected when the slave mode controller is disabled (TIM_SMS = 000 in the TIMx_SMCR register). In this mode, the TIM_CEN, TIM_DIR (in the TIMx_CR1 register), and TIM_UG bits (in the TIMx_EGR register) are actual control bits and can be changed only by software, except for TIM_UG, which remains cleared automatically. As soon as the TIM_CEN bit is written to 1, the prescaler is clocked by the internal clock CK_INT. Figure 9-12 shows the behavior of the control circuit and the up-counter in normal mode, without prescaling. Figure 9-12. Control Circuit in Normal Mode, Internal Clock Divided by 1 9.3.3.2 External Clock Source Mode 1 This mode is selected when TIM_SMS = 111 in the TIMx_SMCR register. The counter can count at each rising or falling edge on a selected input. Figure 9-13 shows the registers and signals used in the example that follows. 9-9 120-035X-000D Preliminary |
|
