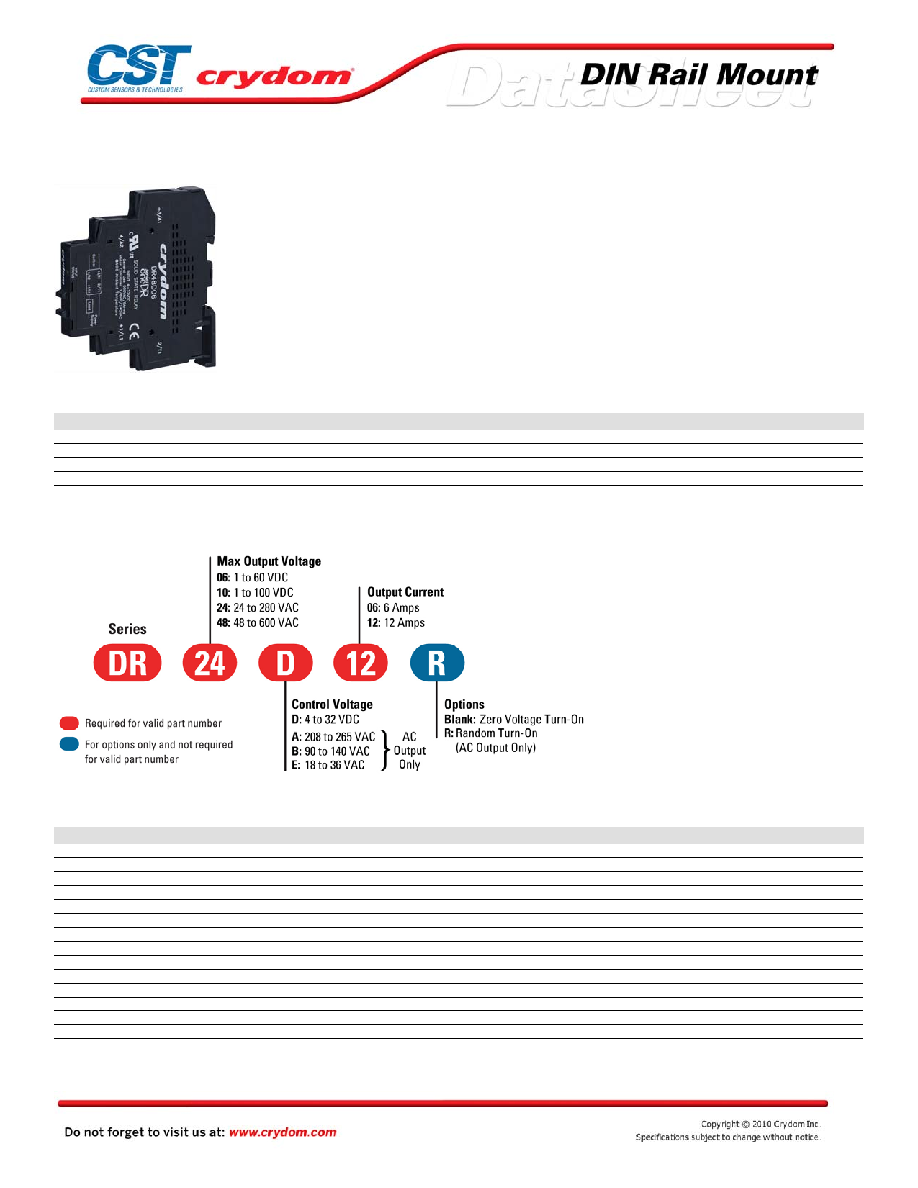

SeriesOne DR Series

• Ratings of 6 & 12 Amps

• Load voltage ratings of 2-60VDC, 2-100VDC, 24-280VAC and 48-600VAC

• Fits standard 35mm DIN-RAIL

• LED input status indicator

• AC or DC control

• Zero-crossing (resistive loads) or random turn-on (inductive loads) output

• UL and cUL Recognized, CE & RoHS Compliant

• 100K-cycle UL 508 Endurance Rating for Enhanced Reliability

PRODUCT SELECTION

Description

280V, 6A

280V, 12A

600V, 6A

600V, 12A

60V, 6A

60V, 12A

100V, 6A

100V, 12A

4-32 VDC Control

DR24D06

DR24D12

DR48D06

DR48D12

DR06D06

DR06D12

DR10D06

DR100D12

90-140 VAC Control

DR24B06

DR24B12

DR48B12

208-265 VAC Control

DR24A06

DR24A12

DR48A12

18-36 VAC Control

DR24E06

DR24E12

DR48E12

AVAILABLE OPTIONS

OUTPUT SPECIFICATIONS AC Output (1)

Description

DR24x06

DR24x12

DR48X06

DR48x12

Operating Voltage (47-63Hz) [Vrms]

24-280

24-280

48-600

48-600

Transient Overvoltage [Vpk]

600

600

1200

1200

Maximum Load Current, resistive [Arms] (2)

6

12

6

12

Minimum Load Current [Arms]

0.15

0.15

0.15

0.15

Maximum Off-State Leakage Current @ Rated Voltage [mArms]

0.1

0.1

0.1

0.2

Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec] (3)

500

500

500

500

Maximum On-State Voltage Drop @ Rated Current [Vpk]

1.3

1.3

1.3

1.3

Maximum Surge Current (50/60 Hz, 1 cycle) [Apk]

285/300

715/750

285/300

715/750

Maximum I²t for Fusing (50/60 HZ, 1/2 cycle) [A² sec]

410/375

2560/2330

410/375

2560/2330

HP Rating @ 240V

1/6

1/3

1/6

1/3

Minimum Power Factor (with Maximum Load)

0.5

0.5

0.5

0.5

Min/Max stranded wire

22/14 AWG

22/14 AWG

22/14 AWG

22/14 AWG

Min/Max solid wire

22/14 AWG

22/14 AWG

22/14 AWG

22/14 AWG

Weight (typical)

1.76 oz. (50g)

3.17 oz. (90g)

1.76 oz. (50g)

3.17 oz. (90g)
