BAS21 Datasheet(PDF) 1 Page - SeCoS Halbleitertechnologie GmbH |
|
|
|||||||||||||||||||||||||||||
BAS21 Datasheet(HTML) 1 Page - SeCoS Halbleitertechnologie GmbH |
|
|

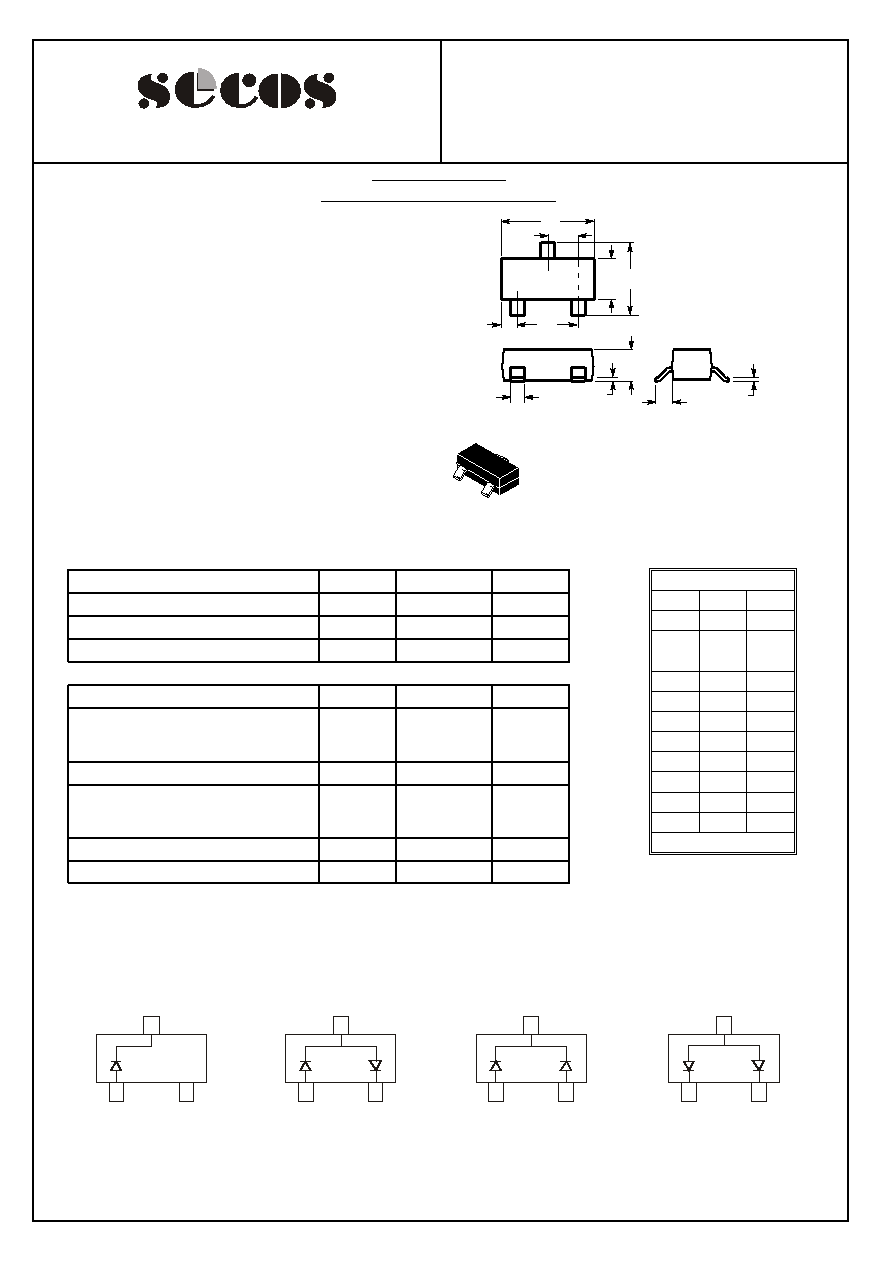

1 / 2 page  Any changing of specification will not be informed individua BAS21 Series Surface Mount Switching Diodes FEATURES · High Voltage Switching Diode · K J C H L A B S G V D Top View 1 2 3 Case: SOT-23, Molded Plastic Terminals: Solderable per MIL-STD-202, Method 208 Polarity: See Diagrams Below Weight: 0.008 grams (approx.) Mounting Position: Any MECHANICAL DATA Surface Mount Package Ideally Suited for Automatic Insertion For General Purpose Switching Applications http://www.SeCoSGmbH.com Elektronische Bauelemente · · · · · · · · BAS21 Marking: JS BAS21S Marking: JS4 BAS21C Marking: JS3 BAS21A Marking: JS2 1 2 1 1 1 2 2 2 3 3 3 3 MAXIMUM RATINGS Rating Symbol Value Unit Continuous Reverse Voltage VR 250 Vdc Peak Forward Current IF 200 mAdc Peak Forward Surge Current IFM(surge) 625 mAdc THERMAL CHARACTERISTICS Characteristic Symbol Max Unit Total Device Dissipation FR– 5 Board(1) TA = 25°C Derate above 25 °C PD 225 1.8 mW mW/ °C Thermal Resistance, Junction to Ambient RqJA 556 °C/W Total Device Dissipation Alumina Substrate,(2) TA = 25°C Derate above 25 °C PD 300 2.4 mW mW/ °C Thermal Resistance, Junction to Ambient RqJA 417 °C/W Junction and Storage Temperature TJ, Tstg – 55 to +150 °C Dim Min Max A 2.800 3.040 B 1.200 1.400 C 0.890 1.110 D 0.370 0.500 G 1.780 2.040 H 0.013 0.100 J 0.085 0.177 K 0.450 0.600 L 0.890 1.020 S 2.100 2.500 V 0.450 0.600 All Dimension in mm SOT-23 01-Jun-2002 Rev. A Page 1 of 2 RoHS Compliant Product A suffix of "-C" specifies halogen & lead-free |
