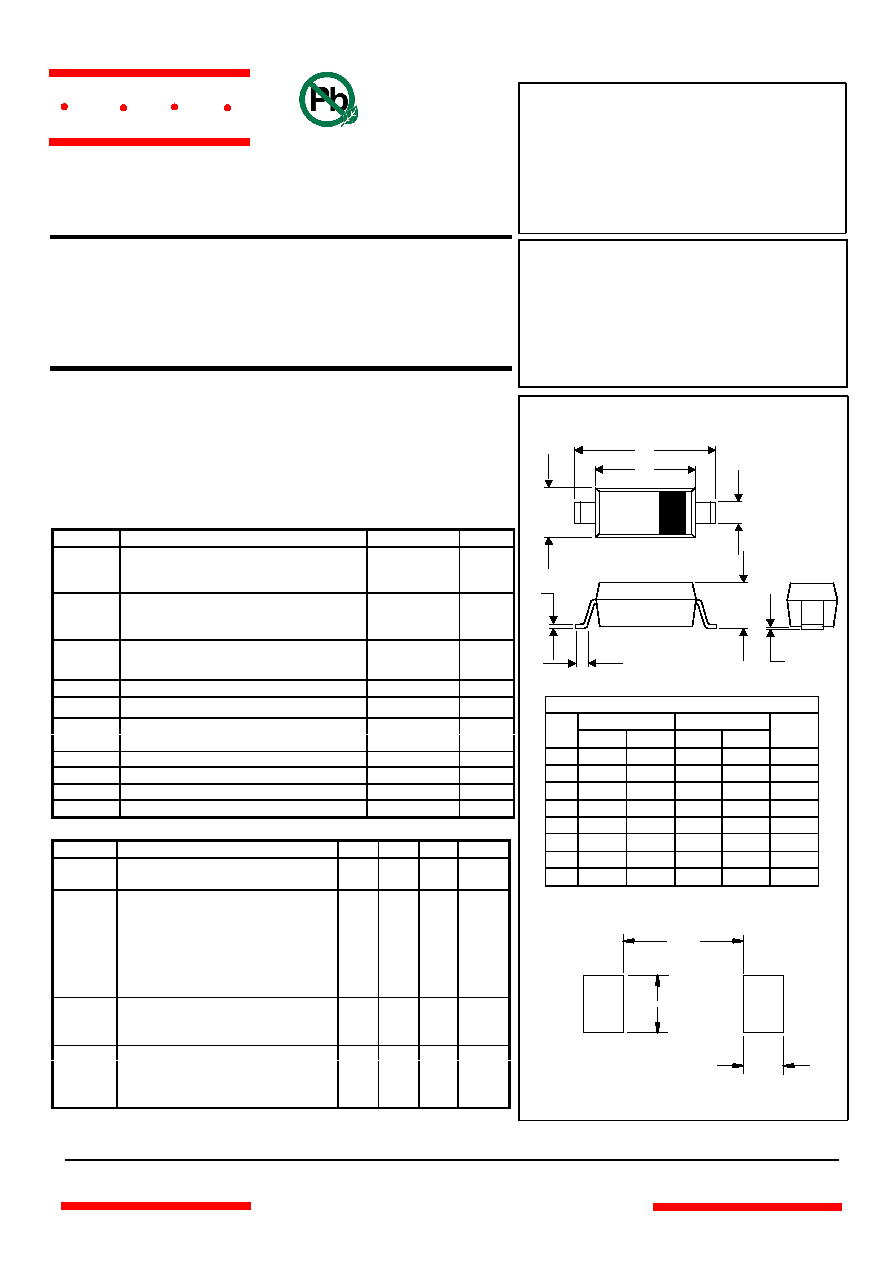

1 / 4 page  BAV19WS THRU BAV21WS 250mW Small Signal Diodes 120 to 250 Volts Features • Silicon Epitaxial Planar Diodes • For General Purpose • This diode is also available in other case. Mechanical Data • Marking code: BAV19WS=A8 BAV20WS=T2 BAV21WS=T3 Maximum Ratings Symbol Parameters Rating Unit VR Continuous Reverse Voltage BAV19WS BAV20WS BAV21WS 100 150 200 V VRRM Repetitive Peak Reverse Voltage BAV19WS BAV20WS BAV21WS 120 200 250 V Io 200 mA IFRM Repetitive Peak Forward Current at f>50Hz, Tamb=25 OC(1) 625 mA IFSM Ptot Power Dissipation at Tamb=25 OC(1) 250 mW RthJA Thermal Resistance Junction to Ambient Air 500 K/W TJ Operating Junction Temperature -65 to +150 OC TSTG Storage Temperature -65 to +150 OC Electrical Characteristics @ 25 OC Unless Otherwise Specified Symbol Parameter Min Typ Max Units VF Forward Voltage (IF=100mA) (IF=200mA) --- --- --- --- 1.00 1.25 V IR Leakage Current (VR=100V) BAV19WS (VR=100V, Tj=100 OC) BAV19WS (VR=150V) BAV20WS (VR=150V, Tj=100 OC) BAV20WS (VR=200V) BAV21WS (VR=200V, Tj=100 OC) BAV21WS --- --- --- --- --- --- --- --- --- --- --- --- 100 15 100 15 100 15 nA uA nA uA nA uA Ctot Capacitance (VR=0, f=1.0MHz) --- 1.5 --- pF trr Reverse Recovery Time (IF=30mA, IR=30mA) (Irr=3.0mA, RL=100OHMS) --- --- 50 ns omponents 20736 Marilla Street Chatsworth !"# $% !"# MCC www.mccsemi.com Revision: A 2011/01/01 DIMENSIONS INCHES MM DIM MIN MAX MIN MAX NOTE A .090 .107 2.30 2.70 B .063 .071 1.60 1.80 C .045 .053 1.15 1.35 D .031 .045 0.80 1.15 E .010 .016 0.25 0.40 G .004 .018 0.10 0.45 H .004 .010 0.10 0.25 J ----- .006 ----- 0.15 SOD-323 A B E C J D H G 0.022” 0.074" 0.027” SUGGESTED SOLDER PAD LAYOUT TM Micro Commercial Components 1 of 4 • Lead Free Finish/RoHS Compliant("P" Suffix designates RoHS Compliant. See ordering information) Notes: 1. Valid provided that leads are kept at ambient temperature Average Rectified Out put Current (Note1) Non-Repetitive Peak Forward Surge Current@t=1us @t=1s 2.5 0.5 A IFM Forward Continuous Current (Note1) 400 mA • Epoxy meets UL 94 V-0 flammability rating • Moisture Sensitivity Level 1 |
