BAV19WS...BAV21WS

Characteristics (Tj = 25° C)

Kennwerte (Tj = 25° C)

Forward voltage 1)

Durchlass-Spannung

IF = 100 mA

IF = 200 mA

< 1 V

< 1.25 V

Leakage current 1)

Sperrstrom

Tj = 25° C

BAV19WS

BAV20WS

BAV21WS

VR = 100 V

VR = 150 V

VR = 200 V

< 100 nA

Max. junction capacitance – Max. Sperrschichtkapazität

VR = 0 V, f = 1 MHz

< 5 pF

Reverse recovery time – Sperrverzug

IF = 30 mA über/ through IR = 30 mA bis / to IR = 1 mA

trr

< 50 ns

Thermal resistance junction to ambient air

Wärmewiderstand Sperrschicht – umgebende Luft

RthA

< 625 K/W 2

Marking – Stempelung

BAV19WS

BAV20WS

BAV21WS

Tested with pulses tp = 300 µs, duty cycles ≤ 2 %

gemessen mit Impulsen tp = 300 µs, Schaltverhältnis ≤ 2 %

Mounted on P.C. board with 3 mm2 copper pad at each terminal

Montage auf Leiterplatte mit 3 mm2 Kupferbelag (Lötpad) an jedem Anschluss

http://www.diotec.com

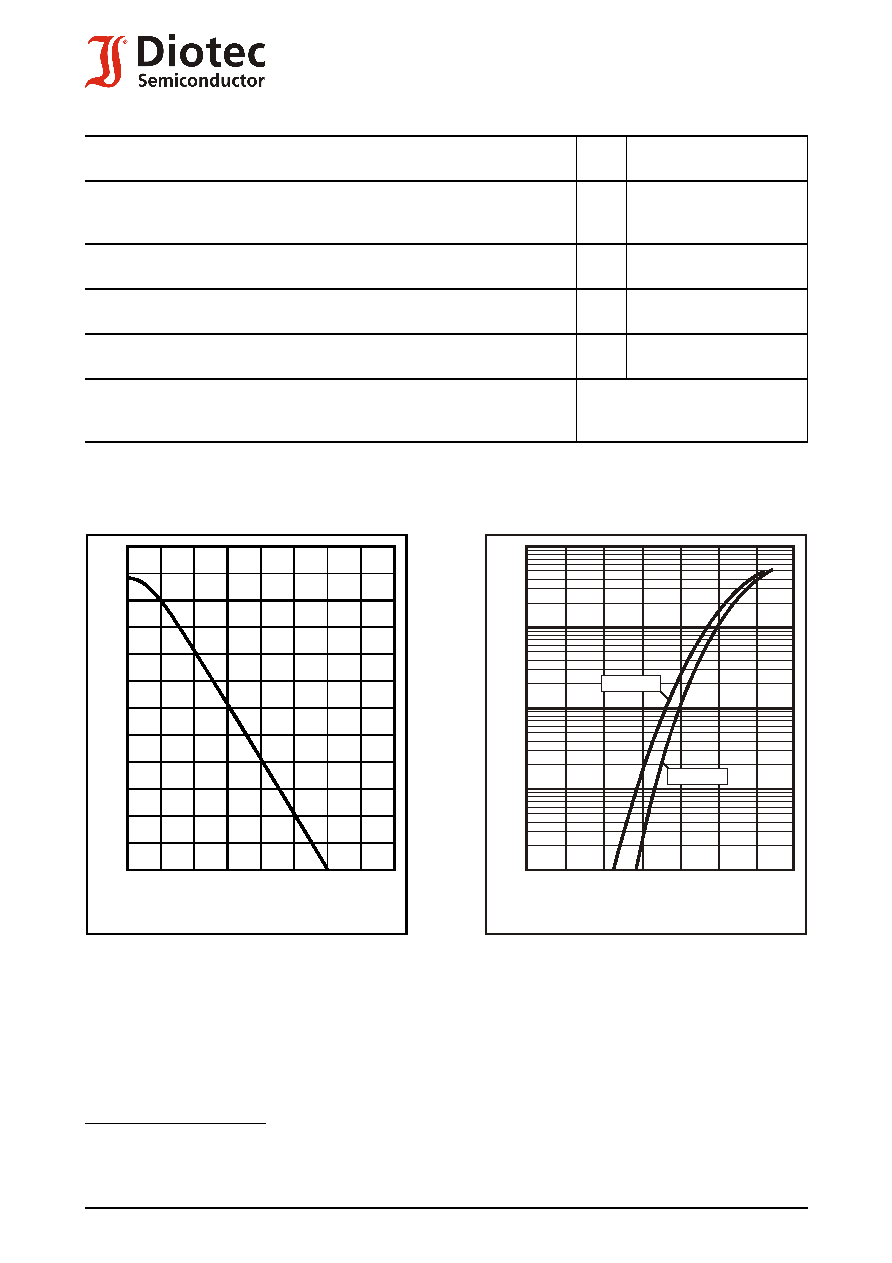

Forward characteristics (typical values)

Durchlasskennlinien (typische Werte)

[V] 1.4

1.0

0.8

0.6

0.4

[A]

10-4

10-3

10-2

10-1

T = 25°C

T = 125°C

[%]

tot

120

100

[°C]

150

100

Power dissipation versus ambient temperature )

Verlustleistung in Abh. von d. Umgebungstemp. )
