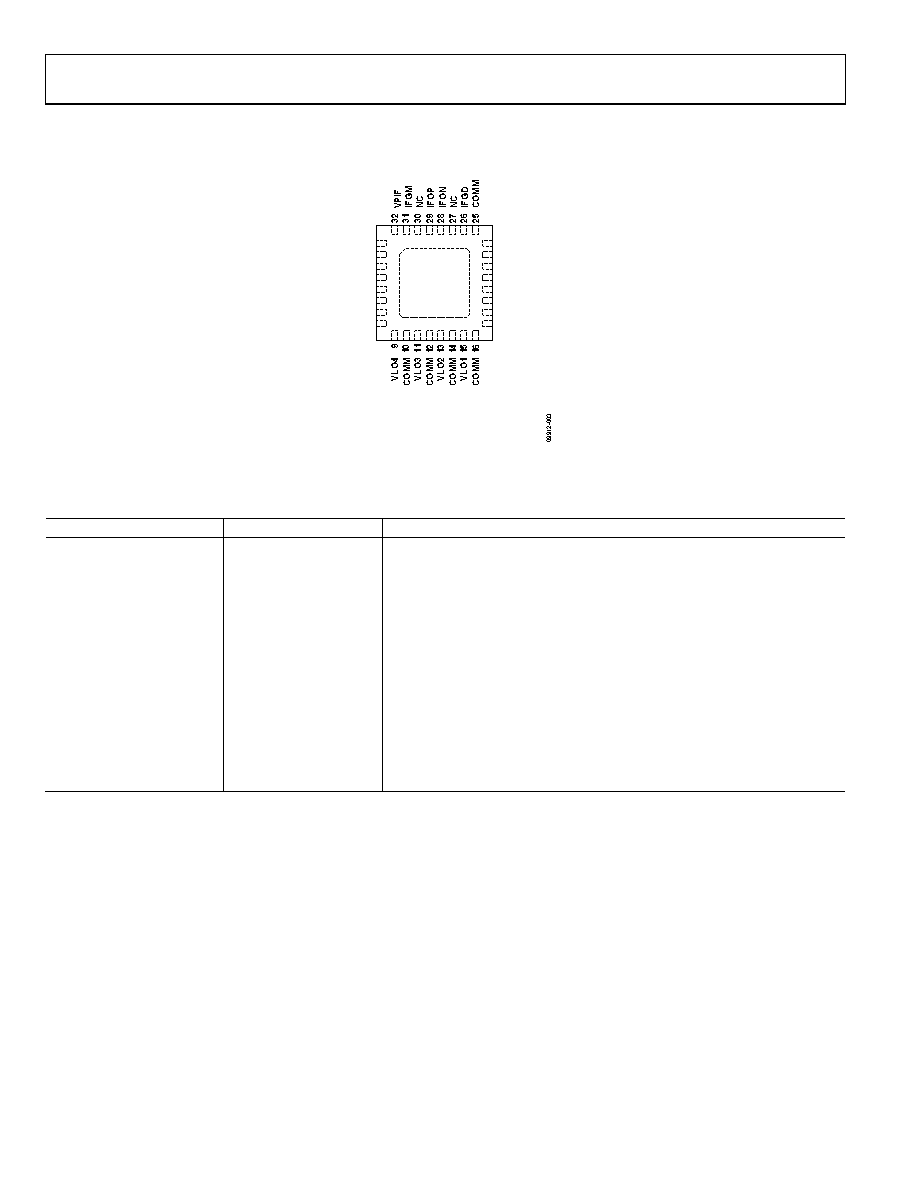

background image
ADL5811
Rev. 0 | Page 6 of 28
PIN CONFIGURATION AND FUNCTION DESCRIPTIONS
NOTES
1. NC = NO CONNECT. CAN BE GROUNDED.
2. EXPOSED PAD MUST BE CONNECTED
TO GROUND.
NC
RFCT
NC
RFIN
NC
NC
NC
NC
1
2
3
4
5
6
7
8
24
23
22
21
20
19
18
17
TOP VIEW
(Not to Scale)
ADL5811
NC
NC
NC
LOIP
LOIN
LE
DATA
CLK
Figure 3. Pin Configuration
Table 4. Pin Function Descriptions
Pin No.
Mnemonic
Description
1, 3, 5 to 8, 22 to 24, 27, 30
NC
No Connect. Can be grounded.
2
RFCT
RF Balun Center Tap (AC Ground).
4
RFIN
RF Input. Should be ac-coupled.
9, 11, 13, 15
VLO4, VLO3, VLO2, VLO1
Positive Supply Voltages for LO Amplifier.
10, 12, 14, 16, 25
COMM
Ground.
17, 18, 19
CLK, DATA, LE
Serial Port Interface Control.
20
LOIN
Ground Return for LO Input.
21
LOIP
LO Input. Should be ac-coupled.
26
IFGD
Supply Return for IF Amplifier. Must be grounded.
28, 29
IFOP, IFON
IF Differential Open-Collector Outputs. Should be pulled up to VCC using
external inductors.
31
IFGM
IF Amplifier Bias Control.
32
VPIF
Supply Voltage for IF Amplifier.
EPAD
Exposed pad must be connected to ground.
