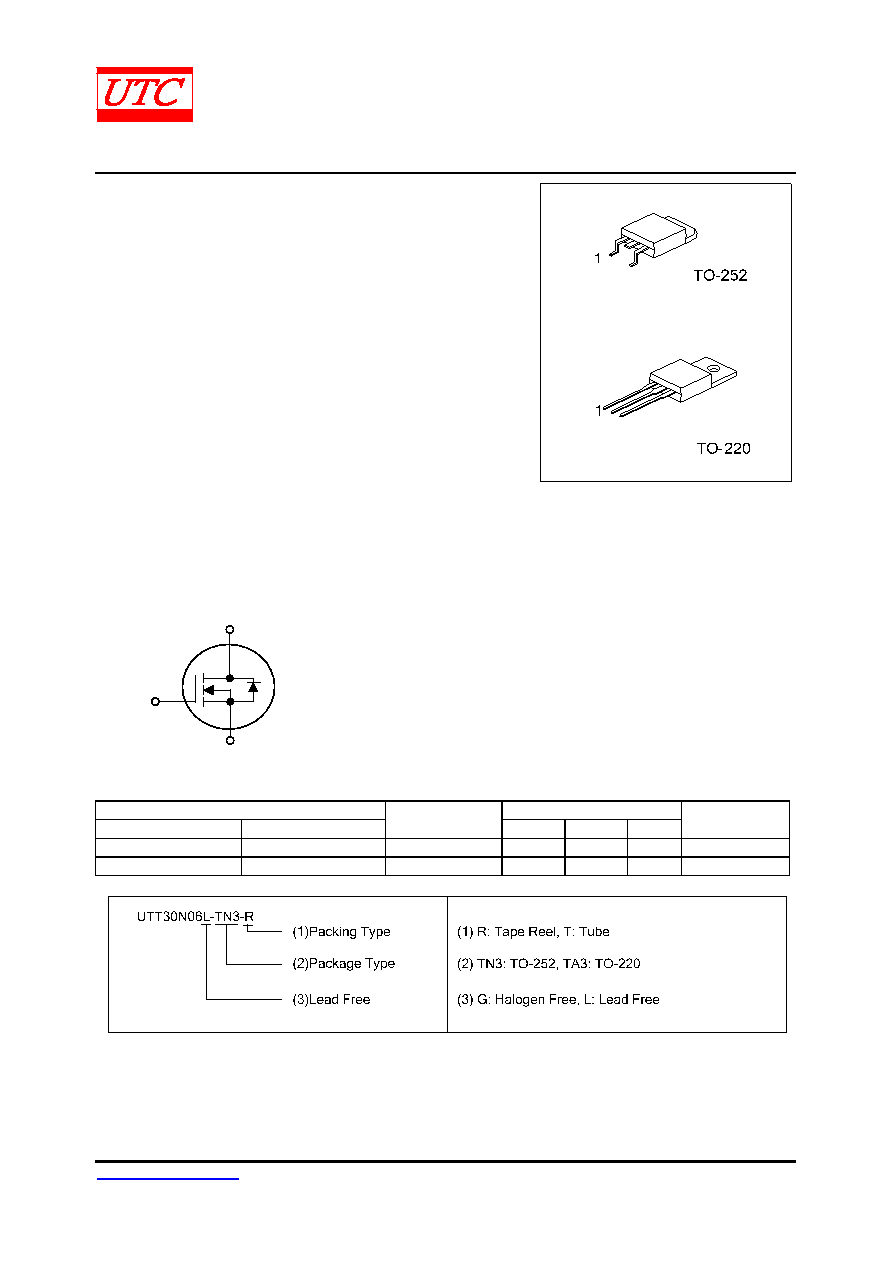

UNISONIC TECHNOLOGIES CO., LTD

UTT30N06

Power MOSFET

www.unisonic.com.tw

1 of 8

Copyright © 2011 Unisonic Technologies Co., Ltd

QW-R502-637.A

30A, 60V N-CHANNEL

POWER MOSFET

DESCRIPTION

The UTC UTT30N06 is a low voltage power MOSFET and is

designed to have better characteristics, such as fast switching time,

low gate charge, low on-state resistance and excellent avalanche

characteristics. This power MOSFET is usually used in automotive

applications of power supplies, high efficient DC to DC converters

and battery operated products.

FEATURES

* Ultra low gate charge ( typical 20 nC )

* Fast switching capability

* Avalanche energy specified

* Improved dv/dt capability

SYMBOL

1.Gate

3.Source

2.Drain

ORDERING INFORMATION

Ordering Number

Pin Assignment

Lead Free

Halogen Free

Package

1

2

3

Packing

UTT30N06L-TN3-R

UTT30N06G-TN3-R

TO-252

G

D

S

Tape Reel

UTT30N06L-TA3-T

UTT30N06G-TA3-T

TO-220

G

D

S

Tube

Note: Pin Assignment: G: Gate D: Drain

S: Source
