78MXXL-TM3-R Datasheet(PDF) 3 Page - Advanced Monolithic Systems Ltd

Part # 78MXXL-TM3-R
Description  3-TERMINALS 1A POSITIVE VOLTAGE REGULATOR
PDF  8 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  AMS [Advanced Monolithic Systems Ltd]
Direct Link   http://www.ams-semitech.com
Logo AMS - Advanced Monolithic Systems Ltd

78MXXL-TM3-R Datasheet(HTML) 3 Page - Advanced Monolithic Systems Ltd

  78MXXL-TM3-R Datasheet HTML 1Page - Advanced Monolithic Systems Ltd 78MXXL-TM3-R Datasheet HTML 2Page - Advanced Monolithic Systems Ltd 78MXXL-TM3-R Datasheet HTML 3Page - Advanced Monolithic Systems Ltd 78MXXL-TM3-R Datasheet HTML 4Page - Advanced Monolithic Systems Ltd 78MXXL-TM3-R Datasheet HTML 5Page - Advanced Monolithic Systems Ltd 78MXXL-TM3-R Datasheet HTML 6Page - Advanced Monolithic Systems Ltd 78MXXL-TM3-R Datasheet HTML 7Page - Advanced Monolithic Systems Ltd 78MXXL-TM3-R Datasheet HTML 8Page - Advanced Monolithic Systems Ltd
Zoom Inzoom in Zoom Outzoom out
 3 / 8 page
background image

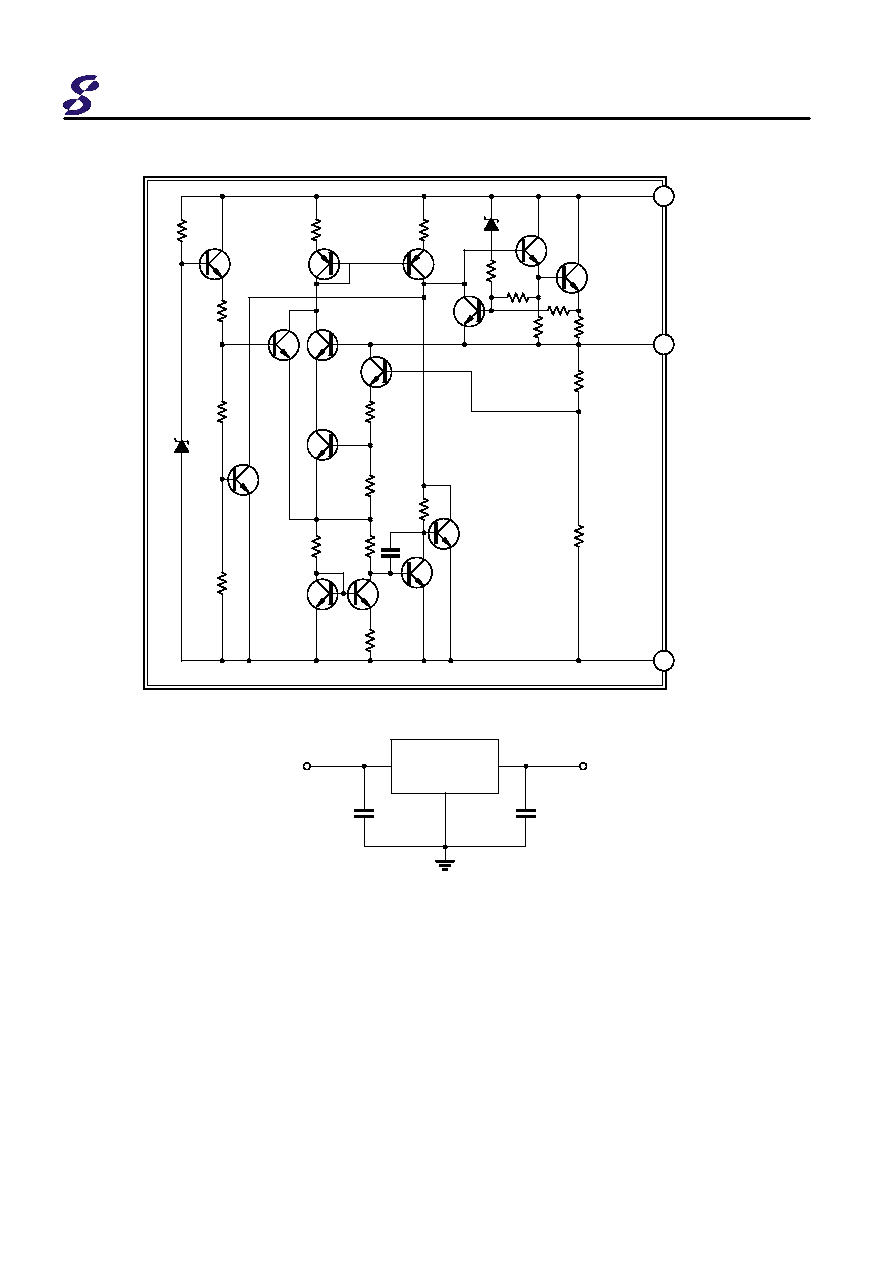

BLOCK DIAGRAM
GND
OUTPUT
INPUT
R13
R17
R9
Z2
T12
T14
R19
R18
R12
R11
R10
R8
T8
T9
T13
T10
R14
T11
T5
T6
R5
T4
Z1
R15
T15
R16
R1
R2
R4
C1
R6
T7
T3
T1
T2
R3
R7
1
3
2
TYPICAL APPLICATION CIRCUIT
AMS78MXX
3
2
1
VIN
VoUT
CO=0.1 μF
CI=0.33 μF
Note: Bypass capacitors are recommended for optimum stability and transient response and should be located as
close as possible to the regulators.
Advanced Monolithic Systems http://www.ams-semitech.com
3
AMS78MXX
