Part #	A-DSF37LPIII-FP-R

Description	D-SUB FLAT RIBBON CABLE ASSEMBLY

PDF	1 Pages

Scroll/Zoom	100%

Manufacturer	ASSMANN [Assmann Electronics Inc.]

Direct Link	http://www.assmann.us

Logo

1 / 1 page

ASSMANN

Electronics, Inc.

THIS DRAWING IS UNPUBLISHED

All International Rights Reserved

1840 W. Drake Drive, Suite 101 • Tempe, AZ 85283

Toll Free: 1-877-277-6266 • Email: info@usa-assmann.com

RoHS

Compliant

ITEM NO.

TITLE

= Assmann logo

A-DSF37LPIII/FP-R

D-Sub Flat Ribbon Cable Assembly - 37 pin,

Male

Unit: MM±0.25MM

Quality Control: Important Dimension to check

Material:

• Insulator: Glass-Filled Thermoplastic PBT,

UL94V-0

• Contact: Copper alloy

• Contact Resistance: 20M

Max @1 Amp DC

• Insulation Resistance: 1,000M

@500V DC

• Dielectric Withstanding Voltage: 1,000V AC/

rms 60Hz for 1 minute

• Current Rating: 3 Amp

• Voltage Rating: 250V AC/rms 60Hz

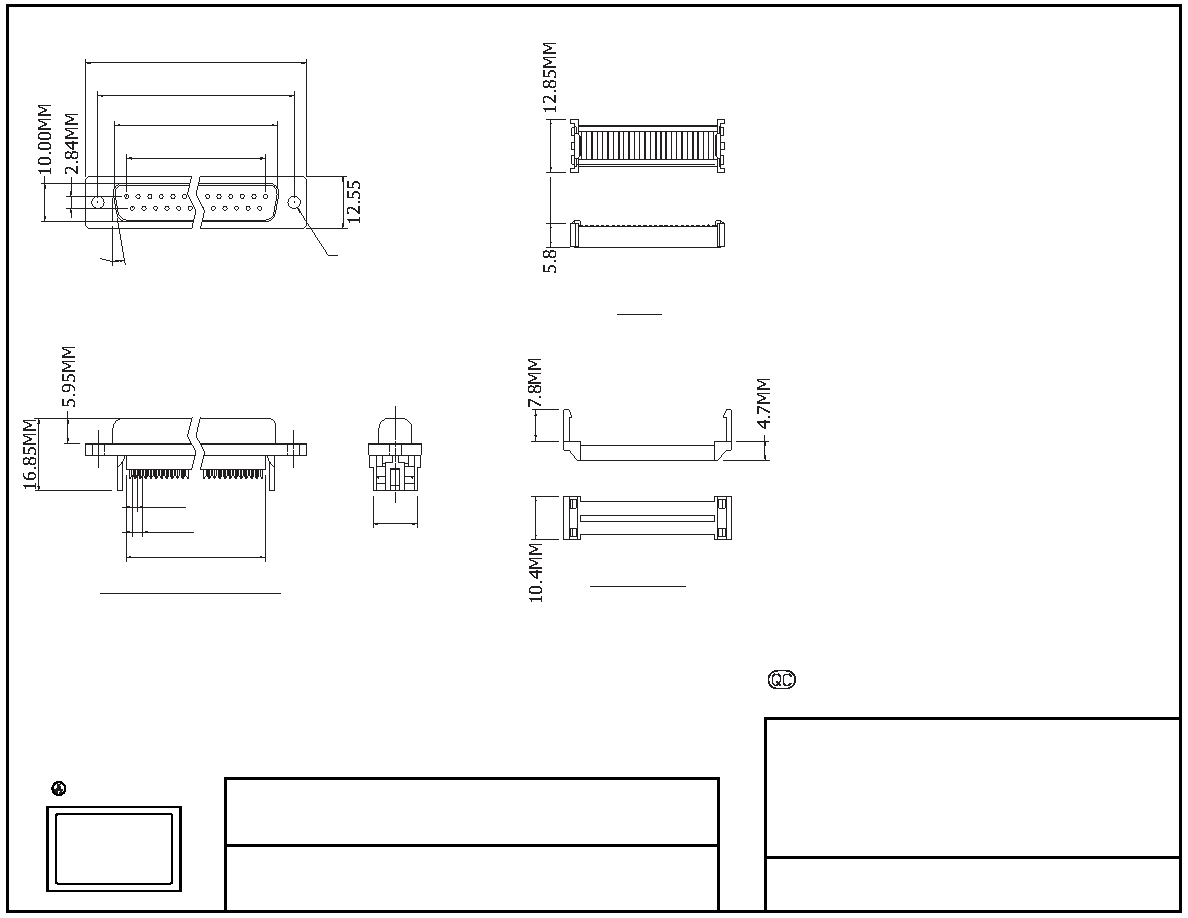

69.25MM

63.50MM

55.60MM

49.86MM

ø3.05MM Clear Hole

10°

Cover

With Insulator Support

1.27MM

2.54MM

50.30MM

10.6

Strain Relief
