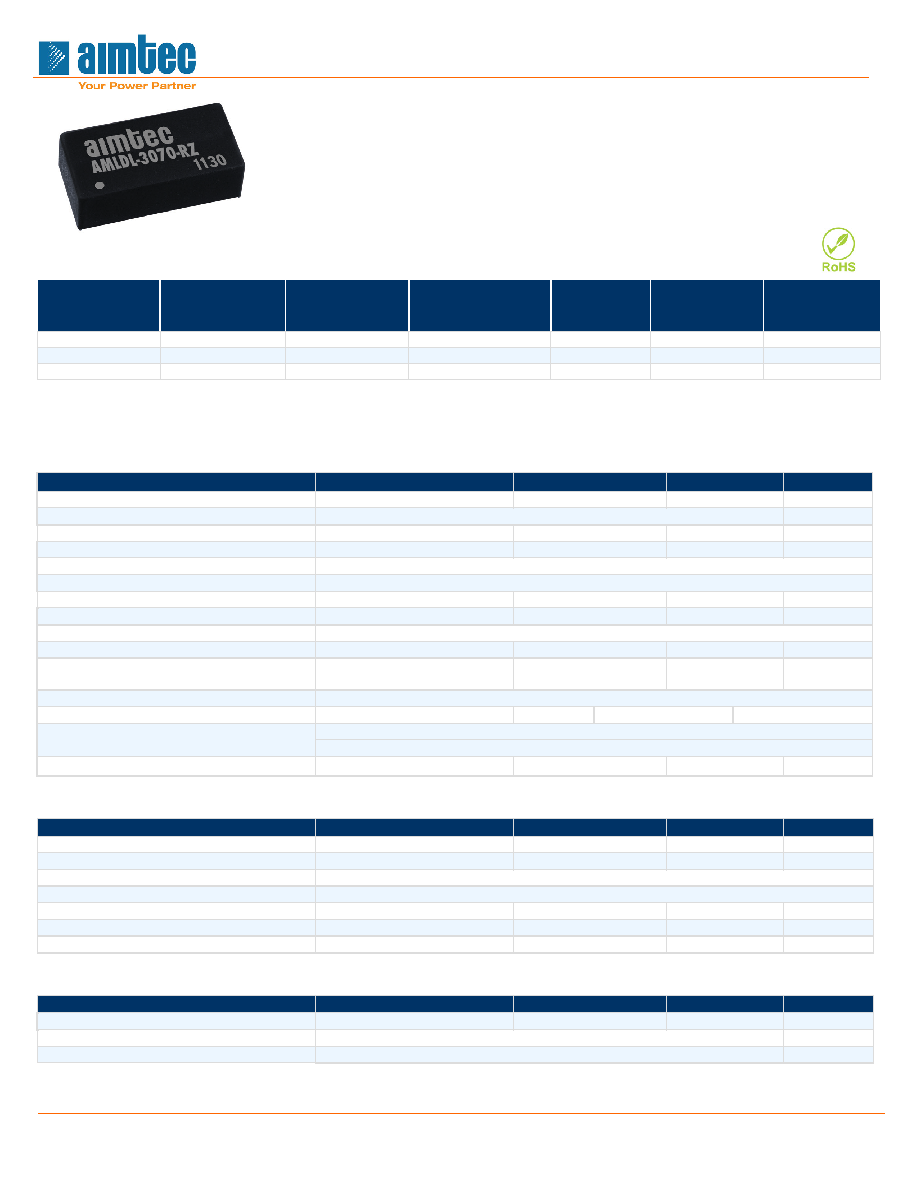

Series AMLDL-RZ

Up to 700mA | LED Driver

www.aimtec.com

Tel: +1 514 620 2722

Toll free: + 1 888 9 AIMTEC

(924 6832)

F 051e R12.E

1 of 17

North America only

FEATURES:

Models

Single output

Model

Input Voltage

(V)

Output Voltage

(V)

Maximum Rated

Current (mA)

Max

Capacitive

Load (uF)

Efficiency (%)

Package Type

AMLDL-3050-RZ

7-30

2-28

500

47

95

DIP14

AMLDL-3060-RZ

7-30

2-28

600

47

95

DIP14

AMLDL-3070-RZ

7-30

2-28

700

47

95

DIP14

NOTE: All specifications in this datasheet are measured at an ambient temperature of 25°C, humidity<75%, nominal input voltage and at

rated output load unless otherwise specified.

Input Specifications

Parameters

Nominal

Typical

Maximum

Units

Voltage range

24

7-30

VDC

Filter

Capacitor

Absolute Maximum Rating

40

VDC

Peak Input Voltage time

500

ms

DC/DC ON (Leave open if not used)

ON –Open or 0.3V<Vadj<1.25

DC/DC OFF

OFF(shutdown) – Vadj<0.15

Maximum Remote pin drive current

Vadj = 1.25V

1

mA

Quiescent Current in Shutdown mode

Vin = 30V, Vadj <0.15

0.25

mA

On/Off Control (Digital Control)

Max PWM Frequency 1KHz

Minimum Switch ON/OFF time

200

ns

On/Off Control (Analog Dimming Control)

(Leave open if not used)

Input voltage range

0.3-1.25

VDC

Drive with DC Voltage

0.3V < VADJ<1.25V to adjust output current from 25% to 100%

Output current adjustment*

Vin-Vout<20

%

Control Voltage Range limits

ON – 0.3< Vadj <1.25V

OFF – Vadj< 0.15

Maximum Analog pin drive current

Vadj = 1.25V

25-100

1

mA

Output Specifications

Parameters

Conditions

Typical

Maximum

Units

Current accuracy

±10

%

Output Voltage range

V input = 30V

2-28

VDC

Short Circuit protection

Regulated at the rated current for each model

Output no load Protection

Continuously

Max load capacitance

47

µF

Temperature coefficient

Ta = -40 to +85°C

±0.05

Ripple & Noise

20MHz Bandwidth

450

mV p-p

General Specifications

Parameters

Conditions

Typical

Maximum

Units

Switching frequency

100% load

70 - 450

KHz

Operating temperature

-40 to +71

Storage temperature

-40 to +125

•

Step Down DC/DC LED driver

•

Operating Temperature range -40ºC to +71ºC

•

Constant current output

•

Open and Short LED Protection

•

Wide (4:1) input voltage range

•

PWM/Digital and Analog Voltage dimming

•

High efficiency up to 95%

•

Remote ON/OFF Control
