Thermal Performance

For more information, to find a distributor or to place an order, visit www.Qats.com or

call: 781.769.2800 (North America); +31 (0) 3569 84715 (Europe).

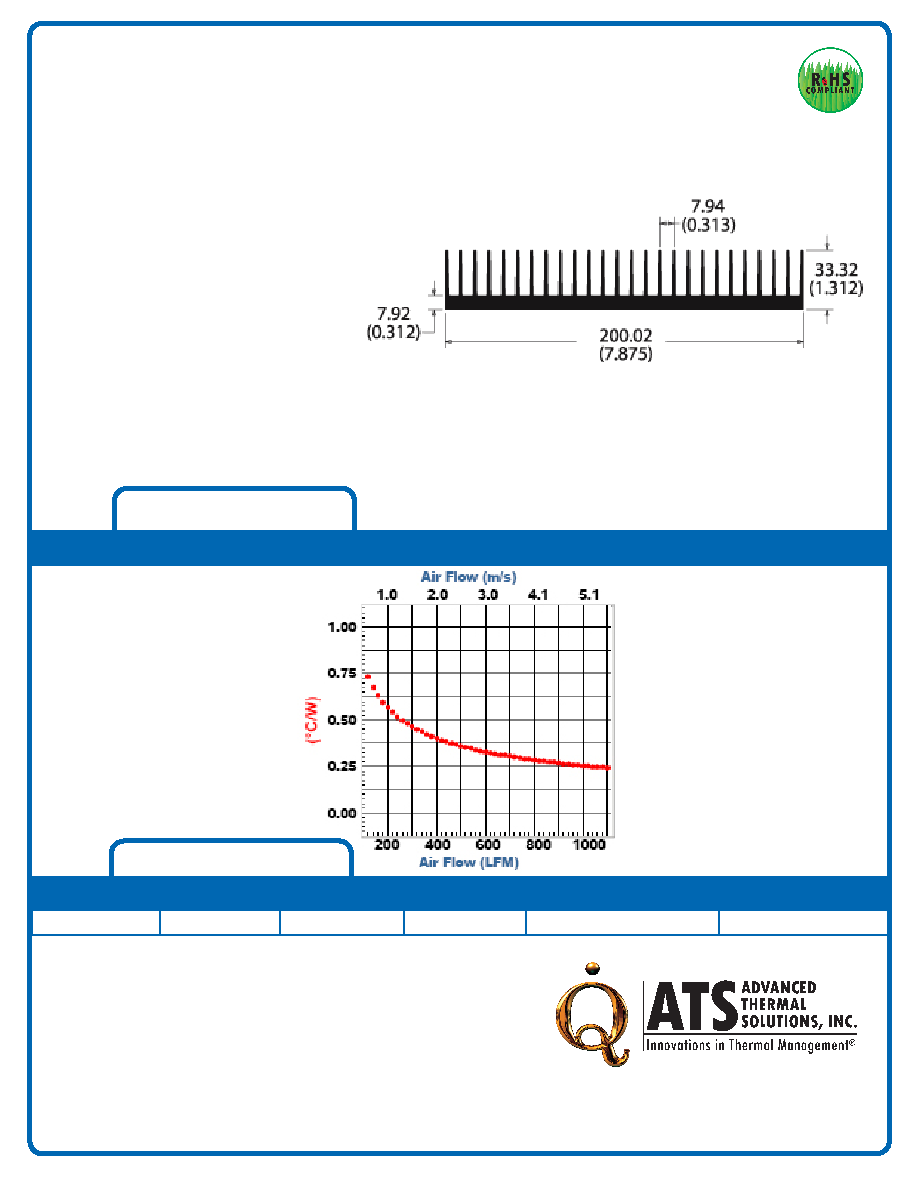

ATS PART # ATS-EXL26-300-R0

Features & Benefits

ATS Extrusion Profiles

*Image above is for illustration purposes only.

NoTES:

Thermal curve based on 76 mm length.

Thermal performance data are provided for reference only. Actual

performance may vary by application.

ATS reserves the right to update or change its products without notice to

improve the design or performance.

Contact ATS to learn about custom options available.

1)

2)

3)

4)

304.8 mm

200.2 mm

33.32 mm

7.94 mm

7.92 mm

NONE

HEAT SINK THERMAL RESISTANCE

Aluminum extrusions are the most cost-

effective solution for the majority of

electronic cooling applications

This extrusion profile has 27 fins

Extrusion type is straight fin, AL-6063

»

»

»

»

Product Details

LENGTH

WIDTH

HEIGHT

FIN SPACING

BASE THICKNESS

FINISH
