The Engineering Spec. For 3/4W 2010

Low Resistance Chip Resistor

3-2 Marking

Resistance value is marked on the top surface.

Ex.)

5m

Ω → R005

47m

Ω → R047

4. Ratings

4-1 Specification

Power Ratings*

3/4W

Resistance Value

4 ~ 50m

Ω

Temperature Coefficient of Resistance

(

≤10mΩ) 100ppm/℃

(>10m

Ω) 50ppm/℃

Resistance Tolerance

±1% , ± 2% , ±5%

Insulation Resistance

Over 100M

Ω

Maximum Working Voltage (V)

( P*R)

1/2

Note * :

Power ratings is based on continuous full load operation at rated ambient temperature of

70℃. For resistors operated at ambient temperature in excess of 70℃, the maximum

load shall be derated in accordance with the following curve.

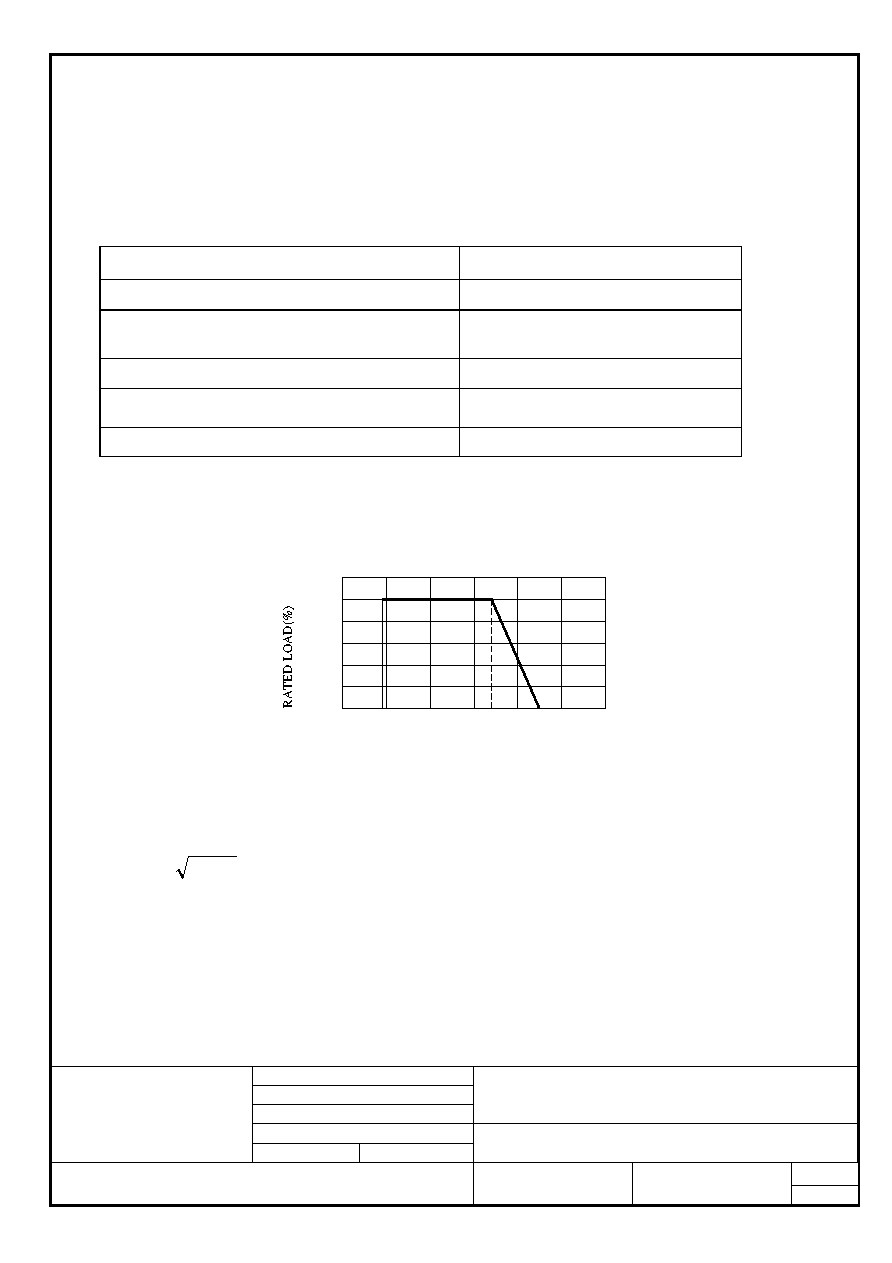

Figure 2.：Power Temperature Derating Curve

4-2 Rated Voltage

The rated voltage shall be determined by the following expression.

R

P

V

×

=

Where V：Rated voltage (V)

R：Nominal resistance value (

Ω)

P：Rated dissipation (W)

4-3 Operation and Storage Temperature Range

-55℃ to

+125℃

0

70

100

125

-55

AMBIENT TEMPERATURE(

)

℃
