SPECIFICATION FOR APPROVAL

DOCUMENT

: RLI00000N

REVISION

: A1

PAGE

: 5 OF 11

5-1-5 Voltage Proof

Resistance Change :

± (0.5%)

Without damage by flashover, fire or breakdown, as shown below.

The resistor shall be tested as shown in paragraph 4-1-4

Refer to IEC 60115-1 Sub-clause 4.7.

5-2 Mechanical

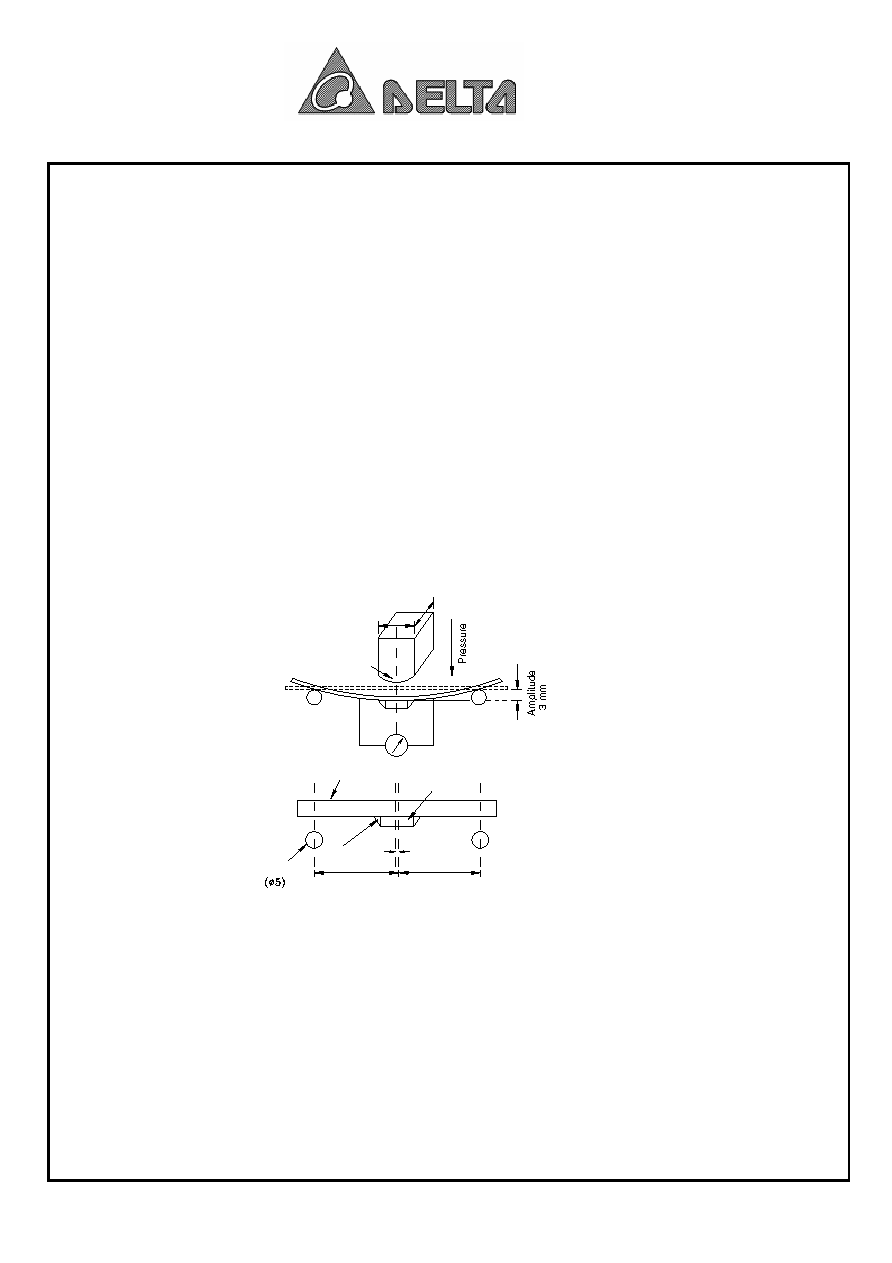

5-2-1 Terminal Strength

Resistance Change :

± (0.5%)

Without mechanical damage such as breaks.

Electrical characteristics shall be satisfied.

If there are electrodes on both surfaces, it shall satisfy the above specifications on whichever

surface may be fixated.

Bending Amplitude : 3 mm

30 seconds

Refer to IEC 60115-1 Sub-clause 4.33.

45

45

Solder

Supports

Within ± 2mm

Test PC Board

Sample

Press Jig

Refer to EIAJ RC-2530

Unit : mm

R230

20

50
