DATASHEET | JULY 2013

FIBER OPTICS

| REV 2013.07

Information contained herein is deemed reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specification at any time without notice.

RF and Optical Characteristics

Parameter

Min

Typ

Max

Units

Operating Wavelength

1290

1300

1330

nm

Lower Bandwidth

-

2

5

MHz

Upper Bandwidth

350

400

-

MHz

Optical Output Power

-8.0

-7.0

-6.0

dBm

Optical Loss Range

0

-

9

dB

RF Impedance

-

75

-

Ohms

Carrier-to-Noise Ratio

See Graph

dB

System performance specifications indicated for use with 62.5/125 µm multimode fiber.

Electrical Characteristics

Parameter

Min

Typ

Max

Units

Transmitter Power Supply Voltage

+9.0

-

+11.0

VDC

Receiver Power Supply Voltage

+9.0

-

+11.0

VDC

Transmitter Power Supply Current

-

250

270

mA

Receiver Power Supply Current

-

100

110

mA

Physical Characteristics

Parameter

Min

Typ

Max

Units

Weight

-

6

170

-

oz.

g

Dimensions

-

3.75 x 2.95 x

1.12

95 x 75 x 29

-

in.

mm

Environmental Characteristics

Parameter

Min

Typ

Max

Units

Operating Temperature Range

+10

-

+45

Storage Temperature Range

-20

-

+70

Relative Humidity

10

-

95

%

2801 PRO 5 Channel Multimode

CATV VSB/AM Video Link

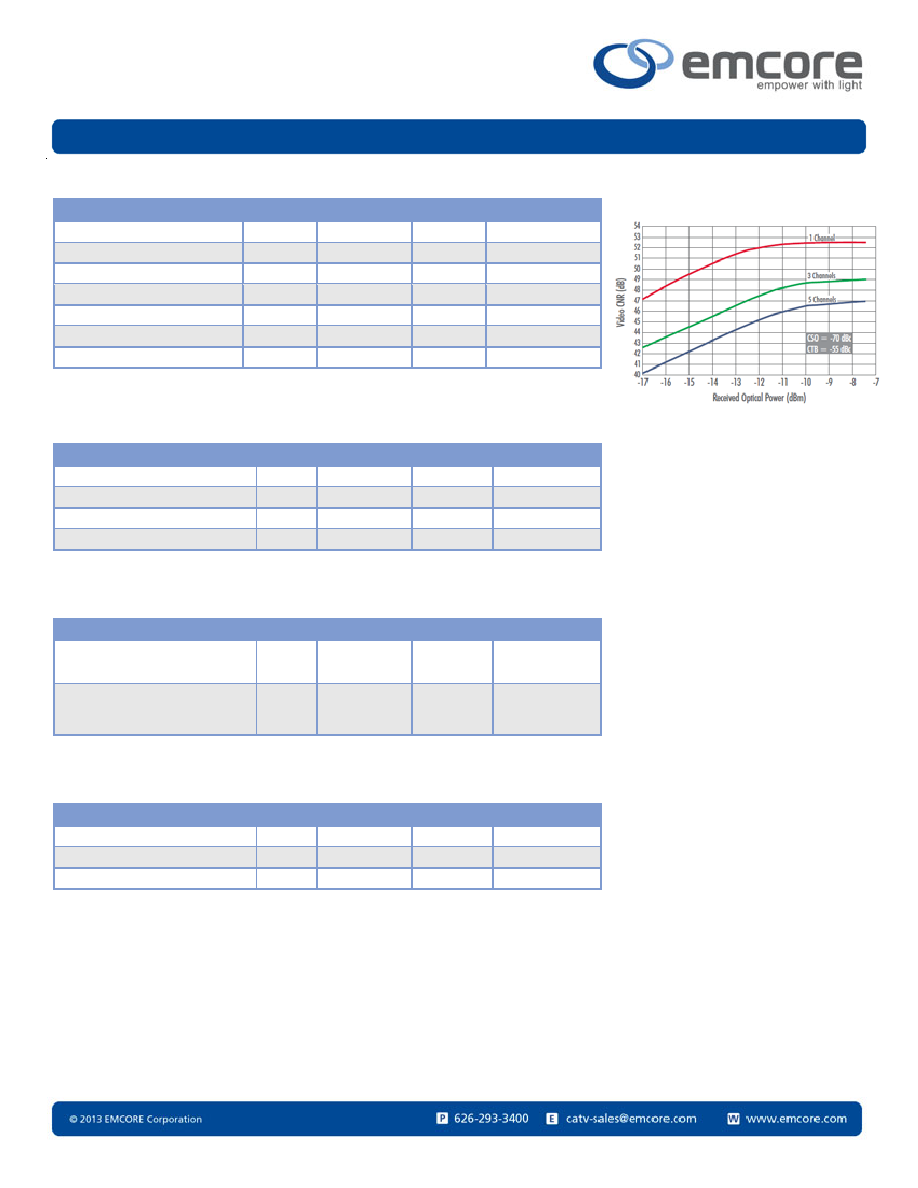

Carrier-to-Noise Performance
