FT230X USB TO BASIC UART IC
Version 1.2
Document No.: FT_000566 Clearance No.: FTDI# 260

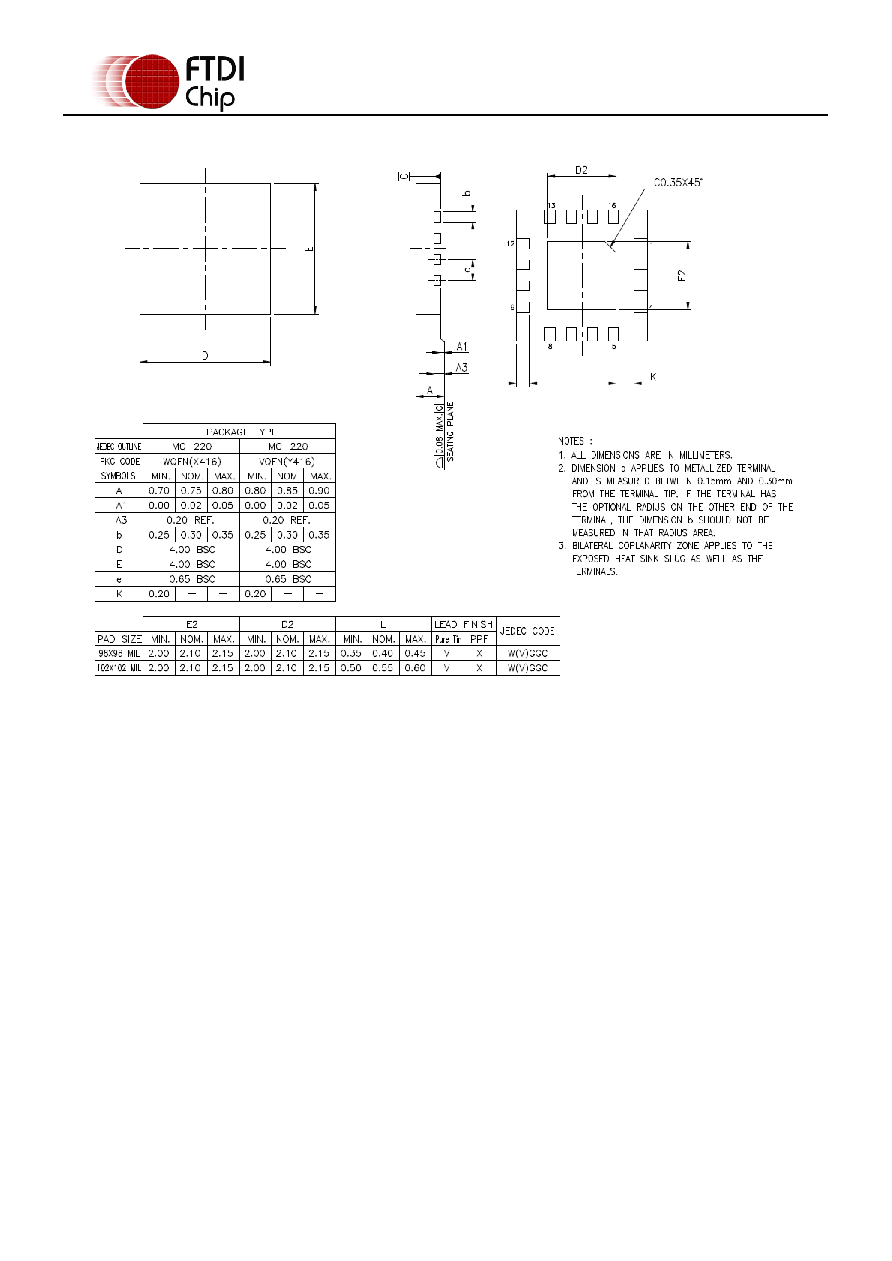

9.3 QFN-16 Package Mechanical Dimensions
Figure 9.3 QFN-16 Package Dimensions
The FT230XQ is supplied in a RoHS compliant leadless QFN-16 package. The package is lead (Pb) free,
and uses a ‘green’ compound. The package is fully compliant with European Union directive 2002/95/EC.
This package is nominally 4.00mm x 4.00mm. The solder pads are on a 0.65mm pitch. The above
mechanical drawing shows the QFN-16 package. All dimensions are in millimetres.
The centre pad on the base of the FT230XQ is internally connected to ground.
.
