Pushbuttons and Indicating Lights
M22 Modular Pushbuttons

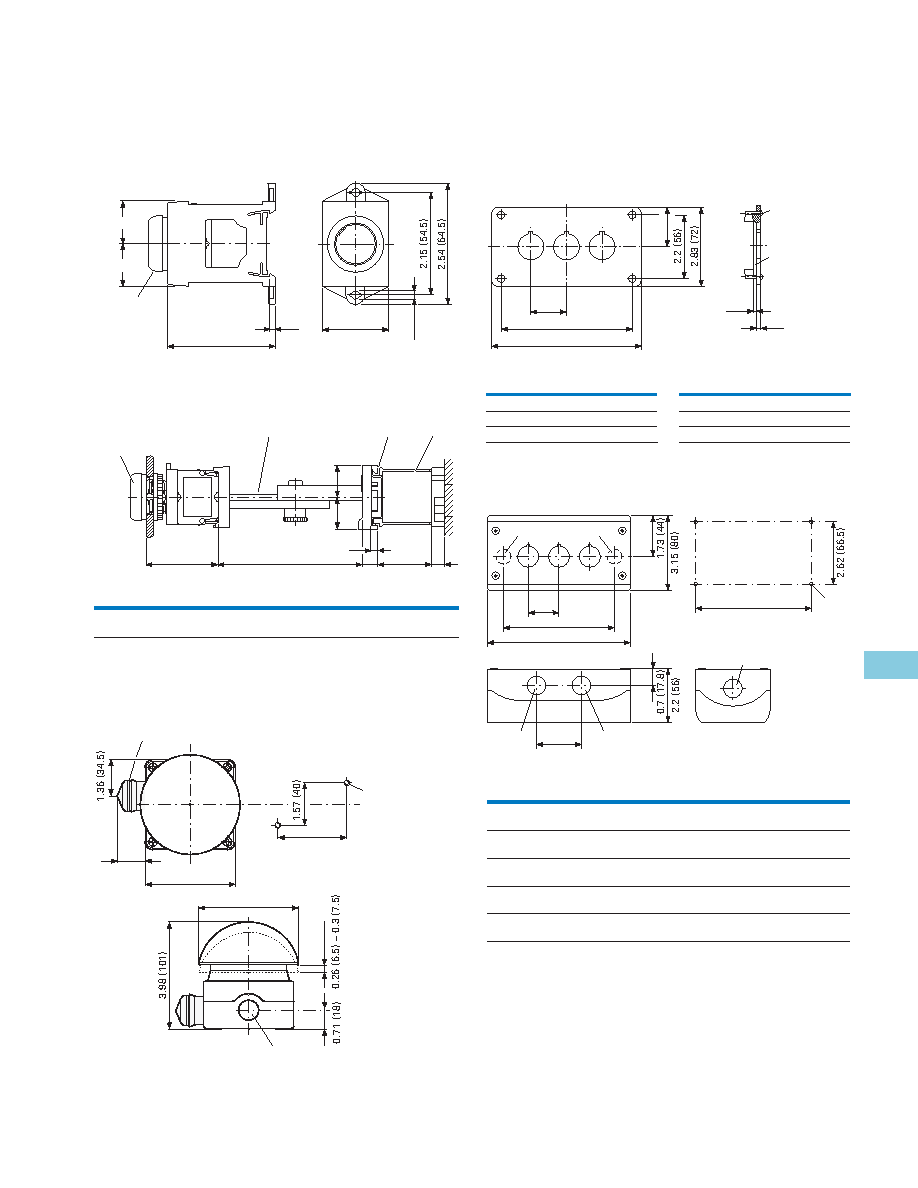

Approximate dimensions in Inches (mm).
DIN-Rail Mounting Adapter
Pushbuttons and Indicating Lights with M22-TC Telescopic
Clip and M22-TVC Extension
Palm Switches
Front Mounted Mounting Plate
Base Mounted Surface Mounting Enclosure
0.88 (22.4)
2.23 (56.7)
0.12 (3.1)
1.39 (35.2)
0.18 (4.5 (M4))
M22-D...
M22-L...
M22-W...
M22-P...
0.88 (22.4)
AB
F
G
E
C
D
H
Top-hat rail to IEC/EN 60715.
AB
C
D
E
F
GH
1.77
(45)
2.36–3.94
(60–100)
0.79
(20)
0.79
(20)
0.18
(4.5)
0.39
(10)
154
(39)
0.39
(10)
M22-D…
M22-L…
M22-W…
M22-P…
M22-TC
M22-TCV
L-...
1.42 (36)
M5 x 20
2.56 (65)
Ø94
3.35 (85)
FAK…
3 x M20 lateral, 1 x M16 in bottom.
1.42 (36)
0.12 (3)
0.1 (2.5)
4 x M4 x 16
e
a1
1.3 (33)
M22-E...
Catalog
Number
a1
e
Catalog
Number
a1
e
M22-E(Y)
2.83 (72)
2.21 (56)
M22-E4
6.73 (171)
6.10 (155)
M22-E2
4.13 (105)
3.50 (89)
M22-E5
8.03 (204)
7.40 (188)
M22-E3
5.43 (138)
4.80 (122)
M22-E6
9.33 (237)
8.70 (221)
M20
a
b
1.3 (33)
1.89 (48)
M20/M25
e
M4
M20
M20
M20
M22-I...
Catalog
Number
Mounting
Locations
a
b
e
Cable Entries
M22-I(Y)1
12.83
(72.0)
1.68
(42.6)
2.30
(58.5)
2 x M16
3 x M20
2 x M25
M22-I2
24.72
(120.0)
3.37
(85.6)
4.19
(106.5)
2 x M20
3 x M20
2 x M25
M22-I3
36.02
(153.0)
4.67
(118.6)
5.49
(139.5)
2 x M20
2 x M25
4 x M20
M22-I4
46.10
(135.0)
5.97
(151.6)
6.79
(172.5)
2 x M20
2 x M25
4 x M20
M22-I6
69.92
(252.0)
8.57
(217.6)
9.39
(238.5)
2 x M20
2 x M25
4 x M20
