AIRCHECKER

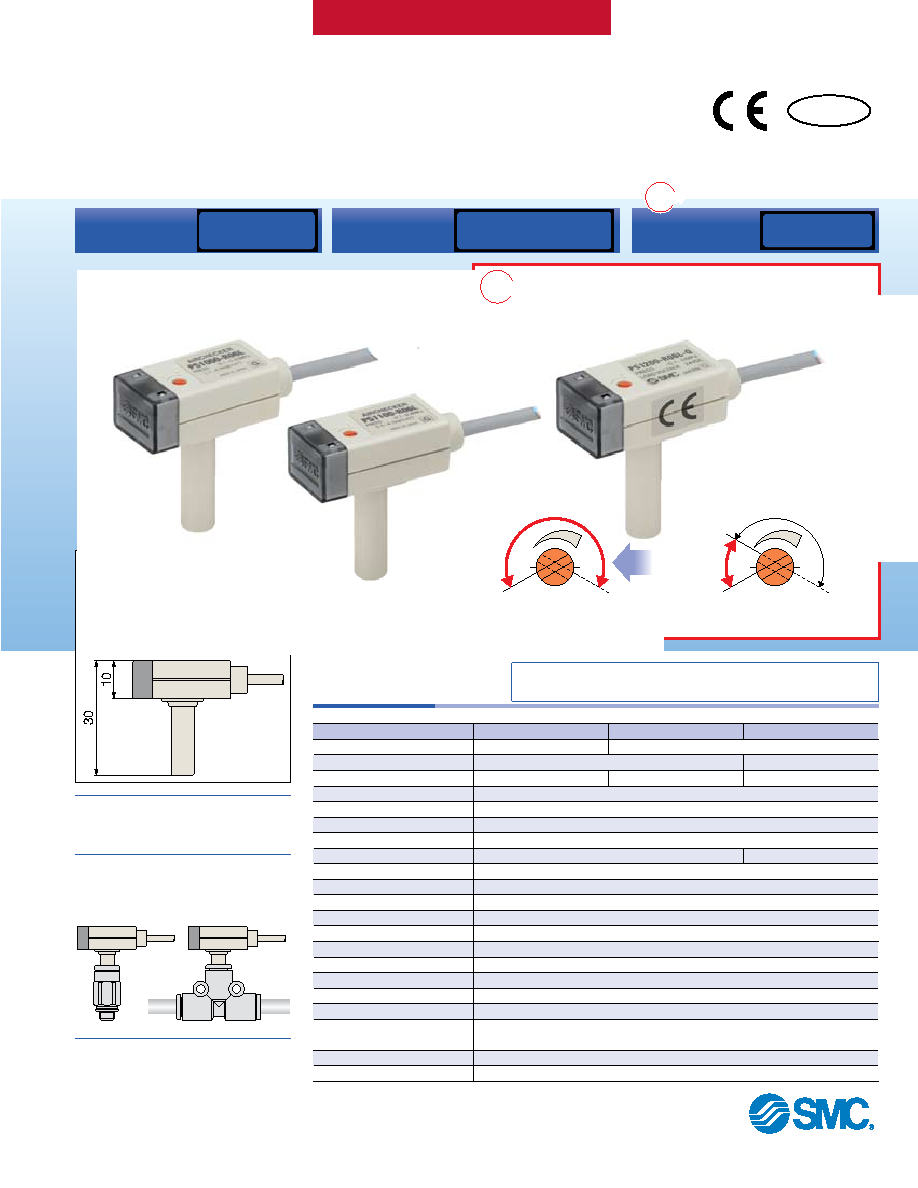

Air Checker:

Electronic Pressure Switch

Applicable fluid: Air, Non-corrosive gas, Non-flammable gas

Series

PS1000

/1100/1200

New

New

RoHS

Compact/lightweight

electronic pressure switch

Addition of vacuum range

Easy adjustment of pressure setting trimmer

Positive pressure

adjustment range

14.5 psi

(–100 kPa)

0 psi

(0 kPa)

14.5 psi

(–0.1 MPa)

0 psi

(0 MPa)

PS1000/1100

65 psi/ 58 psi

(0.45 MPa/0.4 MPa)

Easy mounting

Plug-in reducer port for

One-touch fittings

2-wire type

Applicable to either NPN or PNP output

High visibility

A large LED display for an easily

visible switch

Switch output

Max. operating pressure

Set pressure range

Fluid

Indicator light

Temperature characteristics

Repeatability

Hysteresis

Load voltage

Load current

Leakage current

Internal voltage drop

Operating temperature range

Insulation resistance

Withstand voltage

Weight

Port size

Enclosure

Wetted parts material

Standards

Model

PS1200

73 psi (500 kPa)

-14.5 to 0 psi (–100 to 0 kPa)

10% F.S. or less

PS1000

Present pres. Setting pres.: ON

-14.5 to 65 psi (–0.1 to 0.45 MPa)

PS1100

-14.5 to 58 psi (–0.1 to 0.4 MPa)

Air/Non-corrossive gas/Non-flammable gas

ON: When red LED turns on

3% F.S.

1% F.S.

12 to 24 VDC 10%, Ripple (p-p) 10% or less

5 to 40 mA

1 mA or less

5 V or less

32 to 140°F (0 to 60 C) (No condensation)

2 M or more (500 VDC measured via megohmmeter) between terminals and housing

1000 VAC (in 50/60 Hz) for 1 minute between terminals and housing

5 g (Excluding lead wire)

R06: ø6 reducer, R07: 1/4" reducer

IP40

Pressured sensor part: Silicon, Body part: PBT, O-ring: HNBR

CE (Option), RoHS

Specifications

145 psi (1 MPa)

4% F.S. or less

Grommet oil-resistant vinyl cabtire code 2 cores, ø2.55, 3 m,

Note) For wiring, refer to the Operation Manual on our website, http://www.smcworld.com

Present pres. Setting pres.: ON

Refer to Best Pneumatics No. 6 for Pressure Switch Precautions, and the

Operation Manual on our website for Specific Product Precautions.
