2SA1483-R Datasheet(PDF) 1 Page - Guangdong Kexin Industrial Co.,Ltd |
|
|
|||||||||||||||||||||||||||||
2SA1483-R Datasheet(HTML) 1 Page - Guangdong Kexin Industrial Co.,Ltd |
|
|

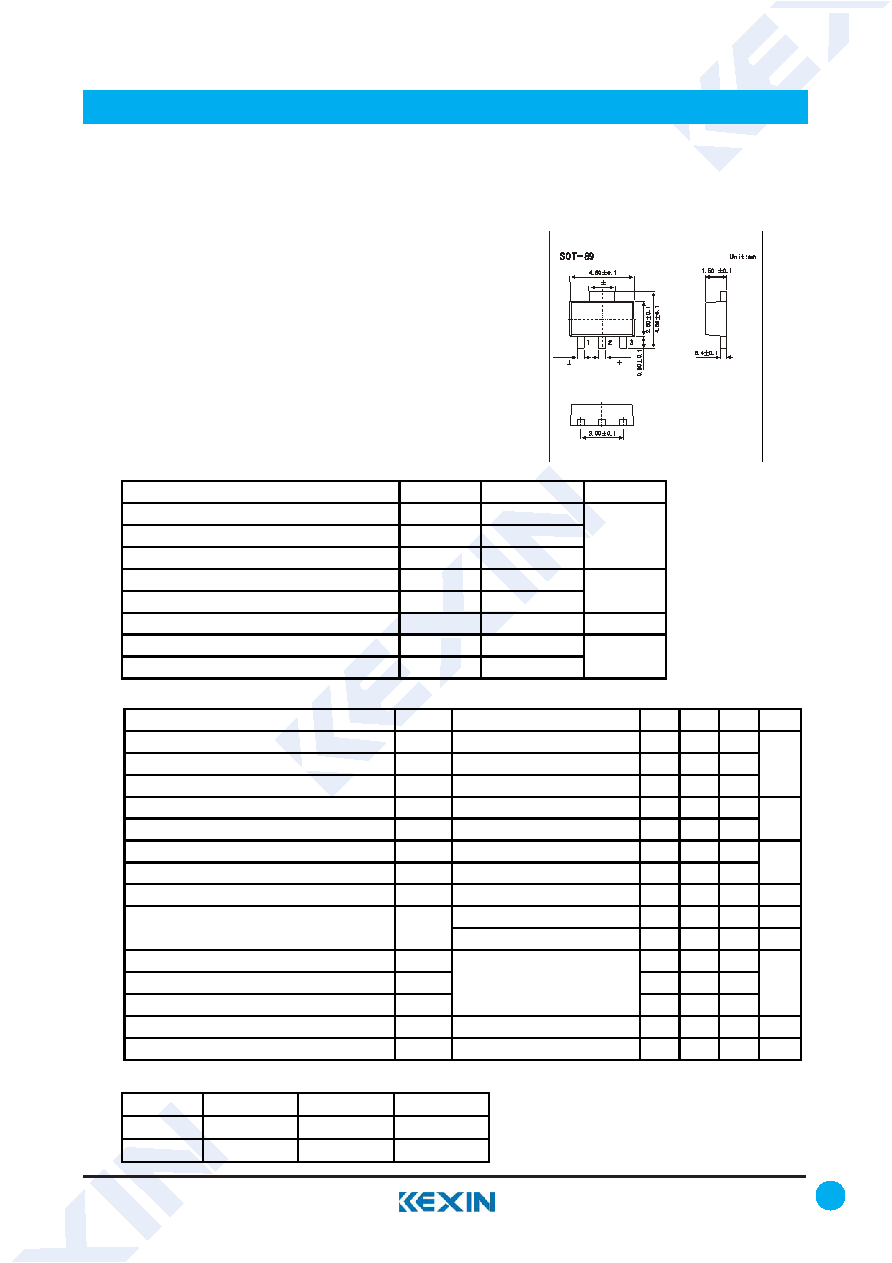

1 / 3 page  SMD Type www.kexin.com.cn 1 Transistors PNP Transistors 2SA1483 ■ Features ● High transition frequency ● Low collector output capacitance ● Complementary to 2SC3803 1.70 0.1 0.42 0.1 0.46 0.1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Unit Collector - Base Voltage VCBO -60 Collector - Emitter Voltage VCEO -45 Emitter - Base Voltage VEBO -5 Collector Current - Continuous IC -200 Base Current IB -50 Collector Power Dissipation PC 500 mW Junction Temperature TJ 150 Storage Temperature range Tstg -55 to 150 V ℃ mA ■ Electrical Characteristics Ta = 25℃ Parameter Symbol Test Conditions Min Typ Max Unit Collector- base breakdown voltage VCBO Ic= -100 μA， IE=0 -60 Collector- emitter breakdown voltage VCEO Ic= -0.5 mA，IB= 0 -45 Emitter - base breakdown voltage VEBO IE= -100μA， IC=0 -5 Collector-base cut-off current ICBO VCB= -45 V , IE=0 -0.1 Emitter cut-off current IEBO VEB= -5V , IC=0 -0.1 Collector-emitter saturation voltage VCE(sat) IC=-100 mA, IB=-10 mA -0.3 Base - emitter saturation voltage VBE(sat) IC=-100 mA, IB=-10 mA -1 Input impedance (real part) Re(hie) VCB= -10V, IE=10mA,f=200MHz 120 Ω VCE= -1V, IC= -10mA 40 240 VCE= -3V, IC= -200mA 20 Turn-on time ton 40 Storage time tstg 250 Fall time tf 30 Collector output capacitance Cob VCB= -10V, IE= 0,f=1MHz 3.5 5 pF Transition frequency fT VCE= -10V, IC= -10mA 100 200 MHz ns V uA V DC current gain hFE ■ Classification of hfe(1) See Test Circuit. 1.Base 2.Collector 3.Emitter Type 2SA1483-R 2SA1483-O 2SA1483-Y Range 40-80 70-140 120-240 Marking WR* WO* WY* |
