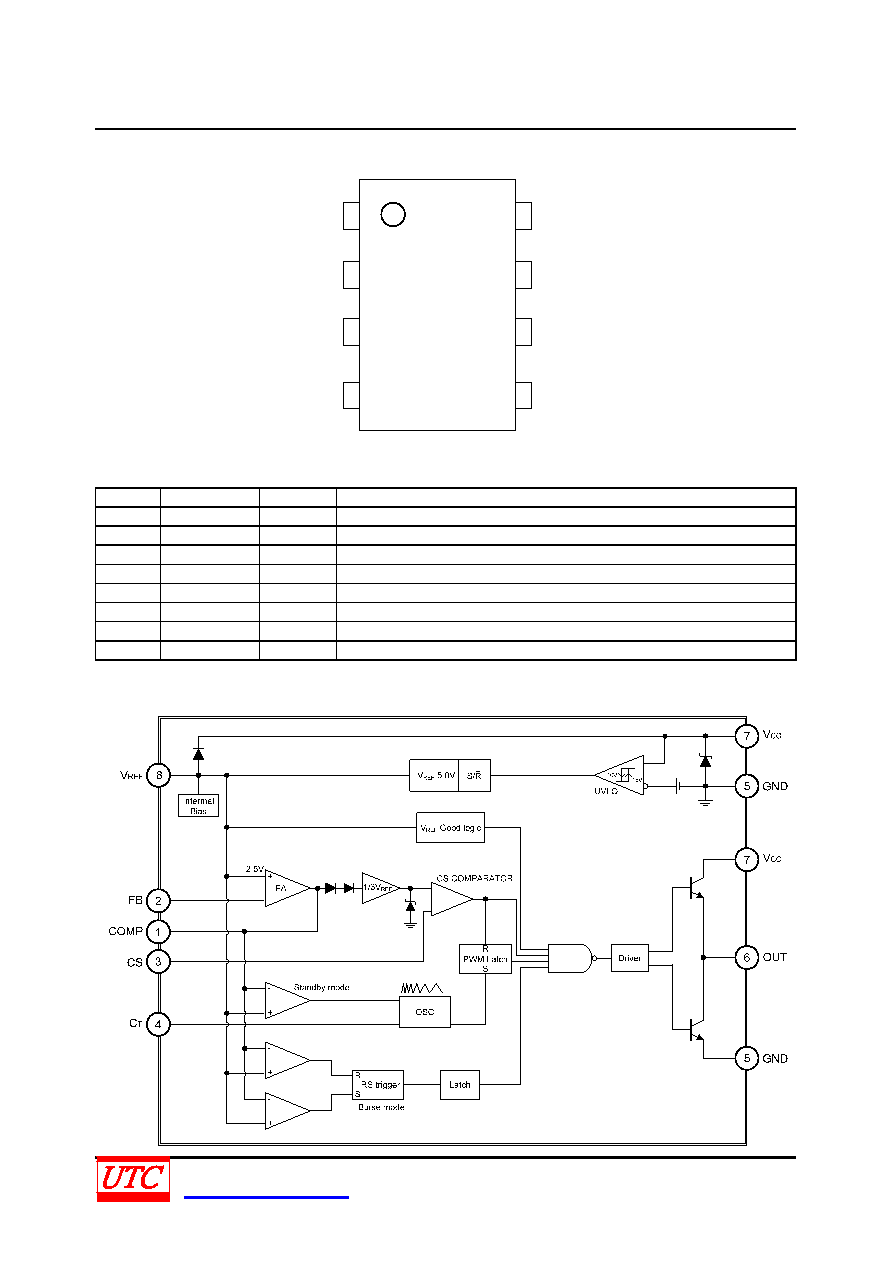

2 / 7 page ![]() UC3842G LINEAR INTEGRATED CIRCUIT UNISONICTECHNOLOGIESCO.,LTD 2 of 7 www.unisonic.com.tw QW-R103-036.D PIN CONFIGURATION GND OUT VCC VREF CT CS FB COMP 1 2 3 4 8 7 6 5 ■ PIN DESCRIPTION PIN NO. PIN NAME I/O Function 1 COMP O This pin is error amplifier output 2 FB I The error amplifier inverting input 3 CS I Current sense input 4 CT I The capacitor controlling switch frequency 5 GND Ground 6 OUT O Output to the gate of external power MOS 7 VCC Supply voltage 8 VREF O Inter 5V reference voltage output ■ BLOCK DIAGRAM |
|
|
