UPSL103G-AG6-R Datasheet(PDF) 2 Page - Unisonic Technologies

Part # UPSL103G-AG6-R
Description  HIGH POWER FACTOR ACCURACY CONSTANT CURRENT LED DRIVER
PDF  5 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  UTC [Unisonic Technologies]
Direct Link  http://www.utc-ic.com
Logo UTC - Unisonic Technologies

UPSL103G-AG6-R Datasheet(HTML) 2 Page - Unisonic Technologies

  UPSL103G-AG6-R Datasheet HTML 1Page - Unisonic Technologies UPSL103G-AG6-R Datasheet HTML 2Page - Unisonic Technologies UPSL103G-AG6-R Datasheet HTML 3Page - Unisonic Technologies UPSL103G-AG6-R Datasheet HTML 4Page - Unisonic Technologies UPSL103G-AG6-R Datasheet HTML 5Page - Unisonic Technologies
Zoom Inzoom in Zoom Outzoom out
 2 / 5 page
background image
UPSL103
Preliminary
LINEAR INTEGRATED CIRCUIT
UNISONICTECHNOLOGIESCO.,LTD
2 of 5
www.unisonic.com.tw
QW-R125-035.a
MARKING
L103G
12 3
4
5
6

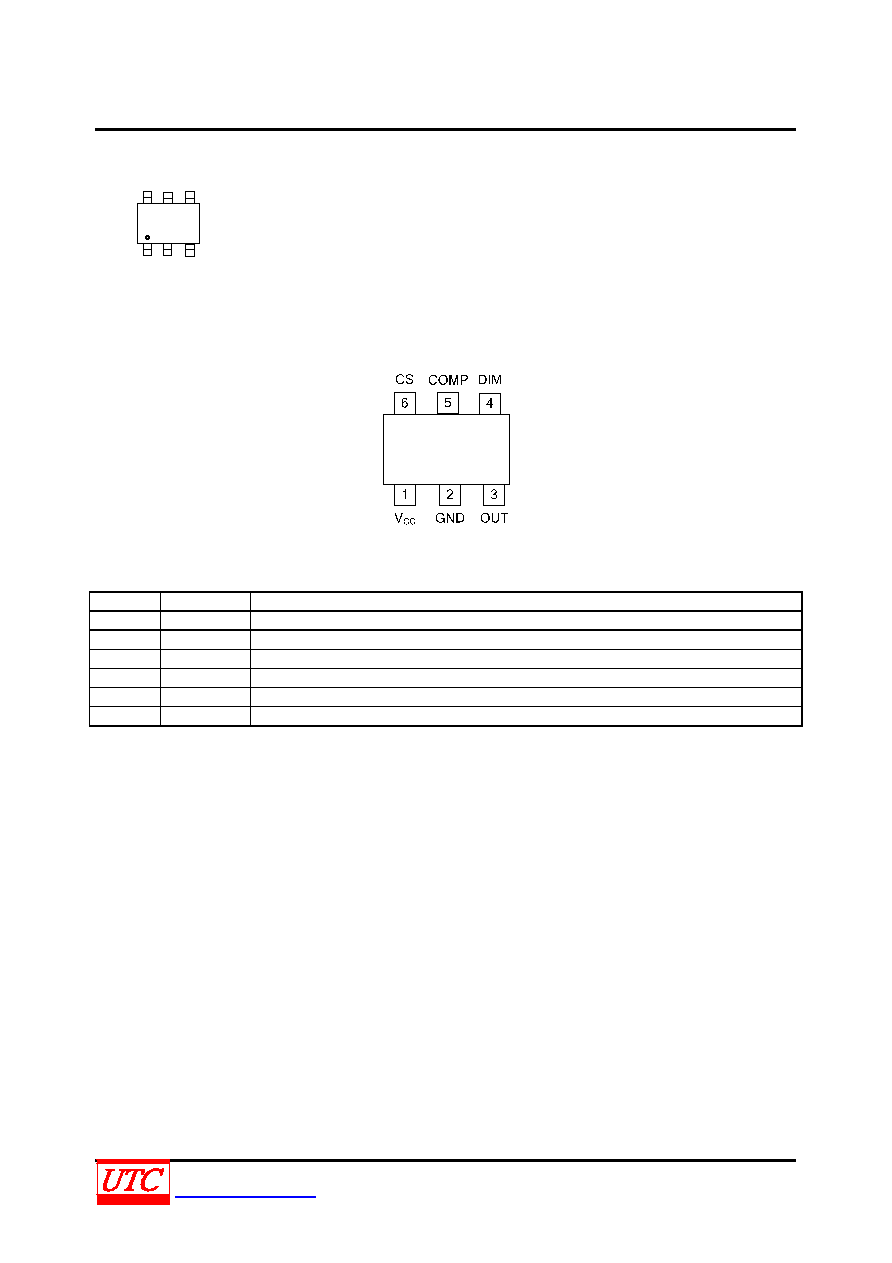

PIN CONFIGURATION
PIN DESCRIPTION
PIN NO.
PIN NAME
DESCRIPTION
1
VCC
Power supply pin of the chip.
2
GND
Ground pin of the chip.
3
OUT
Gate driver for external MOSFET switch
4
DIM
Dimming control pin by input a DC voltage
5
COMP
PWM loop compensation node
6
CS
Current sense pin, Connect to sense the MOSFET current
