SPEC NO: DSAO0994

REV NO: V.1B

DATE: JAN/06/2015

PAGE: 1 OF 6

APPROVED: WYNEC

CHECKED: Allen Liu

DRAWN: P.Cheng

ERP: 1201008993

2.2x1.4mm SURFACE MOUNT LED LAMP

ATTENTION

OBSERVE PRECAUTIONS

FOR HANDLING

ELECTROSTATIC

DISCHARGE

SENSITIVE

DEVICES

Part Number: AA2214ZGSK

Green

Features



2.2mm x 1.4mm, 1.3mm high.



Low power consumption.



Available on tape and reel.



Package : 2000pcs / reel.



Moisture sensitivity level : level 3.



RoHS compliant.

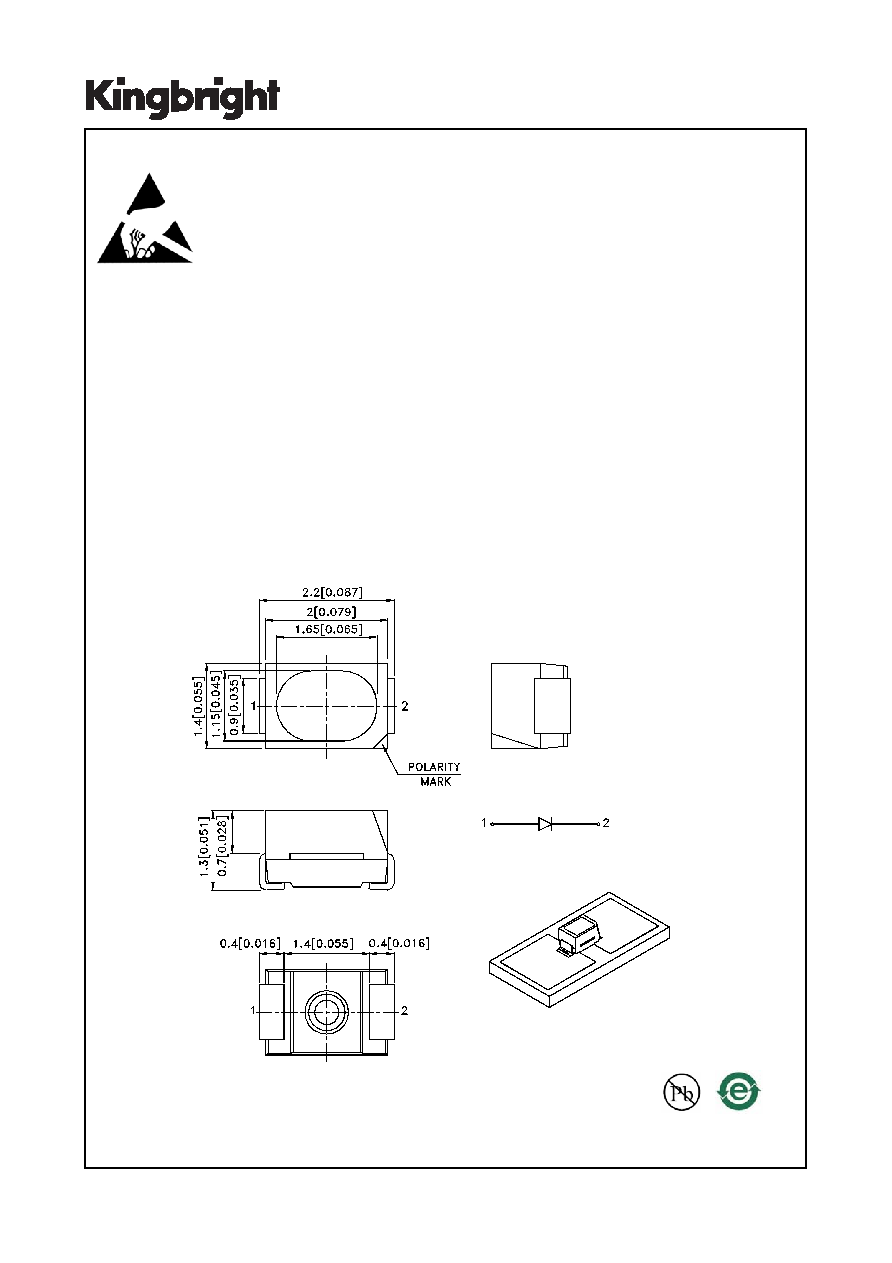

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ±0.2(0.008") unless otherwise noted.

3. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.

4. The device has a single mounting surface. The device must be mounted according to the specifications.

Descriptions



The Green source color devices are made with InGaN

on Sapphire Light Emitting Diode.



Electrostatic discharge and power surge could damage

the LEDs.



It is recommended to use a wrist band or anti-

electrostatic glove when handling the LEDs.



All devices, equipments and machineries must be

electrically grounded.
