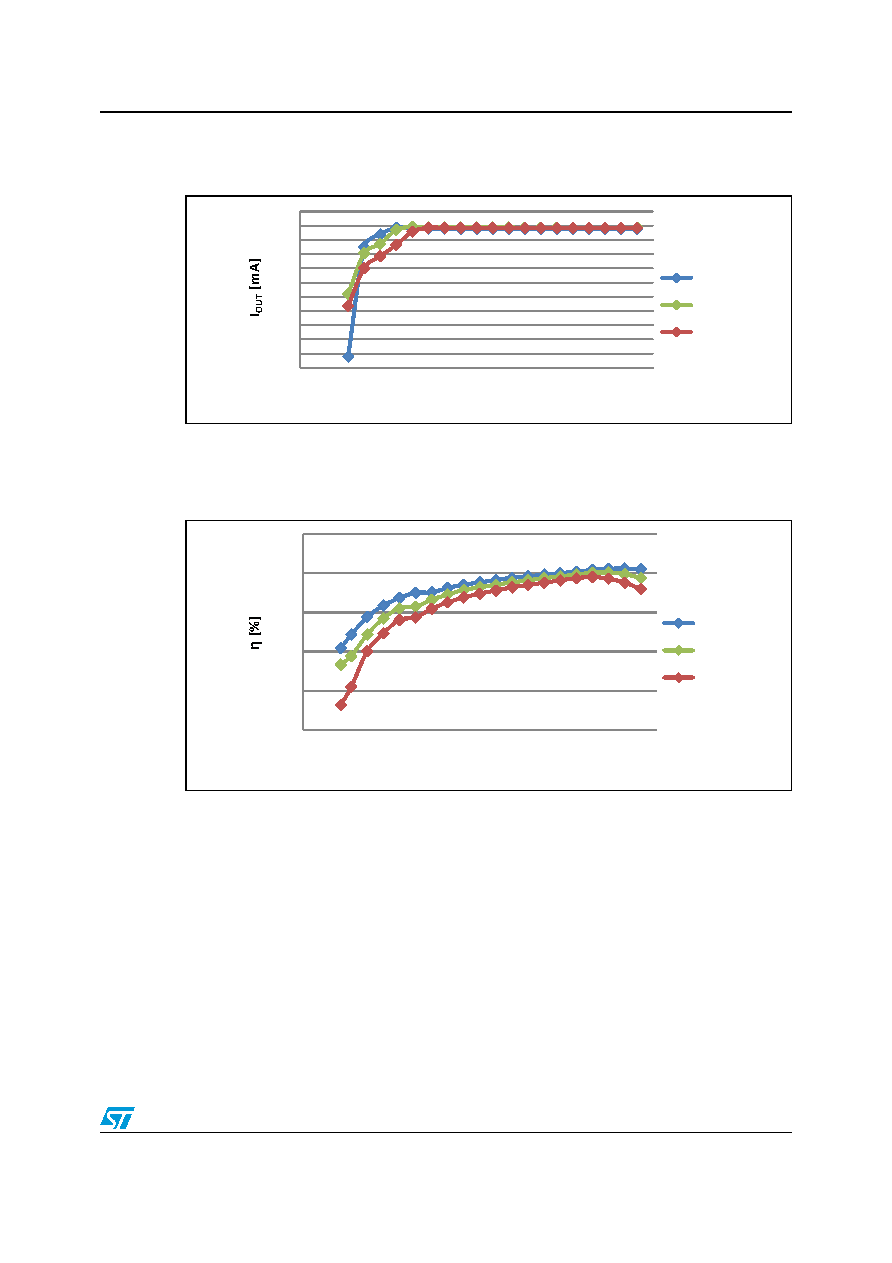

STLED25
Typical application performance
Doc ID 022323 Rev 3
11/30
5.3
Continuous output current
Figure 6.
Output current when VOUT = 8.5 V at different ambient temperatures
5.4
Efficiency at 100 mA IOUT
Figure 7.
Efficiency when IOUT = 100 mA at different ambient temperatures
AM09924v1
0
10
20
30
40
50
60
70
80
90
100
110
1.5 1.9 2.3 2.7 3.1 3.5 3.9 4.3 4.7 5.1 5.5 5.9
VIN [V]
-30°C
25°C
85°C
AM09925v1
50
60
70
80
90
100
1.5 1.9 2.3 2.7 3.1 3.5 3.9 4.3 4.7 5.1 5.5 5.9
VIN [V]
-30°C
25°C
85°C
