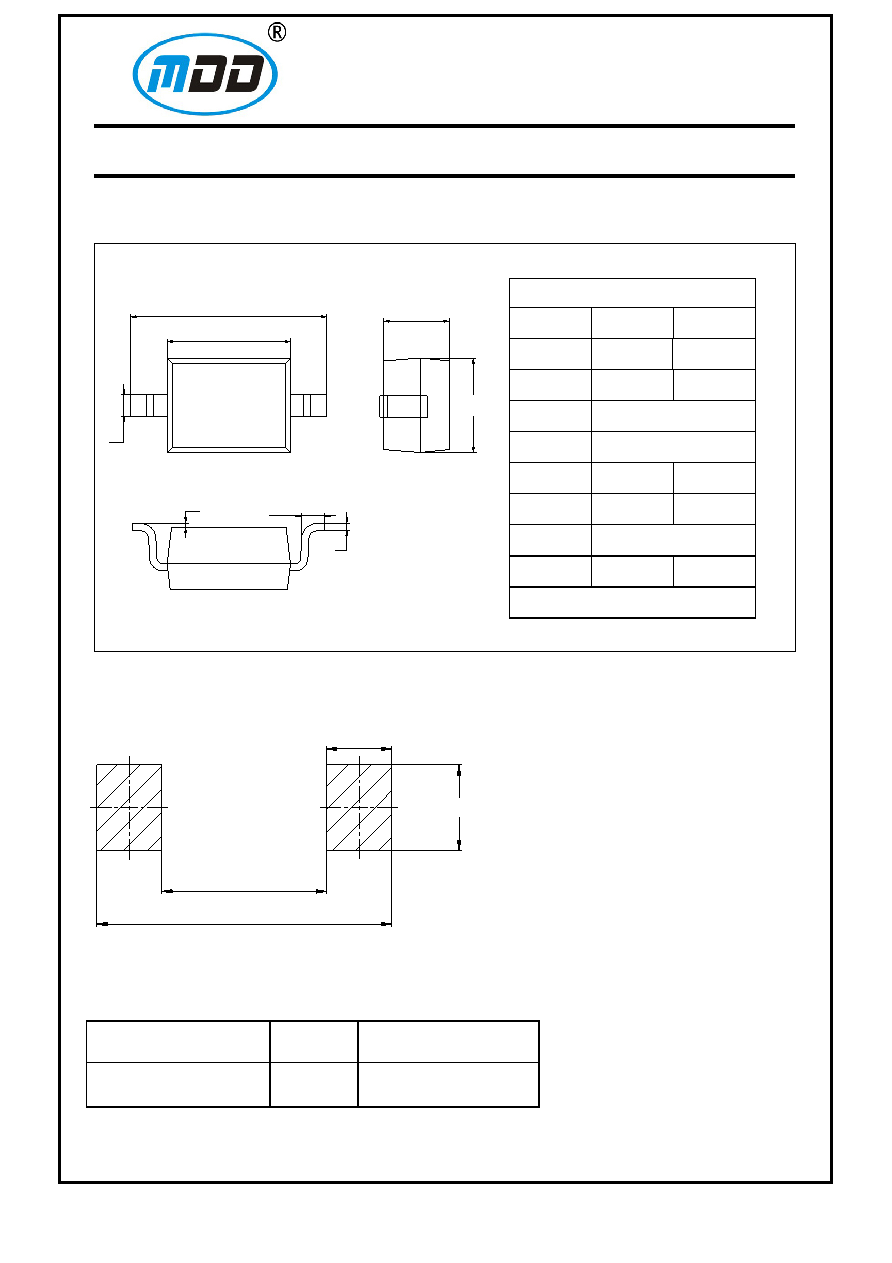

4 / 4 page  Silicon Epitaxial Planar Diode BAV19WS/BAV20WS/BAV21WS PACKAGE OUTLINE Plastic surface mounted package SOD-323 SOLDERING FOOTPRINT Unit ：mm PACKAGE INFORMATION Device Package Shipping BAV19WS/20WS/21WS SOD-323 3000/Tape&Reel SOD-323 Dim Min Max A 1.60 1.80 B 1.20 1.40 C 0.9 Max D 0.30 Typical E 0.22 0.42 H 0.02 0.1 J 0.1 Typical K 2.55 2.75 All Dimensions in mm 1.60 0.63 0.83 2.85 D A K C B H J E ２０１４－０３ ０１版 ｈｔｔｐ：／／ｗｗｗ．ｍｉｃｒｏｄｉｏｄｅ．ｃｏｍ |
|
|
