TS431
Taiwan Semiconductor
Document Number: DS_P0000235
6
Version: H15
APPLICATIONS EXAMPLES (CONTINUE)
Vin
Vout
<Vref
V+
>Vref
≈0.74V

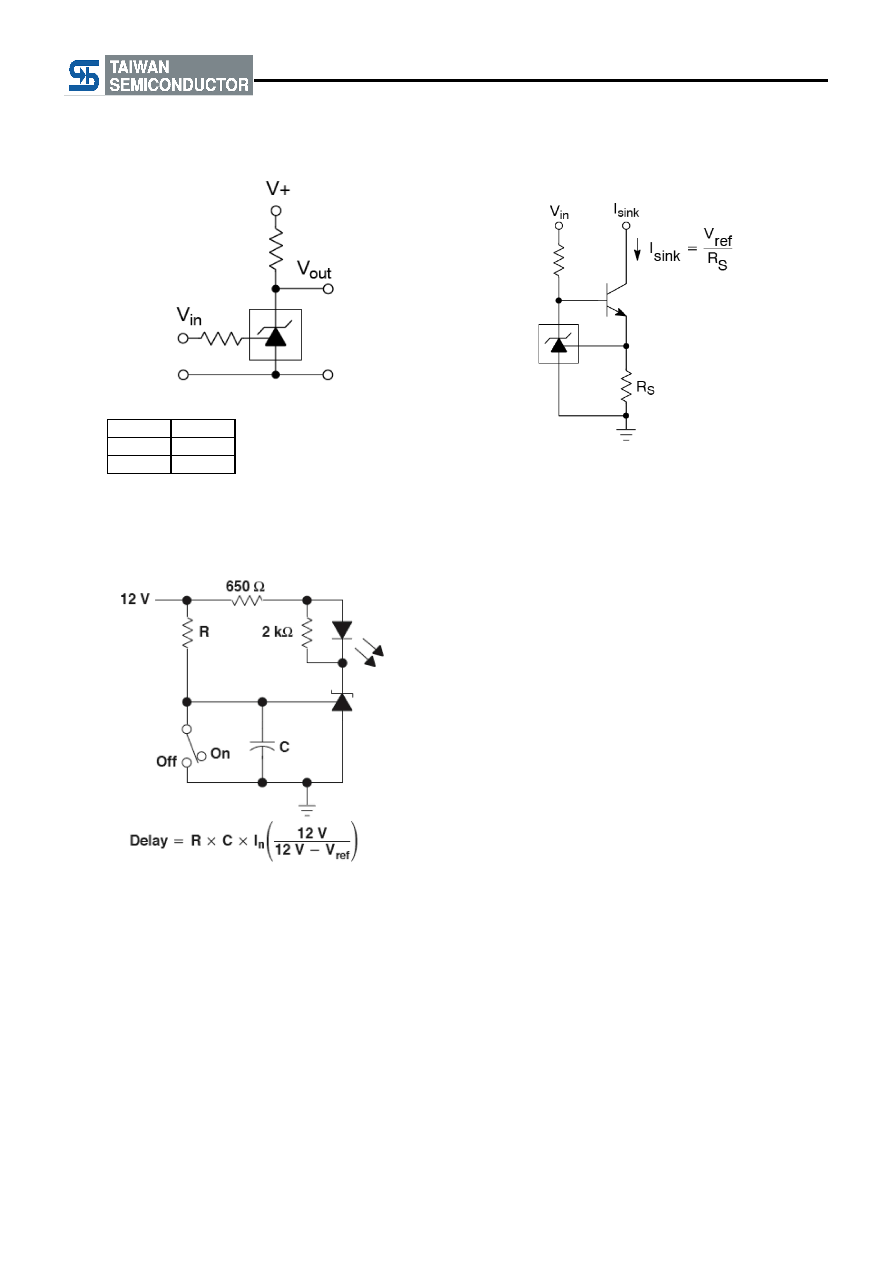

Figure 9. Single-Supply Comparator with
Temperature-Compensated Threshold
Figure 10. Constant Current Sink
Figure 11. Delay
Timer
