7 / 13 page

TS431

Taiwan Semiconductor

Document Number: DS_P0000235

Version: H15

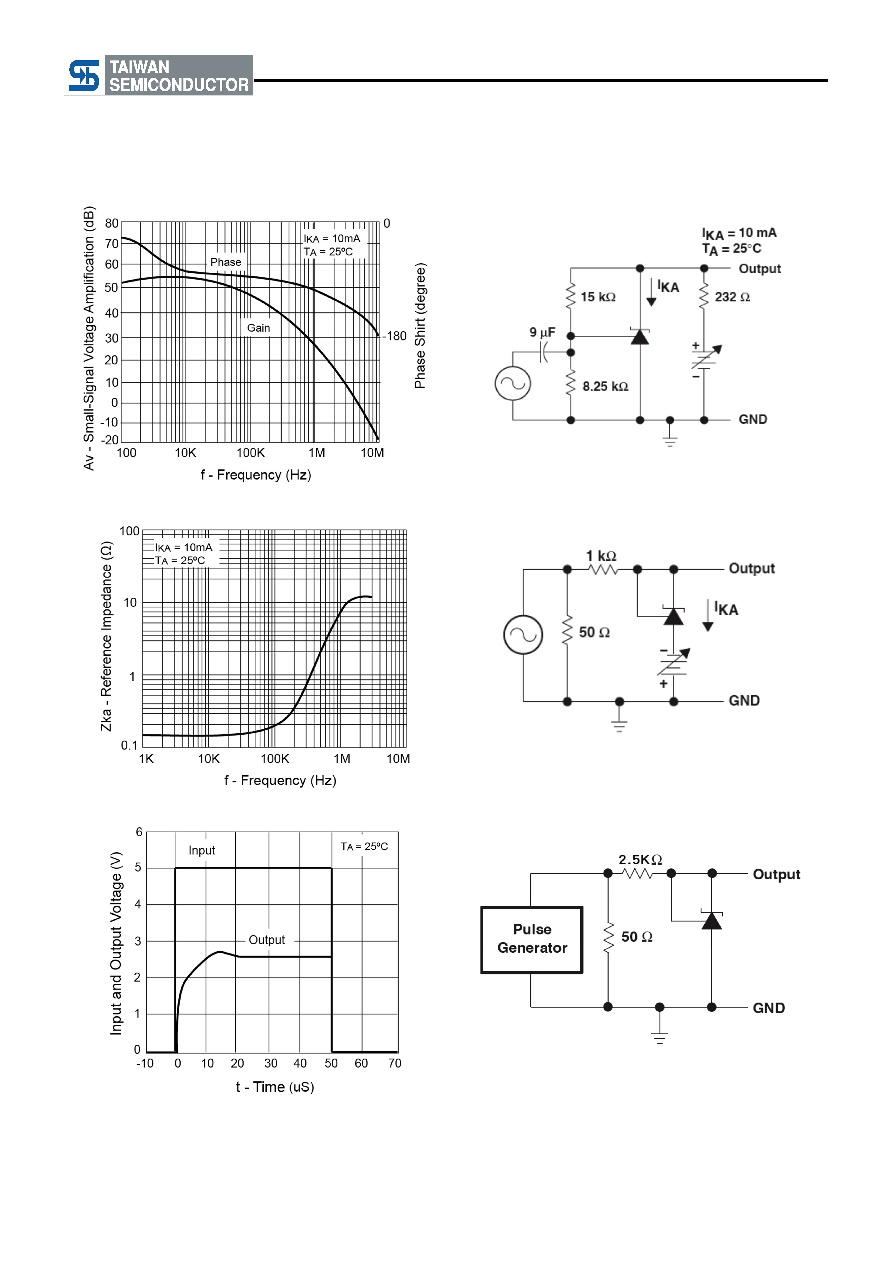

TYPICAL PERFORMANCE CHARACTERISTICS

Test Circuit for Voltage Amplification

Figure 12. Small-Signal Voltage Gain and Phase Shirt vs. Frequency

Test Circuit for Reference Impedance

Figure 13. Reference Impedance vs. Frequency

Test Circuit for Pulse Response, Ik=1mA

Figure 14. Pulse Response
