MLF2012 Type

ELECTRICAL CHARACTERISTICS

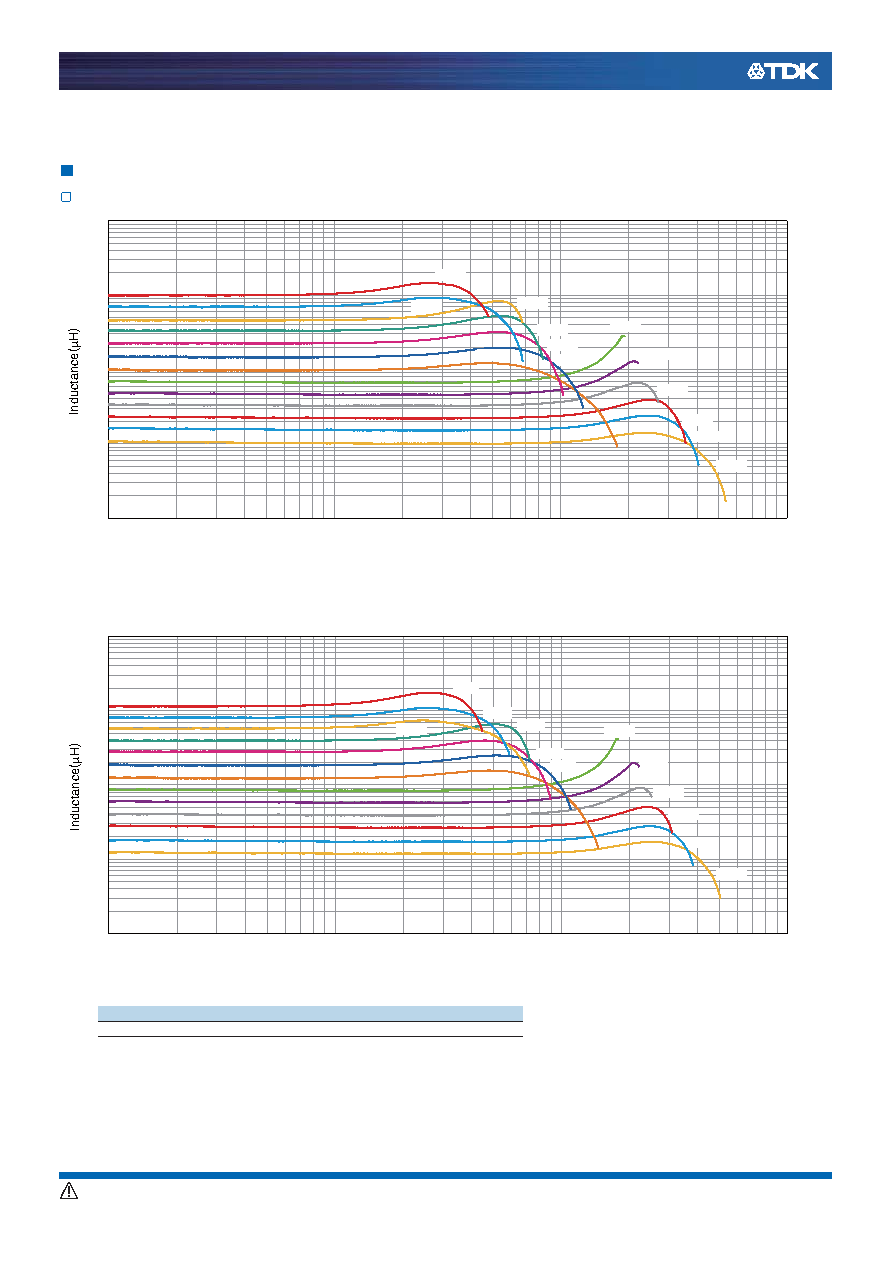

L FREQUENCY CHARACTERISTICS GRAPH

○ Measurement equipment

＊ Equivalent measurement equipment may be used.

1

10

100

1000

0.01

100

10

1

0.1

Frequency(MHz)

E100

DR68

DR47

DR33

DR22

DR15

DR10

E6R8

A4R7

A3R3

A2R2

A1R5

A1R0

1

10

100

1000

0.01

100

10

1

0.1

Frequency(MHz)

E120

E8R2

E5R6

A3R9

A2R7

A1R8

DR82

DR56

DR39

DR27

DR18

DR12

A1R2

Product No.

Manufacturer

E4991A+16192A

Agilent Technologies
