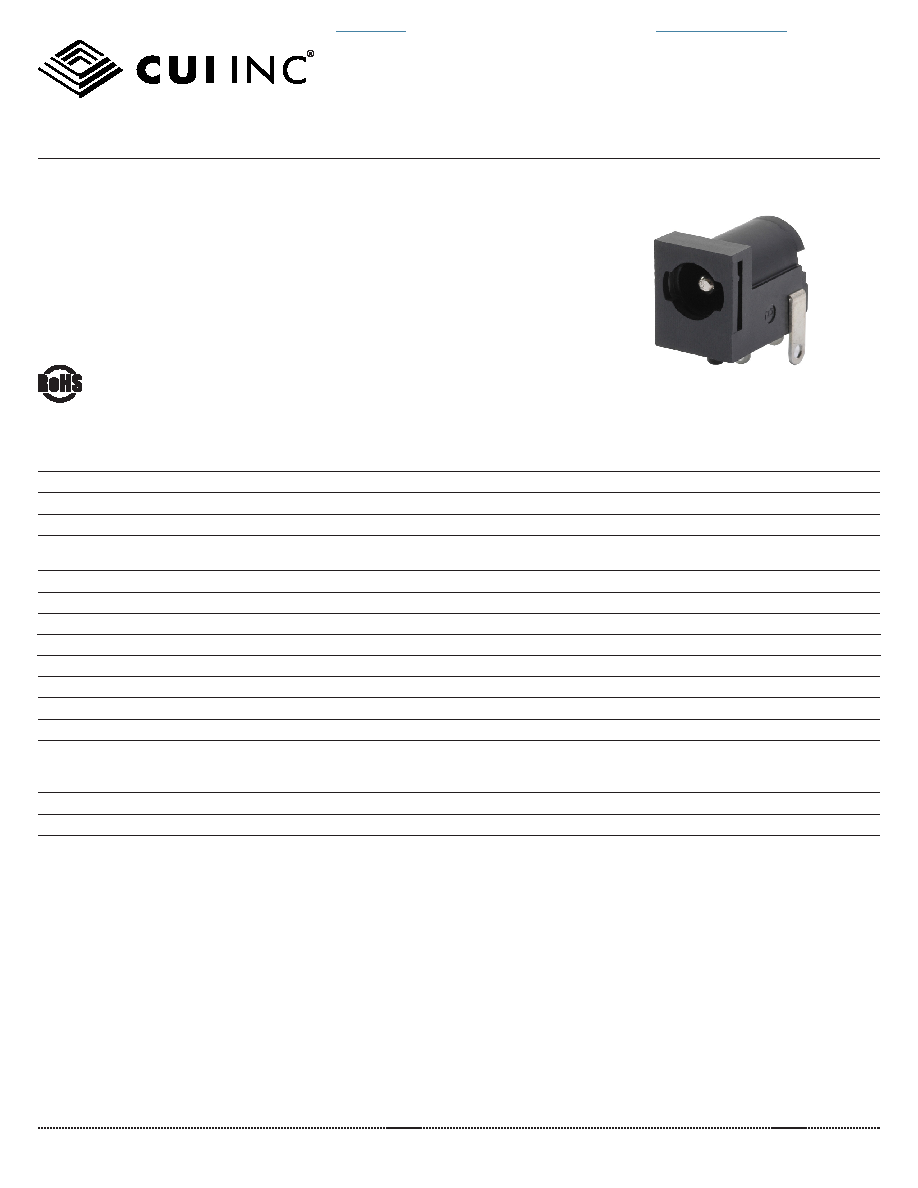

MODEL: PJ-059A

│ DESCRIPTION: DC POWER JACK

FEATURES

• 2.0 mm center pin

• 2.5 A rating

• right-angle orientation

• through hole

• locking type

• tapered pins

SPECIFICATIONS

parameter

conditions/description

min

typ

max

units

rated input voltage

24

Vdc

rated input current

2.5

A

between terminal and mating plug

between terminal in a closed circuit

50

30

mΩ

mΩ

insulation resistance

at 500 Vdc

100

MΩ

voltage withstand

at 50/60Hz for 1 minute

500

Vac

insertion/withdrawal force

0.3

3

kg

terminal strength

any direction for 10 seconds

500

g

operating temperature

-25

85

°C

life

5,000

cycles

flammability rating

UL94V-0

RoHS

2011/65/EU

Note:

1. When measured at a current of less than 100 mA/1 kHz

SOLDERABILITY

parameter

conditions/description

min

typ

max

units

wave soldering

dipped in solder pot for 5 ±0.5 seconds

255

260

265

°C
