SMD

SMD Power Inductor

Power Inductor

104CDMCC/DS

Page 1 of 5

Revised: 25-May-16

Description

• Metal compound molding type construction.

• Magnetically shielded.

• Low audible core noise.

• Suitable for large current.

• L

×W×H: 11.5×10.3×4.0 mm Max.

• Product weight:2.2 g (Ref.)

• Moisture Sensitivity Level: 1

• RoHS compliance.

• Halogen Free available.

Environmental Data

• Operating temperature range: -55

℃～+125℃

(including coil’s self temperature rise)

• Storage temperature range: -55

℃～+125℃

• Solder reflow temperature: 260

℃ peak.

Packaging

• Carrier tape and reel packaging.

• 500pcs per reel.

Applications

• Ideally used in notebook, ultrabook, tablet PC,

LCD display, Server application.

• High current, POL converters.

• Low profile, high current power supplies.

• Battery powered devices.

• DC/DC converters in distributed power

systems.

RoHS

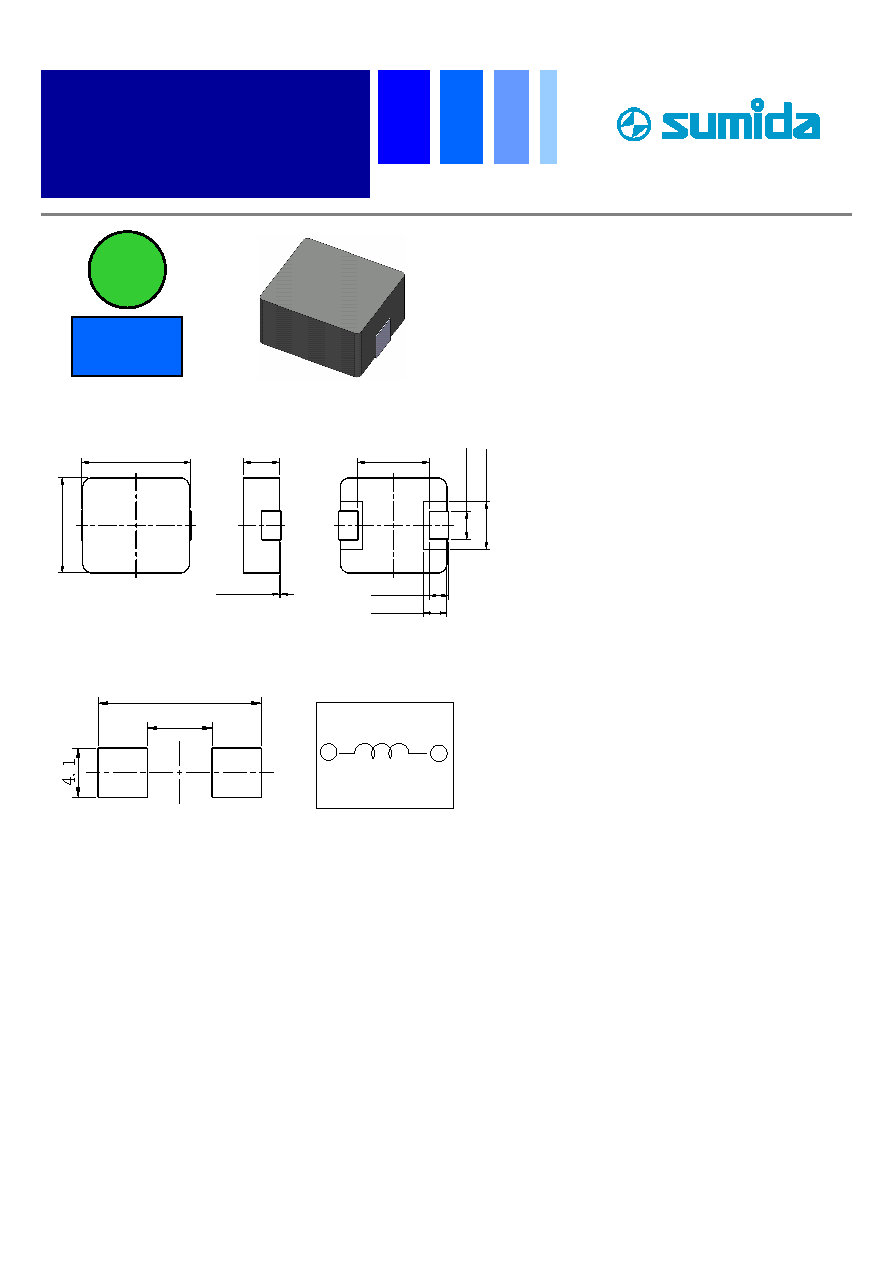

Dimension - [mm]

Land pattern and Schematics - [mm]

Halogen

Free

13.6

5.4

5.

0±

0.

2

2.

9±

0.

3

11.5 Max.

10

.0

±

0.

3

0～0.15

3.8±0.2

2.5±0.1

2.0±0.5

7.5
