ASPI - 0602S
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
ABRACON IS
ISO 9001 : 2008
CERTIFIED
30332 Esperanza, Rancho Santa Margarita, California92688
tel 949-546-8000 | fax 949-546-8001| www.abracon.com
Revised: 07.02.14
Visit www.abracon.com for Terms & Conditions of Sale

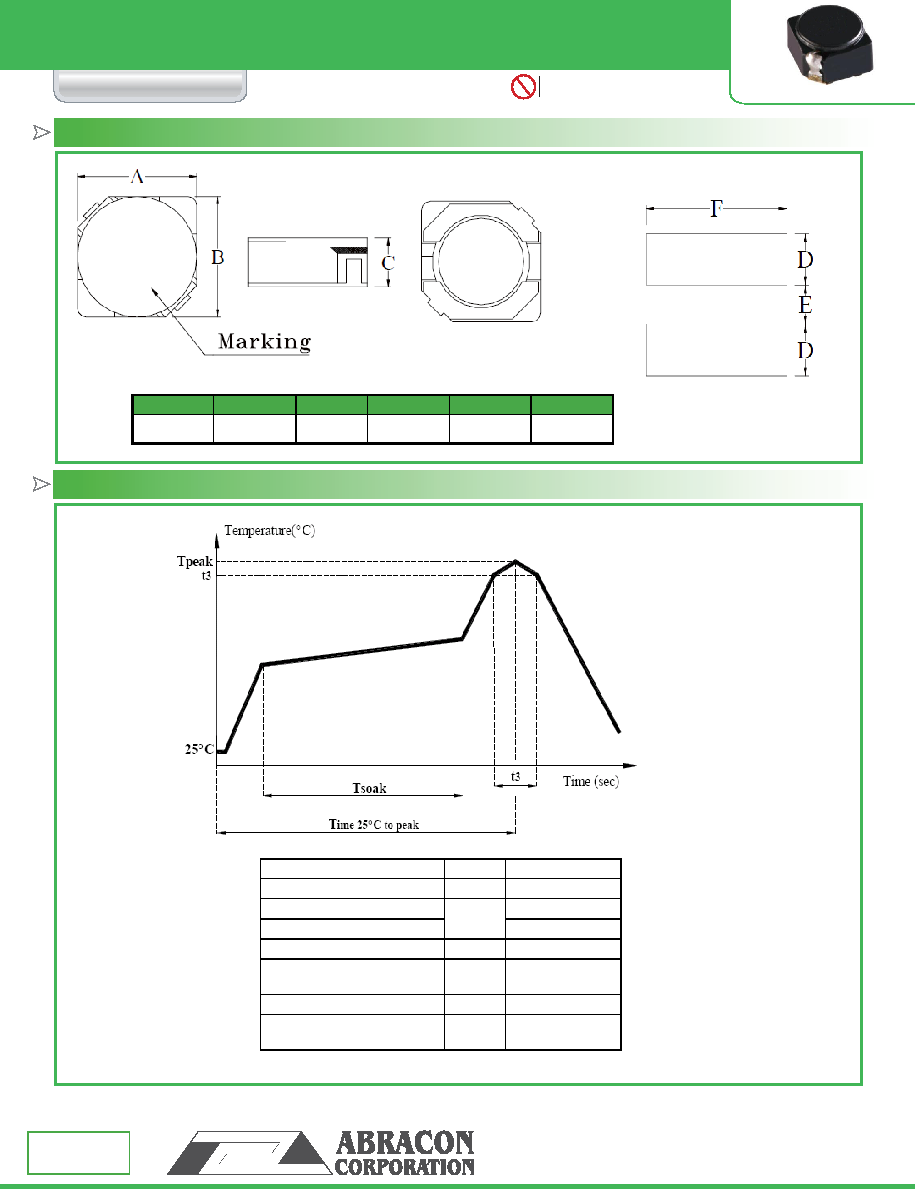

SMD SHIELDED POWER INDUCTOR
OUTLINE DIMENSION:
6.7 x 6.7 x 3.0mm
Pb RoHS / RoHS II Compliant
Recommended Land Pattern
Dimension: mm
A
B
C
D
E
F
6.7±0.3
6.7±0.3
3.0 max.
2.65
2.00
7.30
Item
mark
product
Temperature rise gradient
3°C /sec (max)
Heating time
Tsoak
50s
∼ 150s
Heating temperature
120°C
∼180°C
Time over 217°C
t1
90 sec
Time within 5°Cof actual
peak temperature
t3
10
∼30 sec
Peak temperature
Tpeak
255 ~ 260 °C
Time 25°Cto peak
Temperature
6 minutes max.
REFLOW PROFILE:
