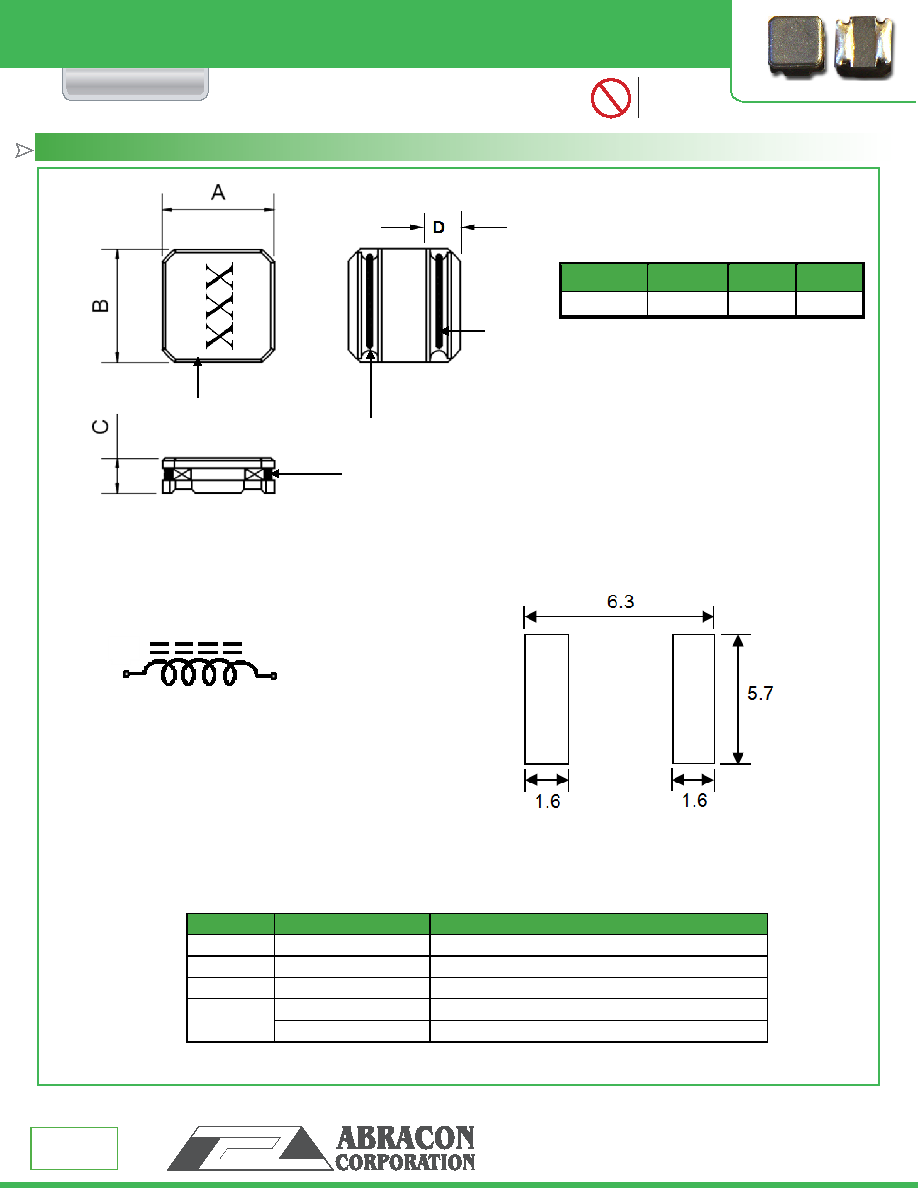

OUTLINE DRAWING:

ASPI-0628

RoHS

Compliant

30332 Esperanza, Rancho Santa Margarita, California 92688

Revised: 03.16.12

Visit www.abracon.com for Terms & Conditions of Sale

6.0 x 6.0 x 2.8mm

Pb

ABRACON IS

ISO9001:2008

CERTIFIED

LOW PROFILE SHIELDED SMD CHIP POWER INDUCTOR

:

Dimension: mm

No

Part Name

Material

1

Ferrite core

Ni-Zn Ferrite

2

Terminals

Ag/Ni/Sn

3

Coil

Cu/P180 Grd 1

4

Adhesive

Silicon Base Resin

Magnetic Powder Ni-Zn Ferrite

1

2

3

4

Materials

Circuit Schematic

Recommended Land Pattern

No Polarity

A

B

C Max.

D Typ.

6.0±0.2

6.0±0.2

2.8

1.50
