ASPI-1338-R22 datasheet(3/3 Pages) ABRACON

3 / 3 page

LOW PROFILE HIGH CURRENT SMD

SHIELDED POWER INDUCTOR

|||||||||| | | | | |

ASPI-1338

Pb RoHS

Compliant

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

ABRACON IS

ISO 9001:2008

CERTIFIED

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000 | fax 949-546-8001| www.abracon.com

Revised: 04.12.12

Visit www.abracon.com for Terms & Conditions of Sale

12.9 x 13.8 x 3.8mm

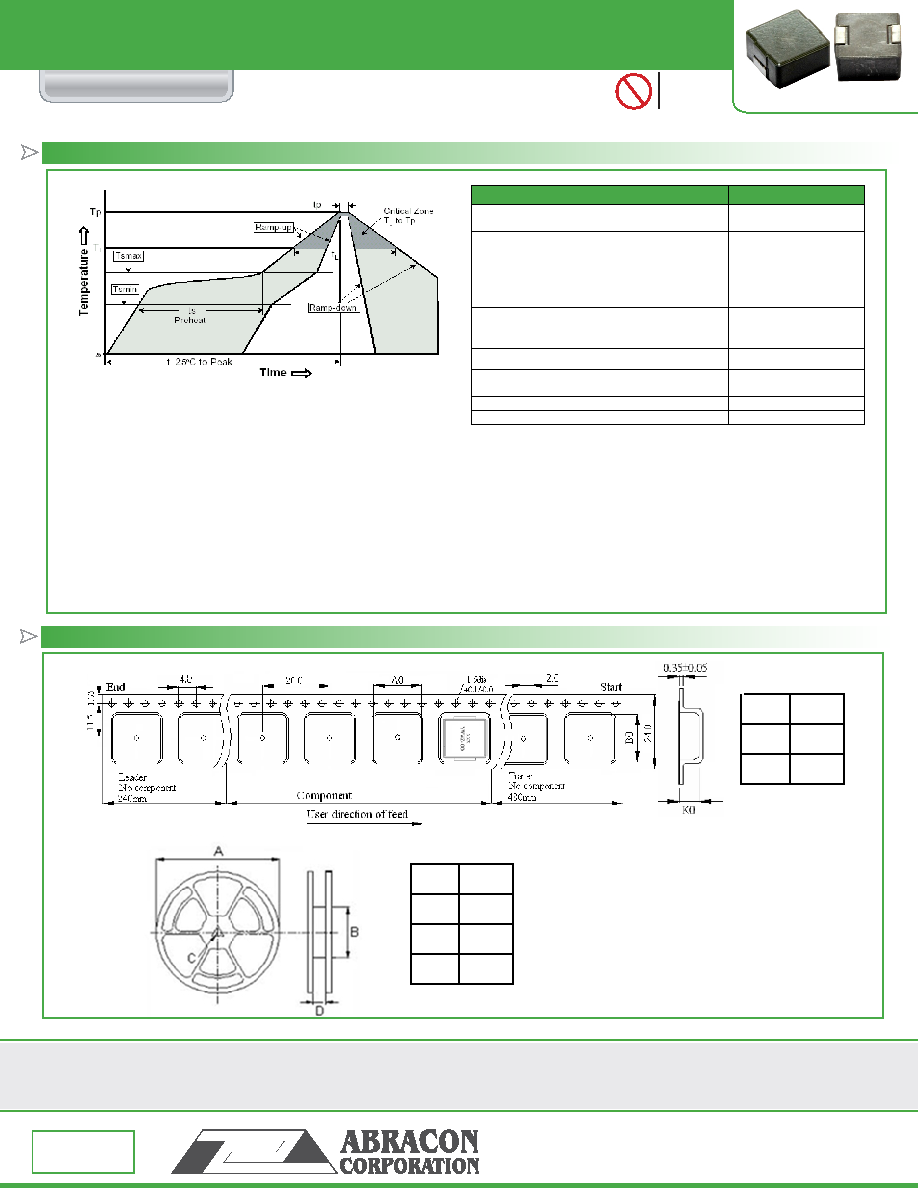

REFLOW PROFILE:

Storage Conditions and Handling

(1) Temperature and humidity conditions : less than 40oC and 70% RH.

(2) Products should be used within 6 months.

(3) The packaging material should be kept where no chlorine or sulfur exists in the air.

(4) Do not touch the electrodes (soldering terminals) with fingers as this may lead to deterioration of solder

ability

(5) The use of tweezers or vacuum pick-ups is strongly recommended for individual components.

(6) Bulk handling should ensure that abrasion and mechanical shock are minimized.

Profile Feature

Assembly

Average Ramp-Up Rate

(Ts max to Tp)

3°C /second max.

Preheat

-Temperature Min (Ts min)

-Temperature Max (Ts max)

-Time (ts min to ts max)

150°C

200°C

60-180 seconds

Time maintained above:

-Temperature (TL)

-Time (tL)

217°C

60-150 seconds

Peak/Classification Temperature (Tp)

245+0°C

Time within 5°C of actual Peak

Temperature (tp)

20-40 seconds

Ramp-Down Rate

6°C/seconds max

Time 25°C to Peak Temperature

8 minutes max.

Dimension: mm

13.2

13.8

4.0

330

100

13.5

TAPE & REEL:

ATTENTION: Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications.

Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component

failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from

Abracon Corporation is required. Please contact Abracon Corporation for more information.

T: 500pcs/Reel
