ADP5070

Data Sheet

Rev. A | Page 22 of 27

COMMON APPLICATIONS

Table 9 through Table 11 list a number of common component

selections for typical VIN and VOUT conditions. These have been

bench tested and provide an off the shelf solution. Note that when

pairing a boost and inverting regulator bill of materials, choose

the same VIN and switching frequency. To optimize components

for an application, it is recommend to use the ADIsimPower

toolset.

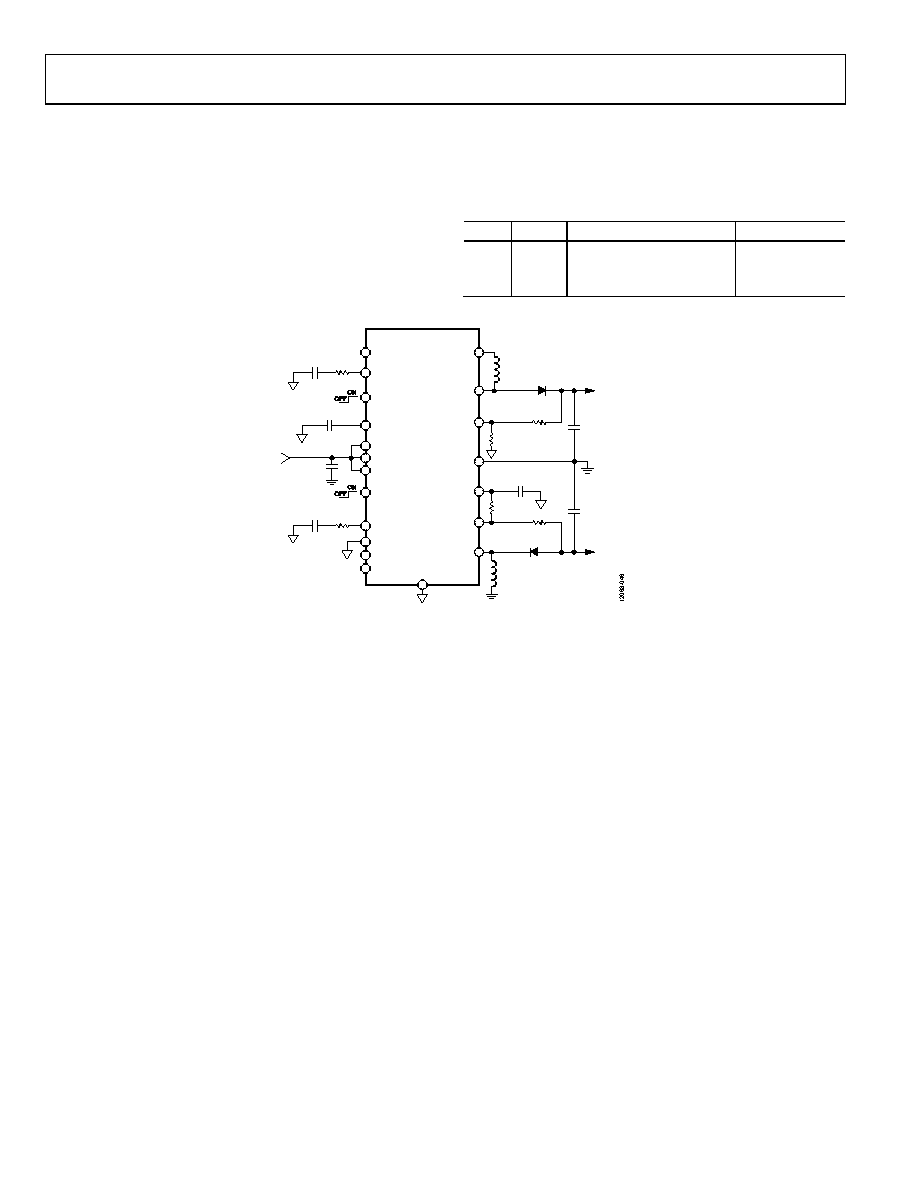

Figure 47 shows the schematic referenced by Table 9 through

Table 11 with example component values for +5 V to ±15 V

generation. Table 9 shows the components common to all of the

VIN and VOUT conditions.

Table 9. Recommended Common Components Selections

REF

Value

Part Number

Manufacturer

CIN1

10 µF

TMK316B7106KL-TD

Taiyo Yuden

CVREG

1 µF

GRM188R71A105KA61D

Murata

CVREF

1 µF

GRM188R71A105KA61D

Murata

ADP5070

INBK

SW1

COMP1

RC1

12kΩ

CC1

47nF

COMP2

RC2

15kΩ

CC2

68nF

CVREG

1µF

VREG

EN1

SYNC/FREQ

SLEW

SEQ

EN2

AGND

PVIN1

PVIN2

PVINSYS

CIN1

10µF

VIN

+5V

FB1

DFLS240

6.8µH

15µH

RFB1

137kΩ

RFT1

2.43MΩ

VPOS

+15V

SW2

PGND

FB2

VREF

DFLS240

RFB2

118kΩ

VNEG

–15V

CVREF

1µF

COUT1

10µF

COUT2

10µF

RFT2

2.32MΩ

Figure 47. Typical +5 V to ±15 V Application
