EB2 SERIES

DATA SHEET ER0016EJ5V0DS00

PART NUMBER SYSTEM

EB2 - 5 S NUH - L

EB2 series

Nominal voltage

3, 4.5, 5, 6, 9, 12, 24 volts

Latch type

Nil : Non latch type

S : Single coil latch type

T : Double coil latch type

Packaging code

Nil : Tube type

: Embossd carrying type (L type)

R : Embossd carrying type (R type)

Feature

Nil

: Standard type

: UL recognized, CSA certified standard type

NUH : Minimum footprint type ∗

NUE : Low profile type ∗

NUL : Ultra-low profile type ∗

∗ UL recognized, CSA certified type

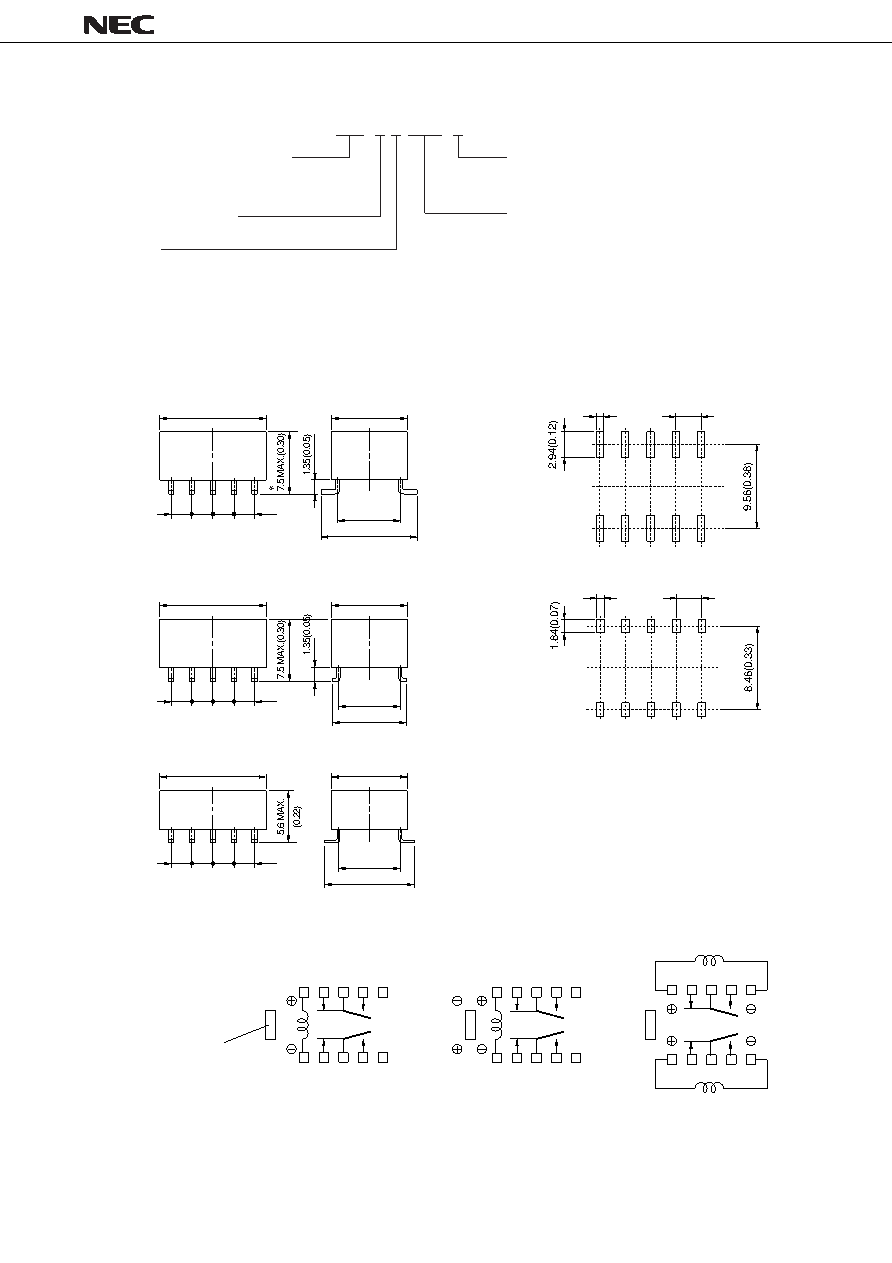

OUTLINE DRAWINGS AND DIMENSIONS

PAD LAYOUTS (bottom view)

14.3 MAX.(0.56)

9.3 MAX.(0.37)

14.3 MAX.(0.56)

9.3 MAX.(0.37)

11.5(0.45)

7.62(0.30)

9.3(0.37)

7.62(0.30)

2.54

(0.1)

2.54

Note. General tolerance:

±0.2 (±0.008)

∗ Relay hight of NUE TYPE – 6.5 mm (0.26) MAX. (Initial)

Note. General tolerance:

±0.1 (±0.004)

2.54

(0.1)

2.54

EB2-..NUH

EB2-..

EB2-..NU

EB2-..NUE

Unit: mm (inch)

EB2-..NUH

EB2-..

EB2-..NU

EB2-..NUE

EB2-..NUL

Unit: mm (inch)

2.54(0.1)

1.0(0.04)

2.54(0.1)

1.0(0.04)

14.3 MAX.(0.56)

9.3 MAX.(0.37)

11.5 (0.45)

7.62 (0.30)

2.54

(0.1)

2.54

EB2-..NUL

PIN CONFIGURATIONS (bottom view)

10 9

Index mark of relay derection

Non-latch type

(not energized position)

Single coil latch type

(reset position)

S : Coil polarity of set (operate)

R : Coil polarity of reset (release)

Double coil latch type

(reset position)
